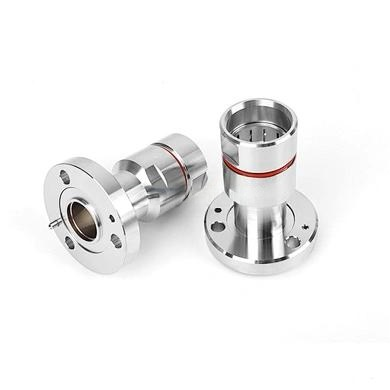

Understanding the 7/8″ EIA Flange Connector: The MOP-EIA-78-CF78
nnWhen it comes to high-power RF transmission, few components are as critical as the interface between your antenna cable and the base station. The 7/8″ EIA Flange Connector model MOP-EIA-78-CF78 is designed to bridge that gap with exceptional reliability, whether you are working with Andrew LDF5-50A or RFS LCF78-50A cable families. This connector combines rugged mechanical construction with outstanding electrical performance, making it a top choice for demanding telecom and broadcast applications.nn
Exceptional Electrical Performance in the 7/8″ EIA Flange Connector
nnThe electrical characteristics of this connector are where it truly shines. With a characteristic impedance of 50 ohms, it is perfectly matched for standard RF systems. The frequency range spans from DC all the way to 5 GHz, providing versatility for both legacy and modern equipment. One of the most impressive specifications is the Voltage Standing Wave Ratio (VSWR), which is ≤1.07 from DC to 1000 MHz. This low VSWR minimizes signal reflection, ensuring that the maximum amount of power reaches the antenna.nnInsertion loss is typically ≤0.05 dB, a figure that speaks to the precision engineering inside the connector. For high-power applications, the dielectric withstanding voltage is rated at ≥6000 V RMS at 50 Hz at sea level, while dielectric resistance is ≥5000 MΩ. The average power handling is 2.3 kW at 900 MHz, but the peak power maximum jumps to an incredible 90 kW, suitable for pulsed radar or high-peak transmission systems. Contact resistance is kept exceptionally low, with both center and outer contacts rated at ≤1.5 mΩ, ensuring minimal energy loss at the junction point.nn
Mechanical Durability and Environmental Suitability
nnDurability is not an afterthought with the 7/8″ EIA Flange Connector. The connector is rated for at least 500 mating cycles, which is critical for installations that may require periodic disconnection for maintenance or reconfiguration. The weatherproof rating is IP67, meaning it is fully protected against dust ingress and can withstand temporary immersion in water, making it ideal for outdoor tower installations.nnOperating temperature ranges from -45°C to 85°C, covering extreme environments from arctic winters to desert heat. Compliant with RoHS directive 2002/95/EC, the connector meets environmental safety standards for restricted hazardous substances.nn
| Parameter | Value/Specification |
|---|---|
| Model No. | MOP-EIA-78-CF78 |
| Interface | 7/8″ EIA Flange / CECC 22150 |
| Impedance | 50 ohm |
| Frequency Range | DC – 5 GHz |
| VSWR | ≤1.07 @ DC-1000 MHz |
| Insertion Loss | ≤0.05 dB (typical) |
| Dielectric Withstanding Voltage | ≥6000 V RMS, 50 Hz, sea level |
| Dielectric Resistance | ≥5000 MΩ |
| Average Power | 2.3 kW @ 900 MHz |
| Peak Power Maximum | 90 kW |
| Center Contact Resistance | ≤1.5 mΩ |
| Outer Contact Resistance | ≤1.5 mΩ |
| Mechanical Durability | ≥500 mating cycles |
| Operating Temperature | -45°C to 85°C |
| Weatherproof Rate | IP67 |
| RoHS Compliance | 2002/95/EC |
| Suitable Cable Family | Andrew LDF5-50A and RFS LCF78-50A |
nn
Material Construction and Plating Details
nnThe materials used in this 7/8″ EIA Flange Connector are chosen for longevity, conductivity, and corrosion resistance. The body is made from brass with a nickel plating, offering a robust outer shell. The insulator is PTFE (Teflon), which provides excellent dielectric properties and withstands high temperatures. The inner conductor is phosphor bronze, plated with silver (Ag) for superior electrical conductivity. The coupling nut is also brass with nickel plating, ensuring smooth mating. A gasket made of silicone rubber provides the environmental seal, while the cable clamp is brass with nickel plating. The hardware kit, which includes bolts, nuts, and washers, is made from stainless steel to prevent rust and corrosion over the life of the installation.nn
Why This Connector Stands Out for RF Professionals
nnFor RF engineers and installers, the 7/8″ EIA Flange Connector represents a trusted solution for high-power, low-loss transmission lines. Whether you are upgrading a cellular base station, deploying a broadcast network, or working on a military communication system, the MOP-EIA-78-CF78 delivers the performance and durability required. Its compatibility with both Andrew LDF5-50A and RFS LCF78-50A cables simplifies inventory management, and the peak power rating of 90 kW ensures that even the most demanding transmission scenarios are handled without compromise. When reliability under extreme conditions is non-negotiable, this connector proves its worth, from the first installation to hundreds of mating cycles later.
