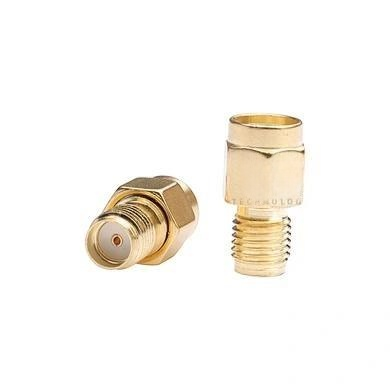

Unmatched Performance in a Compact RF Connector
nnIn the demanding world of radio frequency (RF) engineering, every component must deliver uncompromising precision and reliability. This 50Ω RF coaxial connector stands as a testament to superior design, offering a frequency range spanning DC to 12.4GHz, with the semi-rigid cable variant extending this capability to an impressive DC-18GHz. Whether you are building high-frequency communication systems or advanced RF signal transmission equipment, this connector provides the performance foundation your projects demand.nnCrafted from high-quality brass for both the body and contacts, and featuring a PTFE insulator, this connector ensures stable electrical performance across its entire operating range. The robust construction is not just about materials; it is about engineering for real-world conditions. This connector withstands wide temperature fluctuations, strong vibration, and supports up to 500 mating cycles, ensuring longevity and consistent signal integrity. For engineers seeking a reliable interface for critical applications, this component delivers.nn
Robust Specifications for Demanding Environments
nnThe performance of any RF connector is defined by its specifications. This model excels across key parameters, making it ideal for telecommunications, test equipment, and aerospace applications. Its ability to maintain low VSWR and insertion loss directly translates to better signal quality and reduced power reflection. The following table details the critical technical data.nn
Electrical and Mechanical Specifications
nn
| Parameter | Value |
|---|---|
| Impedance | 50Ω |
| Frequency Range | DC – 12.4GHz (Semi-Rigid Cable: DC – 18GHz) |
| Working Voltage (at sea level) | 335V r.m.s |
| Withstanding Voltage (at sea level) | 1000V r.m.s |
| Center Contact Resistance | ≤ 3 mΩ |
| Outer Contact Resistance | ≤ 2.5 mΩ |
| Insulation Resistance | ≥ 5000 MΩ |
| Center Conductor Retention Force | ≤ 0.28N |
| Coupling Nut Retention Force | ≥ 180N |
| Insertion Loss | ≤ 0.15 dB @ 6GHz |
| VSWR (Straight) | ≤ 1.10 + 0.02f |
| VSWR (Right Angle) | ≤ 1.20 + 0.03f |
| Durability (Mating Cycles) | ≥ 500 cycles |
nn
Environmental and Material Specifications
nn
| Parameter | Value |
|---|---|
| Temperature Range (Standard) | -55°C to +155°C |
| Temperature Range (PE Cable) | -40°C to +85°C |
| Vibration | 100 m/s² (10 to 2000 Hz), 10G |
| Body Material | Brass |
| Contact Material | Brass |
| Insulator Material | PTFE |
nn
Versatile Integration and Cable Compatibility
nnThis 50Ω RF coaxial connector is designed for ease of integration into existing and new systems. Its compatibility with a wide variety of cables—including RG6, RG58, RG59, RG174, RG179, and RG316—makes it a versatile choice for multiple deployment scenarios. For specialized requirements, custom options are available upon request, ensuring that your specific cable type and performance needs are met. This flexibility reduces inventory complexity and simplifies procurement for large-scale projects.nn
Unwavering Reliability in High-Frequency Applications
nnThe true value of an RF connector is proven in its operational reliability. With a VSWR rating that remains exceptionally low even at higher frequencies, this component minimizes signal reflection, preserving the integrity of your data or transmitted power. The robust coupling nut retention force provides secure vessel mating, resistant to accidental disconnection in environments with vibration or movement. Combined with the high insulation resistance and low contact resistance, this connector guarantees consistent performance over its lifespan.nn
Conclusion: The Ideal Choice for Advanced RF Systems
nnFor engineers and system integrators who demand excellence, this 50Ω RF coaxial connector delivers a winning combination of broad frequency support, rugged durability, and precise electrical characteristics. Its ability to handle thermal extremes and mechanical stress ensures reliable operation where other connectors might fail. Whether used in antenna feeds, test benches, or high-speed data links, this component meets the rigorous standards of modern high-frequency communication and RF signal transmission equipment. Choose this connector for your next project and build with confidence.
