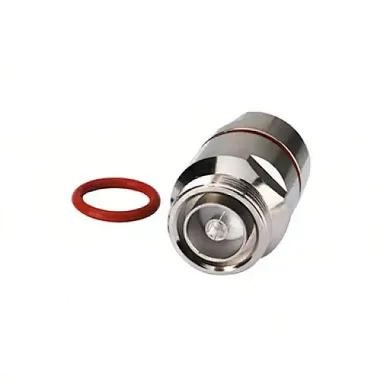

Precision-Engineered Coaxial Connector: Unmatched Signal Integrity for High-Frequency Applications
nn
Our coaxial connector represents a pinnacle of precision engineering, designed to deliver superior signal integrity and robust performance across demanding high-frequency environments. As a leading professional manufacturer, we ensure that this cable wire connector adheres to the highest industry standards for telecommunications, aerospace, defense, and test equipment. Whether you are deploying 5G networks, satellite communications, or radar systems, this RF connector provides the reliability and efficiency essential for critical operations.
nn
Key Features and Benefits of Our Coaxial Connector
nn
Our coaxial connector is built to excel in a variety of applications, offering a comprehensive set of benefits that enhance performance and longevity. From broad frequency support to environmental resilience, each feature is meticulously engineered to meet the demands of modern RF systems.
nn
Broad Frequency Range and Low VSWR
n
This coaxial connector supports seamless signal transmission from DC to 6GHz, making it ideal for RF connectors in 5G, satellite communications, and radar systems. Engineered for minimal signal reflection, it boasts a Voltage Standing Wave Ratio (VSWR) of ≤1.15, ensuring stable and efficient signal transfer even in complex networks.
nn
Premium Materials and Durability
n
Crafted with a tri-alloy plated brass body, a beryllium bronze center conductor, and a PTFE insulator, this coaxial connector offers optimal conductivity and resistance to wear. It withstands over 500 mating cycles, providing long-term reliability without performance degradation. Additionally, corrosion-resistant plating, including silver-plated center contacts and nickel-plated outer shells, enhances longevity in harsh environments.
nn
Environmental Resilience and Low PIM
n
Operating flawlessly in extreme conditions from -40°C to +85°C, this coaxial connector is suitable for outdoor and industrial use. With a Passive Intermodulation (PIM) level of ≤-155dBc, it is perfect for high-power and sensitive RF systems, minimizing interference and ensuring clean signal transmission.
nn
Technical Specifications of the Coaxial Connector
nn
To provide clarity and precision, the technical parameters of this coaxial connector are detailed below. All specifications are presented in a structured format to facilitate easy reference and comparison.
nn
| Parameter | Value |
|---|---|
| Interface Model | MOP-CN-DF-CF78 |
| Impedance | 50 ohm |
| Frequency Range | DC – 6 GHz |
| VSWR | ≤1.15 |
| Dielectric Withstanding Voltage | ≥2500V RMS, 50Hz, at sea level |
| Dielectric Resistance | ≥5000 MΩ |
| Contact Resistance (Outer) | ≤1.0 mΩ |
| Contact Resistance (Center) | ≤1.0 mΩ |
| PIM3 | ≤-155 dBc |
| Durability (Mating Cycles) | ≥500 |
| Temperature Range | -40°C to +85°C |
nn
Material and Plating Details
nn
The construction of this coaxial connector utilizes high-grade materials to ensure durability and performance. The table below outlines the material composition and plating for each component.
nn
| Component | Material | Plating |
|---|---|---|
| Body | Brass | Tri-alloy |
| Insulator | PTFE | – |
| Center Conductor | Phosphor Bronze + Beryllium Bronze | Ag (Silver) |
| Other | Brass | Ni (Nickel) |
nn
Versatile Compatibility and Applications
nn
This coaxial connector is compatible with various coaxial cable connector types, making it versatile for multiple industries. Its robust design supports secure connections through bayonet or threaded coupling options, preventing signal loss from loosening.
nn
Telecom Infrastructure
n
Ideal for base stations, Distributed Antenna Systems (DAS), and repeaters, this coaxial connector ensures reliable signal transmission in telecom networks, supporting high-speed data and voice communication.
nn
Aerospace and Defense
n
In radar systems, avionics, and military communications, the low VSWR and high durability of this coaxial connector provide the performance needed for mission-critical applications.
nn
Broadcast and Test Equipment
n
For signal analyzers and network testers, this coaxial connector offers low PIM and high dielectric strength, ensuring accurate measurements and consistent performance.
nn
Industrial IoT and Wireless Systems
n
In high-speed data transmission environments, such as industrial automation and wireless systems, this coaxial connector maintains signal integrity and reduces downtime.
nn
Why Choose Our Coaxial Connector?
nn
Our coaxial connector stands out due to superior electrical performance, including low contact resistance of 1.0 mΩ and high dielectric strength of ≥2500V. The secure connection options, combined with corrosion-resistant plating, enhance longevity and reliability. Manufactured under strict tolerances, this coaxial connector provides consistent performance in critical RF systems, whether for 5G networks, satellite links, or industrial automation.
nn
In conclusion, this coaxial connector offers unmatched signal integrity and robust performance for high-frequency applications, making it the ideal choice for professionals seeking reliability and efficiency. With its broad frequency range, low VSWR, and premium materials, it ensures that your systems operate at peak performance, even in challenging environments. Trust our coaxial connector to deliver the quality and durability you need for your most demanding projects.
