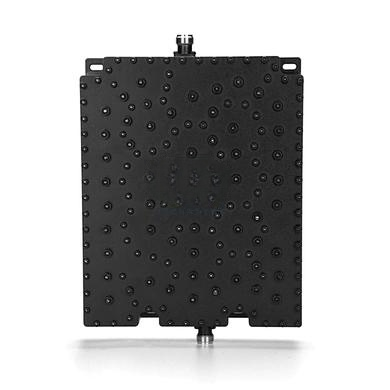

Introducing the High-Performance Cavity Band Pass Filter for Critical Communication Networks
n
In the demanding world of RF communications, signal clarity is paramount. Whether you are managing a public safety network, a commercial cellular system, or a specialized industrial link, the presence of unwanted interference can cripple performance. A robust filtering solution is not just an accessory; it is the backbone of signal integrity. This is precisely where our premium cavity band pass filter excels. Designed to meet the rigorous standards of modern telecommunications, this component ensures that only the desired frequencies pass through while aggressively attenuating harmful out-of-band noise. Achieving optimal network signal filtering requires a device that balances low insertion loss with high rejection, all within a compact, durable enclosure. This filter delivers precisely that, engineered for reliability in the harshest environments.
nn
The unit is meticulously crafted to serve as the critical link in your transmission chain. Its cavity design provides superior Q-factor and temperature stability compared to traditional dielectric filters, making it an ideal choice for base stations and repeater sites. When you install this filter, you are investing in uninterrupted service and enhanced system throughput. Let us explore the detailed specifications that set this component apart as a leader in network signal filtering.
nn
Precision Engineering for Band-Specific Performance
n
This filter is tuned specifically for the 700/800 MHz public safety and cellular bands. It covers three distinct operational ranges, ensuring seamless integration with multiple standards. The precise frequency segmentation allows for a tight passband with steep roll-off characteristics, a hallmark of high-quality cavity designs.
nn
Comprehensive Technical Specifications for Optimal Network Signal Filtering
n
Below is the complete set of technical parameters that define this advanced RF cavity filter. Every value represents a commitment to performance and reliability.
nn
| Parameter | Value / Specification |
|---|---|
| Frequency Range (MHz) | 769-775, 799-816, 851-861 |
| Insertion Loss (dB) | ≤ 4.0 dB (5.0 dB over temperature range) |
| Rejection (dB) | > 55 dB @ 0-767 MHz > 30 dB @ 777-797 MHz > 30 dB @ 818-849 MHz > 45 dB @ 863-2200 MHz |
| Return Loss (dB) | ≥ 18 |
| Maximum Input Power (W) | 10 W |
| Operating Temperature (°C) | -40°C to +85°C |
| Relative Humidity | 0 ~ 95% |
| Impedance (Ω) | 50 Ω |
| Size (mm) | To be confirmed |
| Weight (g) | To be confirmed |
| Connector Type | N-Female |
| Ingress Protection | IP67 |
| Color | Grey / Black |
nn
Understanding the Key Performance Indicators
n
For system engineers, the numbers tell a compelling story. The insertion loss of ≤4.0 dB ensures that the desired signal passes through with minimal attenuation, preserving transmitter power and receiver sensitivity. Even when ambient temperatures swing from -40°C to +85°C, the filter maintains a low loss of just 5.0 dB, demonstrating excellent thermal stability.
n
The rejection figures are equally impressive. With more than 55 dB of attenuation in the low-band (0-767 MHz), harmful strong signals from legacy systems are effectively eliminated. The steep rejection profile in the guard bands (777-797 MHz and 818-849 MHz) prevents interference with adjacent carriers, making this filter indispensable for dense RF environments where network signal filtering is critical. The high return loss (≥18 dB) indicates excellent impedance matching, reducing signal reflections that can cause distortion and power loss. This level of performance ensures that when you deploy this filter, you are optimizing the entire RF path.
nn
Built for the Elements: Robust Design and Connectivity
n
Modern network equipment is often deployed in unmanned and exposed locations. This filter is built to withstand rain, dust, and thermal shock thanks to its IP67-rated enclosure, which guarantees complete protection against dust ingress and temporary immersion in water. The N-Female connectors provide a secure, low-loss connection that is industry-standard for base station applications. Whether you are mounting it in a cell tower cabinet or a remote shelter, the compact size and durable grey/black finish ensure it fits seamlessly into your infrastructure.
nn
Conclusion: Elevate Your System with Superior Network Signal Filtering
n
In an era where spectral congestion is the norm, the quality of your network signal filtering directly impacts your bottom line. Poor filtering leads to dropped calls, reduced data rates, and costly troubleshooting. By choosing this cavity band pass filter, you are selecting a solution that combines meticulous engineering, extreme durability, and world-class performance. The clear frequency plan, low loss, and high rejection make it the definitive choice for professionals who demand reliability. Do not compromise on the integrity of your signal. Integrate this high-performance filter into your network today and experience the difference that precision engineering makes.
