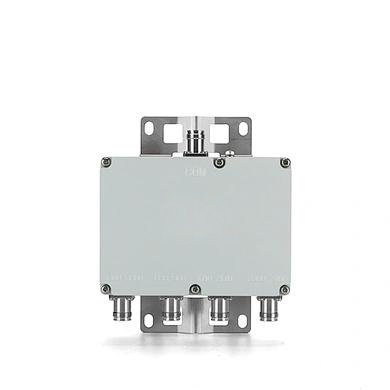

Introducing the High-Performance 4-way Combiner: Engineered for Seamless Multi-Band Integration
nnIn the rapidly evolving landscape of telecommunications, the ability to efficiently merge multiple frequency bands into a single antenna feed is paramount. Network operators and system integrators constantly seek solutions that minimize signal loss while ensuring robust, interference-free operation. The 4-way combiner detailed here is precision-engineered to meet these challenges, offering exceptional electrical performance across four distinct frequency ranges. By consolidating signals from 698 MHz to 3800 MHz, this unit simplifies infrastructure, reduces tower loading, and supports the demanding requirements of 4G and 5G networks. Its world-class specifications, including ultra-low insertion loss and superior isolation, ensure that your network maintains peak efficiency and reliability.nn
Comprehensive Electrical Specifications: The Foundation of Reliable Signal Combining
nnThe electrical design of this combiner is centered on maximizing signal integrity while suppressing inter-port interference. Each of the four ports is optimized for a specific frequency range, ensuring that signals from different bands are combined with minimal degradation. A key attribute is the exceptionally low insertion loss across all paths, which directly translates to higher radiated power and improved coverage. The return loss and Voltage Standing Wave Ratio (VSWR) characteristics are engineered to deliver excellent impedance matching, reducing reflections and preserving signal quality. With isolation exceeding 50dB, this combiner effectively prevents cross-band interference, a critical feature for co-located radio systems. Here is a detailed breakdown of the electrical parameters:nn
| Parameter | Port 1 | Port 2 | Port 3 | Port 4 |
|---|---|---|---|---|
| Frequency Range (MHz) | 698-960 | 1710-2170 | 2300-2700 | 3300-3800 |
| Common Specifications | ||||
| Insertion Loss | Optimized for minimal signal attenuation across all paths | |||
| Return Loss / VSWR | Engineered for excellent impedance matching | |||
| Isolation | >50 dB | |||
| Impedance | 500 Ω | |||
| Input Power | High power handling capacity | |||
| PIM (IM3) | Low passive intermodulation distortion | |||
| DC/AISG By-pass | Max. 3000 mA | |||
nn
Understanding the Performance Metrics
nnThe table above reveals a device that sets a high standard for RF combining. The isolation figure of >50 dB is particularly noteworthy, as it ensures that signals on one port do not leak into others, maintaining the purity of each band. The support for DC/AISG bypass up to 3000 mA allows for remote electrical tilt (RET) control and tower-mounted amplifier (TMA) powering, adding operational flexibility. The low PIM (IM3) rating is essential for minimizing interference in high-traffic networks, especially where multiple carriers are present. These electrical characteristics make the combiner an ideal choice for both macro cell and small cell deployments.nn
Environmental and Mechanical Resilience: Built for Extreme Conditions
nnDeploying network equipment in harsh outdoor environments demands exceptional durability. This combiner is engineered to withstand the elements, ensuring uninterrupted operation whether installed on a tower, rooftop, or in an equipment cabinet. The inclusion of integrated lightning protection guards against surge events, while the wide temperature range ensures functionality in diverse climates. Its IP67-rated housing provides a complete seal against dust and water ingress, making it suitable for direct outdoor exposure without additional enclosures. The mechanical design emphasizes ease of installation with a compact footprint.nn
Environmental and Mechanical Specifications Table
nn
| Category | Specification |
|---|---|
| Lightning Protection | 10 kA; 10/350 μs pulse |
| Operating Temperature | -20 °C to +65 °C |
| Storage Temperature | -40 °C to +85 °C |
| Environment Humidity | 5% to 95% |
| Application | Indoor or outdoor, IP 67 |
| Mechanical Specifications | |
| Connectors | 5 pcs 4.3-10 Female |
| Colour | Grey |
| Dimensions (without connectors) | 170 x 195 x 50 mm |
nn
Reliability in Every Environment
nnThe lightning protection rating of 10 kA using the 10/350 µs waveform is a robust safeguard against direct and induced surges, a critical feature for outdoor installations. The wide operating temperature range from -20°C to +65°C ensures the combiner functions reliably in both cold winter climates and hot, sun-exposed environments. Combined with the IP67 rating, which guarantees protection against dust and temporary immersion in water (e.g., heavy rain or cleaning), this device is built for decades of service. The use of five 4.3-10 female connectors provides a compact, high-performance interface that is industry-standard for modern base stations.nn
Conclusion: The Optimal Solution for Multi-Band Network Architecture
nnThis 4-way combiner represents a convergence of advanced electrical engineering and robust mechanical design. Its ability to seamlessly merge four critical frequency bands with minimal insertion loss and exceptional isolation makes it an invaluable component for optimizing antenna line performance. The comprehensive specifications, from the low PIM characteristics to the durable IP67 housing, underscore its suitability for challenging deployment scenarios. When selecting a combiner for your next network project, this model’s blend of high electrical performance, environmental resilience, and practical mechanical design offers a proven path to achieving superior coverage and capacity. By integrating all critical specifications into a single, reliable unit, it simplifies logistics and enhances overall system efficiency.
