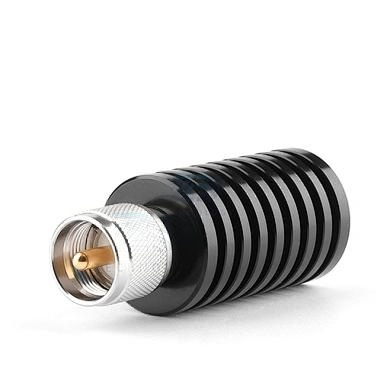

High-Performance Low-PIM Loads for Modern Networks: The MOP-DL-3GHz Series
nn
In the demanding world of telecommunications, signal integrity is paramount. Whether you are managing a cellular base station, a distributed antenna system (DAS), or a critical in-building network, the components you choose directly impact performance. One often-overlooked yet vital element is the load, specifically the low-PIM (Passive Intermodulation) load. The MOP-DL-3GHz Series offers a robust solution for engineers who require reliable, high-quality termination across a wide power spectrum. Designed to handle frequencies from DC to 3 GHz, this series provides exceptional stability and minimal interference, making it an ideal choice for testing, termination, and system calibration.
nn
Understanding the core specifications is essential for selecting the right component. Below is a detailed breakdown of the standard configurations available.
nn
MOP-DL-3GHz Series: Specifications and Configurations
nn
| Parameter | Specification / Options |
|---|---|
| Model | MOP-DL-3GHz-xxW-NM(NF/MM/DM/DF) |
| Power Options | 2W, 5W, 25W, 50W, 100W, 200W |
| Frequency Range | DC – 3 GHz |
| Impedance | 50 Ω |
| VSWR | ≤ 1.2:1 |
| PIM (Passive Intermodulation) | ≤ -120 dBc @ 2×33 dBm |
| PIM (High Power Variant) | ≤ -105 dBc @ 2×43 dBm |
| PIM5 (5th Order Intermodulation) | ≤ -145 dBc @ 2×33 dBm |
| PIM5 (High Power Variant) | ≤ -120 dBc @ 2×43 dBm |
| Connector Options | N-Male, N-Female, DIN-Male, DIN-Female, BNC-Male, PL259-Male, Other types upon request |
| Operating Temperature | -20 °C to +55 °C |
| Humidity | ≤ 95% |
nn
Why Low-PIM Loads Matter for Your RF System
nn
The critical specification that sets this series apart is its exceptional Passive Intermodulation (PIM) performance. In a multi-carrier environment, non-linearities in connectors, cables, or loads can generate interference, degrading network quality and reducing data throughput. The MOP-DL-3GHz Series is engineered to minimize these intermodulation products. With PIM3 ratings of ≤ -120 dBc at 2×33 dBm and ≤ -105 dBc at 2×43 dBm, these loads ensure that even under high power conditions, your system maintains clarity and reliability. This is particularly important for high-traffic cellular networks where every dB of clean signal counts.
nn
Applications Where This Low-PIM Load Excels
nn
The versatility of the MOP-DL-3GHz Series makes it suitable for a wide range of professional applications. In base station testing and maintenance, these loads provide accurate, low-reflection terminations for transmitter and receiver ports. They are also ideal for DAS (Distributed Antenna System) commissioning, where verifying signal purity across multiple frequency bands is crucial. Furthermore, for laboratory and R&D environments, the wide frequency range and low VSWR (≤1.2:1) ensure that test setups yield reliable, repeatable measurements without introducing unwanted artifacts.
nn
Selecting the Right Configuration for Your Low-PIM Load Needs
nn
When choosing a low-PIM load from this series, consider both your power requirements and connector compatibility. The power options range from 2W for low-power bench testing to 200W for handling high-power transmitter outputs. The connector flexibility is another key advantage. Whether your system utilizes N-Type, DIN, BNC, or PL259 connectors, the series offers male and female versions, with custom configurations available for specialized applications. This adaptability means that upgrading or replacing loads in an existing system can be done seamlessly.
nn
Environmental and Operational Reliability
nn
Operational stability under varying conditions is a hallmark of quality in RF components. The MOP-DL-3GHz Series is designed to function reliably across a wide temperature range of -20 °C to +55 °C and in high humidity environments up to 95%. This robust design ensures that whether deployed outdoors in a remote tower cabinet or inside a controlled equipment room, the load maintains its specified performance. The consistent VSWR of ≤1.2:1 across the entire frequency span further guarantees minimal reflected power, protecting your sensitive transmitters and amplifiers from damage.
nn
Conclusion
nn
In the quest for optimal network performance, the details make all the difference. The MOP-DL-3GHz Series represents a reliable, high-quality solution for engineers who demand the best from their RF terminations. With its combination of wide frequency coverage, flexible power handling, diverse connector options, and, most importantly, industry-competitive low-PIM performance, this series is a wise investment for any system requiring clean, interference-free operation. By choosing a low-PIM load that meets these rigorous standards, you are ensuring that your network runs as efficiently as possible, from the very first test to full-scale deployment.
