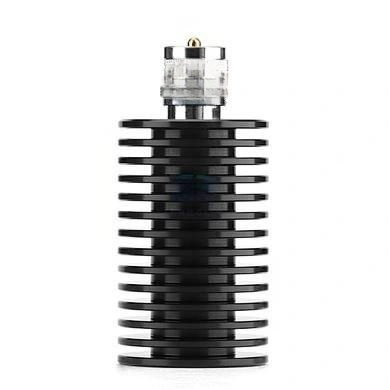

25W PL259 Male Termination Dummy Load: Precision for RF Testing
nnIn the demanding world of RF engineering, signal integrity is paramount. Whether you’re calibrating equipment, testing amplifiers, or ensuring the stability of a transmission line, one component stands indispensable: the termination dummy load. The termination dummy load is not just an accessory; it is a critical tool for absorbing RF power without radiating it, preventing reflections that can compromise test results or damage sensitive components.nnThe 25W PL259 male termination dummy load represents a high-performance solution designed for professional RF systems and rigorous testing scenarios. As a specialized RF dummy load, it offers a robust frequency range spanning from DC to 3GHz, accommodating everything from HF to UHF applications. Its core technical specifications, including a 50Ω impedance and a Voltage Standing Wave Ratio (VSWR) of ≤1.2:1, ensure minimal signal reflection, thereby safeguarding system stability and measurement accuracy. This is particularly vital when working with transmitters or during antenna tuning, where even minor reflections can skew data or introduce harmful power spikes.nnWhat sets this 25W RF dummy load apart is its exceptional linearity. With a third-order passive intermodulation (PIM3) of ≤-120dBc@2×33dBm and a fifth-order PIM (PIM5) of ≤-145dBc@2×33dBm, it delivers extremely low distortion. This ensures that the load introduces negligible artifacts into the system, making it ideal for high-fidelity testing in base stations, repeaters, and laboratory setups. The interface is equipped with a standard PL259 male RF connector, which is a widely recognized benchmark in amateur radio and commercial equipment. For greater flexibility, customization options are available, allowing replacement with N-type, DIN, BNC, or other connector types to meet diverse deployment requirements.nnOperating conditions are equally well-considered. The unit functions reliably across a temperature range of -20°C to +55°C and in environments with humidity up to 95%, ensuring consistent performance in both controlled labs and field installations. This robust construction and engineering make it a high-quality termination dummy load suitable for various conventional RF testing and system applications, from spectrum analysis to load testing.nn
Technical Specifications of the RF Dummy Load
nnBelow is a comprehensive breakdown of the product specifications and available options. The table outlines the core parameters for the series, including the 25W model and its variants.nn
| Parameter | Value / Range |
|---|---|
| Model No. | MOP-DL-3GHz-xxW-NM(NF/MM/DM/DF) |
| Power Rating | 2W, 5W, 25W, 50W, 100W, 200W |
| Frequency Range | DC – 3GHz |
| Impedance (Ω) | 50 |
| VSWR | ≤1.2:1 |
| PIM3 (dBc) | ≤-120@2×33dBm (≤-105@2×43dBm for higher power models) |
| PIM5 (dBc) | ≤-145@2×33dBm (≤-120@2×43dBm for higher power models) |
| Connectors | N-Male, N-Female, DIN-Male, DIN-Female, BNC-Male, PL259-Male, Other types |
| Operating Temp. | -20°C to +55°C |
| Humidity | ≤95% |
nn
Why Choose a High-Performance Termination Dummy Load?
nnSelecting the right termination dummy load directly impacts the reliability of your RF testing. Low VSWR ensures that the power is dissipated as heat, not reflected back into the source. This protects your equipment from damage during transmitter testing and provides accurate impedance matching for calibration. The wide frequency range of DC-3GHz means this load can handle modern broadband communications, while the low PIM values are essential for systems where distortion must be minimized, such as in cellular infrastructure or satellite communications.nn
Versatility in Application
nWhether you are a radio amateur tuning a linear amplifier or an engineer analyzing antenna patterns, this RF dummy load adapts seamlessly. Its compact design and rugged construction allow for easy integration into test benches or field kits. The ability to customize connectors further enhances its utility, making it a go-to tool for various scenarios, from base station testing to laboratory measurements.nn
Conclusion
nnThe 25W PL259 male termination dummy load is a versatile and high-performance tool that meets the rigorous demands of professional RF work. With its wide frequency coverage, low VSWR, and excellent linearity, it ensures accurate testing and system protection. Whether you require a standard PL259 interface or a custom N or DIN connector, this termination dummy load delivers consistent quality across a range of power levels. Invest in this reliable RF dummy load to enhance your testing capabilities and maintain signal purity in every application.
