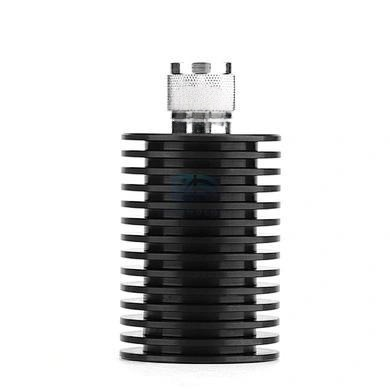

Understanding the MOP-DL-3GHz-xxW-NM Series: High-Performance Low PIM Attenuators
nn
In the demanding world of RF and telecommunications, signal integrity is paramount. The MOP-DL-3GHz-xxW-NM(NF/MM/DM/DF) series represents a critical component for engineers and network technicians who require reliable, low-loss connections across a broad frequency spectrum. These high-power dummy loads and attenuators are designed to terminate RF signals cleanly, minimizing reflections that can degrade system performance. Whether you are testing base station equipment, maintaining distributed antenna systems (DAS), or working with microwave links, understanding the capabilities of this series is essential for achieving optimal results.
nn
What sets this series apart is its ability to handle substantial power levels while maintaining exceptionally low passive intermodulation (PIM) ratings. PIM distortion is a common problem in cellular networks, where multiple high-power signals interact within non-linear components, generating interference that can significantly reduce data throughput and call quality. By employing precision manufacturing techniques and high-quality materials, the MOP-DL-3GHz-xxW-NM(NF/MM/DM/DF) series ensures that even under high power conditions, interference remains minimal. This makes the attenuator an indispensable tool for both laboratory testing and field deployment in modern wireless infrastructure.
nn
Key Technical Specifications and Performance Parameters
nn
The following table outlines the core electrical and mechanical characteristics of the series. All measurements are taken at 25°C ambient temperature unless otherwise specified. The series is engineered to deliver consistent performance across its operational bandwidth, making it suitable for a wide array of applications from DC to 3 GHz.
nn
| Parameter | Specification / Value |
|---|---|
| Model Number | MOP-DL-3GHz-xxW-NM(NF/MM/DM/DF) |
| Power Handling Options | 2W, 5W, 25W, 50W, 100W, 200W |
| Frequency Range | DC – 3 GHz |
| Impedance | 50 Ω |
| Voltage Standing Wave Ratio (VSWR) | ≤ 1.2:1 |
| PIM3 (3rd Order Passive Intermodulation) | ≤ -120 dBc @ 2×33 dBm ≤ -105 dBc @ 2×43 dBm |
| PIM5 (5th Order Passive Intermodulation) | ≤ -145 dBc @ 2×33 dBm ≤ -120 dBc @ 2×43 dBm |
| Available Connector Types | N-Male, N-Female, DIN-Male, DIN-Female, BNC-Male, PL259-Male, Other types upon request |
| Operating Temperature Range | -20°C to +55°C |
| Relative Humidity (Operating) | ≤ 95% |
nn
Why Low PIM Matters in Modern Networks
nn
The MOP-DL-3GHz-xxW-NM(NF/MM/DM/DF) series achieves its impressive PIM performance through careful design and assembly. PIM ratings are critical in cellular bands where multiple carriers operate simultaneously. The -120 dBc specification at 2×33 dBm (approximately 2 watts per tone) is industry-leading, ensuring that even in densely populated RF environments, the attenuator does not introduce harmful spurious signals. For systems requiring even higher power testing, the derated values at 2×43 dBm (20 watts per tone) still provide excellent performance. This consistency across power levels demonstrates the robustness of the design, making it a trusted choice for network equipment manufacturers (NEMs) and field service engineers alike.
nn
The VSWR rating of ≤1.2:1 across the entire DC-3 GHz range further underscores the quality of this product. A low VSWR indicates that the load is well-matched to the transmission line, minimizing reflected power that could damage transmitters or cause measurement inaccuracies. This is especially important when testing high-power amplifiers or antennas, where even a small impedance mismatch can lead to significant performance degradation. The broad frequency coverage also means that one device can serve multiple purposes, from DC biasing to 3 GHz LTE and 5G NR bands, simplifying inventory management.
nn
Application Versatility and Connector Options
nn
One of the most flexible aspects of the MOP-DL-3GHz-xxW-NM(NF/MM/DM/DF) series is the wide range of connector configurations. With options including N-Type (both male and female), DIN (7/16), BNC, and PL259 (UHF), the series can interface with virtually any RF test setup. For specialized requirements, custom connector types are also available, ensuring compatibility with legacy systems or proprietary equipment. This adaptability reduces the need for adapters, which can themselves degrade PIM and VSWR performance. Whether you need a 100W DIN-Female termination for a base station site or a 25W N-Male load for a lab prototype, this series offers a ready solution.
nn
Conclusion: The Value of Precision in RF Testing
nn
In conclusion, the MOP-DL-3GHz-xxW-NM(NF/MM/DM/DF) series stands out as a highly capable, low PIM RF termination solution. From its rugged construction to its impressive electrical specifications, every aspect is engineered to support the most demanding telecommunications and industrial applications. By selecting the appropriate power rating and connector type, engineers can confidently terminate circuits, characterize components, or perform system-level tests without worrying about signal degradation. The combination of wide frequency range, flexible power handling, and outstanding PIM/VSWR performance makes this series an excellent investment for any organization serious about RF quality. For optimal network performance and reliable measurements, the MOP-DL series provides the precision and durability that modern RF environments demand.
