Unmatched RF Performance: The 50W Dummy Load Redefined

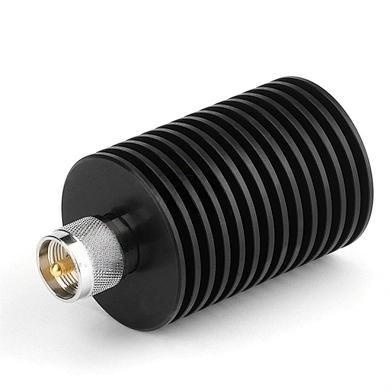

nnWhen precision and reliability are non-negotiable in RF system testing, the 50W dummy load emerges as a cornerstone component for engineers, technicians, and designers. This high-performance termination dummy load is meticulously engineered to handle demanding scenarios, from debugging communication equipment to validating signal links under real-world conditions. Its robust design ensures consistent, accurate performance across a wide operational spectrum.nnAt the heart of this device lies a PL259 male connector, a universal interface that guarantees seamless integration with a vast majority of standard RF equipment. Covering a frequency range from DC to 3GHz, this 50W dummy load demonstrates exceptional versatility, whether you are working with low-power signal paths or high-power transmission lines. The core specifications are a testament to its engineering excellence, with a standard 50Ω impedance ensuring perfect impedance matching and minimal signal reflections.nn
Low-PIM Excellence for Clean Signal Testing
nnOne of the standout attributes of this 50W dummy load is its extraordinary low passive intermodulation (PIM) performance. In the world of RF engineering, signal distortion caused by PIM can lead to false readings, system instability, and degraded performance. This dummy load suppresses such interference with maximum efficiency, boasting a PIM3 rating of ≤ -120 dBc at 2 × 33 dBm and a PIM5 rating of ≤ -145 dBc at the same test power. Such low-PIM characteristics make it an ideal termination dummy load for low-PIM applications, ensuring your test results remain accurate, repeatable, and free from unwanted spurious tones.nn
Built for Harsh Environments and Diverse Applications
nnDurability is a hallmark of this device. With an operating temperature range of -20°C to +55°C and a humidity tolerance of up to 95%, this 50W dummy load is designed to perform reliably in challenging conditions, including outdoor installations, industrial environments, and laboratory settings. Its robust construction withstands thermal stress and moisture ingress, allowing for continuous operation without degradation in performance.nn
Complete Specifications for the 50W Dummy Load
nnThe following table provides a comprehensive overview of the technical parameters available across the product line. All specifications are presented within this structured format to ensure clarity and easy reference.nn
| Parameter | Details |
|---|---|
| Model Number | MOP-DL-3GHz-xxW-NM (NF / MM / DM / DF) |
| Available Power Ratings | 2W, 5W, 25W, 50W, 100W, 200W |
| Frequency Range | DC – 3 GHz |
| Impedance | 50 Ω |
| VSWR | ≤ 1.2:1 |
| PIM3 (≤ dBc) | -120 @ 2 × 33 dBm (low-power models); -105 @ 2 × 43 dBm (high-power models) |
| PIM5 (≤ dBc) | -145 @ 2 × 33 dBm (low-power models); -120 @ 2 × 43 dBm (high-power models) |
| Connector Options | N-Male, N-Female, DIN-Male, DIN-Female, BNC-Male, PL259-Male, Other types available |
| Operating Temperature | -20°C to +55°C |
| Humidity Tolerance | ≤ 95% |
nn
Why the 50W Dummy Load Is a Must-Have for RF Professionals
nnThis termination dummy load is not just another accessory—it is an essential tool for anyone involved in RF engineering, telecommunications, or signal testing. Its low VSWR of ≤1.2:1 ensures minimal power reflection, protecting sensitive transmitters during testing. The combination of wide frequency coverage and superior PIM suppression makes it ideal for evaluating base stations, antennas, amplifiers, and filters. Moreover, the availability of various connector types (including N-Male, N-Female, DIN, BNC, and PL259) ensures that this 50W dummy load can be adapted to almost any system configuration.nn
Practical Applications
nIn communication equipment debugging, this dummy load provides a stable and predictable load that helps isolate faults without damaging expensive components. During RF performance testing, it delivers consistent impedance and low insertion loss, enabling accurate assessment of output power, linearity, and spectral purity. For signal link matching, the device ensures that the system sees a pure resistive load, preventing standing waves and optimizing overall efficiency.nn
Conclusion: Reliability and Value in One Package
nnThe 50W dummy load stands as a high-performance, cost-effective solution for RF testing and load matching. Its ability to maintain low-PIM performance across a broad frequency range and under harsh environmental conditions sets it apart from generic alternatives. Whether you are calibrating a lab bench, commissioning a cellular network, or troubleshooting a two-way radio system, this termination dummy load delivers the accuracy and durability you demand. For professionals who require uncompromising signal integrity, the 50W dummy load is the definitive choice—a gateway to precise, repeatable, and dependable RF testing.
