Unleashing the Full Potential of Your RF System: The High-Power Amplifier Module
nnIn the demanding world of radio frequency (RF) engineering, signal integrity and power output are paramount. Whether you are testing communication equipment, driving a high-power transmitter, or conducting complex RF research, the ability to amplify a weak signal to a robust, clean, and stable level is non-negotiable. This is precisely where a high-performance RF power amplifier becomes an indispensable tool. This module is not just a simple amplifier; it is an intelligent, integrated system designed to deliver exceptional power, precision control, and comprehensive monitoring for the most rigorous applications.nnFrom laboratory benchtops to field deployments, the need for a reliable and versatile amplification solution is universal. This unit bridges the gap between a basic signal source and a powerful transmission link, offering a seamless way to boost signals across a vast frequency spectrum. It is engineered to provide consistent, high-fidelity power while safeguarding itself and your valuable equipment from common RF hazards like high standing wave ratios (VSWR) and thermal overload. The following deep dive will explore its core specifications, intelligent features, and the intuitive monitoring system that sets it apart.nn
Core Specifications of the RF Power Amplifier
nnTo understand its capabilities, one must first examine the raw performance parameters. This module is built to deliver substantial power across a wide frequency range, making it suitable for multiple applications, from HF to UHF and beyond.nn
| Parameter | Value | Remark |
|---|---|---|
| Working Frequency | 20M – 6000M | Broadband coverage |
| Power Output | 100W | CW output |
| Operating Voltage | 28V | Range: 24-36V |
| Conversion Efficiency | ≥42% @100W | High efficiency at max power |
| Adjustable Output Power | 10W ~ 100W | Software set power (ALC) |
| ALC Power Adjustment Range | ≥20dB | Voltage Controlled Attenuation |
| Gain | 48±1.0dB | High, stable gain |
| In-band Fluctuation | ≤2.5dB | Flat response across band |
| Peak Spurious Emissions (In-band) | ≤-15dBm/1MHz | Measured with max output power |
| Spurious (9KHz-1GHz) | No higher than normal noise floor | Excellent spectral purity |
| Spurious (1G-12.75GHz) | No higher than normal noise floor | Wideband harmonic suppression |
| Max Allowable Input Power | ≥+10dBm | Lasts 1 min without damage |
| Input VSWR | ≤1.35 | Add +28V, standard network output -10dBm |
| Output VSWR | ≤1.35 | No power, standard network output -10dBm |
| Power Requirements | ≥8A @+28Vdc | CW output 100W |

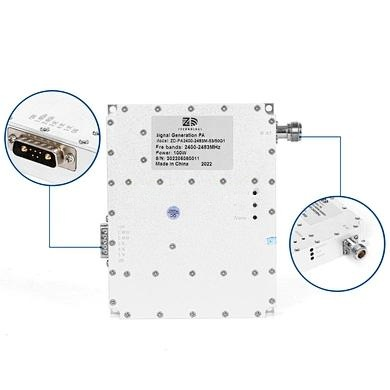

| Power Supply & Comms Interface | 7W2 Male, RS485 | 1:485A; 2:485B |
| RF Output Connector | N-Female | With 3 LED indicators |
nn
Environmental and Physical Design
nThe module is designed for robust operation in challenging environments. Its physical construction and thermal management are key to its reliability.nn
| Parameter | Specification |
|---|---|
| Working Environment Temperature | -10～+65℃ |
| Low Temp Startup | Can start, monitoring works normally |
| Gain Stability | ±1.5dB @-40℃～+65℃ |
| Power Stability | ±1dB @-40℃～+65℃ |
| Physical Dimensions (700M-6G) | 15512526mm |
| Physical Dimensions (20M-500M) | 15512535mm |
| Weight | Lightweight, integrated module |
| Mounting/Usage | Fixed on a radiator |
nn
Intelligent Monitoring and Comprehensive Protection
nnBeyond simple amplification, this module acts as an intelligent subsystem. Its integrated monitoring and alarm features are designed to protect itself and the wider system from faults, ensuring longevity and operational safety.nn
Amplifier Setting Parameters
nAll critical operational limits are configurable via the software interface, providing unparalleled control.nn
| Function | Description | Remark |
|---|---|---|
| Amplifier Switch | Turn the amplifier on or off | Software controlled |
| Alarm Switch | Enable and disable the alarm function | Quickly silence alarms |
| Downlink Power Control | Set max output power (adjustment range ≥20dB) | Set high, medium, low power levels |
| Amplifier Overtemp Alarm | Set high temp shutdown threshold | Auto shutdown >85°C, auto restore at 65°C |
| Amplifier Overpower Alarm | Shut down if power is 2dB above ALC threshold | Prevents output overdrive |
| Standing Wave Alarm | Auto shut down if VSWR > 4 | Protects from antenna mismatch |
| Amplifier Overcurrent Alarm | Auto shut down if current > 12A | Prevents internal short circuits |
| Amplifier Under-power Alarm | Alarm if detected power < 33dBm | Indicates low output or fault |
| Amplifier Overvoltage Alarm | Auto shut down if voltage > 32V | Protects from power supply surges |
| Amplifier Undervoltage Alarm | Monitors supply voltage | Alerts for low voltage conditions |
nn
Advance d Parameter Query Capabilities
nReal-time status monitoring is essential for system verification and troubleshooting. The module provides direct access to key operational data.nn
| Query Parameter | Description | Detection Details |
|---|---|---|
| Amplifier Switch Status | Returns ON or OFF state | As per software setting |
| Downstream Output Power Level | Detects output power value | Range: (Pomax+2, Pomax-20), Accuracy: Pout±1dB |
| Downward Standing Wave Ratio | Reports current VSWR | Normal: 1.2, Mismatch: 4.0 |
| Temperature Query | Detects internal module temperature | Range: -40℃～+100℃, Error: ±3℃ |
| ALC Value Query | Shows actual set ALC value | Equal to software setting |
| Voltage Detection | Detects module working voltage | For supply monitoring |
| Current Detection | Detects module operating current | For power consumption tracking |
nn
Flexible Signal Generator Integration
nThe integrated signal generator adds a layer of versatility, allowing the module to function as a complete signal source with amplification.nn
Frequency Setting Modes
nThe user can configure the signal source in multiple modes to fit specific test or operation requirements.nn
| Mode | Description |
|---|---|
| Mode 1: Single Frequency | Set any single frequency point within the 20M-6000M range. Frequency accuracy is 1M, max bandwidth is 500M. |
| Mode 2: Broadband Sweep | Set a broadband frequency sweep mode with configurable parameters like frequency, interval, and step. |
| Mode 3: Sub-Segment Sweep | Set any 4 sub-frequency segments within the bandwidth. Sub-segments are incremented. |
nn
Conclusion
nnIn conclusion, this RF power amplifier module represents a significant advancement in integrated RF design. By combining a powerful, wideband amplification stage with an intelligent control and monitoring system, it offers a level of performance and reliability that is essential for modern RF tasks. The ability to precisely control output power via ALC, coupled with comprehensive alarms for temperature, standing wave, overcurrent, and voltage, ensures that both the amplifier and your system remain protected under all conditions. Whether you need a 100W boost for a single-frequency test or a swept signal for broadband characterization, this module provides a clean, stable, and controllable solution. Its robust construction and flexible communication protocol make it an ideal choice for integration into larger automated test systems or as a standalone high-power source, delivering the performance and peace of mind that professionals demand.
