Military-Grade VHF/UHF Broadband Omnidirectional Antenna: Unmatched Reliability
nn

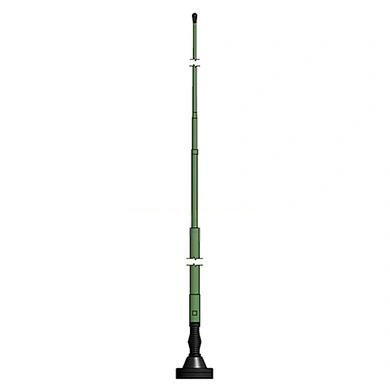

In the demanding world of military communications, signal integrity and reliability are non-negotiable. The VHF/UHF broadband omnidirectional antenna, covering the critical 30-600 MHz spectrum, is engineered to deliver robust and consistent communication support for modern in-service military platforms. Whether deployed on armored vehicles, metal chassis, composite structures, or both wheeled and tracked vehicles, this antenna ensures clear, uninterrupted transmission. Its advanced design eliminates the need for manual frequency adjustments, integrating all tuning elements within the whip itself for seamless operation across the entire band.
nn
This antenna offers exceptional omnidirectionality, providing uniform signal reception regardless of vehicle orientation. With a smooth Voltage Standing Wave Ratio (VSWR) and constant gain, it performs reliably in diverse and challenging environments, from dense urban settings to open battlefields. The high input power capability further enhances its suitability for demanding military operations, ensuring strong, clear communication when it matters most.
nn
Key Features of the Omnidirectional Broadband Antenna Series
nn
The omnidirectional broadband antenna series is designed for versatility and durability. It is available with multiple base configurations, including NATO 4/6-hole styles, NATO styles, and mast mount brackets (both rigid and non-spring), ensuring easy integration across different vehicle platforms. This flexibility meets the varied requirements of defense clients worldwide. The antenna also comes with a protective carrying bag for both the upper and lower whip sections, safeguarding it during transport and storage.
nn
This high-gain directional antenna system is part of an industry-leading series that covers VHF and UHF bands. Its robust construction and comprehensive mounting options make it an ideal choice for military communications, providing reliable signal transmission in a wide range of scenarios. Additionally, it can be effectively used in specialized applications such as drone jammers, phone jammers, Wi-Fi jammers, and GPS jammers.
nn
Electrical Specifications
nn
| Parameter | Value |
|---|---|
| Model | MOP-VOA-30-600M-NF |
| Frequency Range | 30 – 600 MHz |
| Nominal Impedance | 50 ohm |
| Power Rating | 100W |
| VSWR | ≤1.8 |
| Gain | See diagram overleaf |
| Radiation Pattern (Azimuth) | Omnidirectional |
| Polarization | Vertical |
| Connector | N female (others on request) |
| EMP Protection | DC grounded on 50 ohm side (extra EMP protection available as option) |
nn
Mechanical Specifications
nn
| Parameter | Value |
|---|---|
| Design | Centre fed dipole (UHF); End-fed whip (VHF) |
| Radiating Element | Enclosed in epoxy/fibreglass laminate |
| Metal Parts | Plated brass and stainless steel |
| Total Length | 2.65m (104 in) |
| Lower Whip Length | 1.14m (45 in) |
| Upper Whip Length | 1.45m (57 in) |
| Base Length | 0.24m (9.5 in) |
| Wind Rating | 55 m/s = 125 mph |
| Finish | Polyurethane lacquer |
| Color | Customer specified |
| Installation | See base option table |
| Temperature Range | -55°C to +71°C / -67°F to +160°F |
nn
GPS Electrical Specifications (Integrated Option)
nn
| Parameter | L1 GPS | L2 GPS |
|---|---|---|
| Frequency Band | 1575 MHz | 1227 MHz |
| Supply Voltage | 2.7 – 5.5V | 2.7 – 5.5V |
| Pre-amplifier | 25 dB @ 5V | 25 dB @ 5V |
| Noise Figure | 2.5 dB | 2.5 dB |
| Supply Current | – | – |
| Polarization | RHCP | RHCP |
| Connector | SMA female | SMA female |
nn
Available Antenna Option
nn
| Product | Description |
|---|---|
| Whip Bag | Protective carrying bag for upper and lower whip sections |
nn
Conclusion: Premier Performance in a Broadband Omnidirectional Antenna
nn
The VHF/UHF broadband omnidirectional antenna stands as a testament to engineering excellence in military communications. Its ability to deliver consistent, omnidirectional coverage across the 30-600 MHz spectrum, combined with robust mechanical construction and versatile mounting options, ensures it meets the most stringent operational demands. Whether for armored vehicle integration or specialized jamming applications, this omnidirectional antenna provides the reliability and performance required for mission-critical success. With integrated GPS capabilities and protective accessories, it represents a comprehensive solution for modern defense needs, reinforcing its role as a cornerstone in tactical communication systems.
