Introducing the Wideband DF 300-6000MHz VHF UHF Omni Directional Antenna
nn
When it comes to signal intelligence and direction finding, precision and reliability define the equipment you choose. The wideband DF 300-6000MHz VHF UHF omni directional antenna stands as a sophisticated solution, covering the full frequency spectrum from 300 MHz to 6 GHz. This system provides true omnidirectional coverage across both VHF and UHF bands, ensuring you never miss a signal, no matter where it originates. At the heart of the design is a fully integrated active monitoring antenna that operates along the same axis as the DF array, delivering high-sensitivity coverage without introducing any interference to the direction-finding process. This seamless integration minimizes footprint while maximizing performance, making it ideal for demanding surveillance and spectrum monitoring environments.
nn
The broadband antenna system is engineered to measure the exact direction from which a received signal is transmitted. By employing angle of arrival estimation and a robust correlative interferometer, the system can pinpoint the transmission location with remarkable accuracy. Every component, from the full-size elements optimized for each frequency band to the dipole elements providing cross-polarization rejection, contributes to bearing accuracy well under 1° RMS for strong signals across most of the frequency range. This performance is essential for applications where every degree counts, whether in tactical operations, spectrum management, or signal localization. The omni directional antenna design further ensures reliable performance for signals arriving from up to 15° above or below the horizon, giving you comprehensive coverage from multiple angles.
nn
Key Specifications of the DF Antenna System
nn
| Parameter | Specification |
|---|---|
| Frequency Range | 0.3 – 6 GHz |
| DF Method | Correlative Interferometer |
| DF Array Configuration | 10-element circular array |
| DF Accuracy (f > 300 MHz) | 1° RMS |
| Linearity IP3 (300 MHz – 2.7 GHz) | +20 dBm |
| Linearity IP3 (2.7 GHz – 6 GHz) | +17 dBm |
| Azimuth Pattern (Ripple) of Reference Antenna | f ≤ 1.2 GHz, f ≤ 1.8 GHz, f ≤ 3 GHz |
| Impedance | 50 Ω |
| Return Loss | 10 dB |
| VSWR | 2.0 |
nn
Integrated Navigation and Environmental Durability
nn

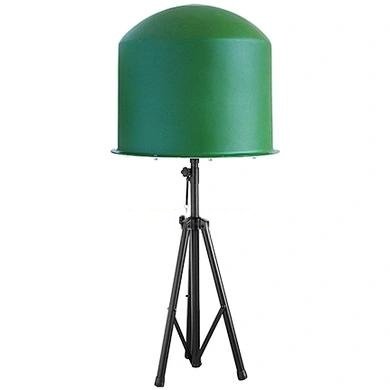

Modern direction-finding systems need more than just signal sensitivity; they require precise self-awareness. This wideband DF 300-6000MHz VHF UHF omni directional antenna incorporates an embedded electronic compass for azimuth determination, reducing uncertainty during deployment. An integrated GNSS receiver and antenna further enhance positional accuracy, allowing the system to log and transmit location data alongside bearing information. Whether you are mounting the antenna on a tripod for temporary field operations or on a fixed installation, the system provides consistent performance. The connector is a standard NF type, ensuring compatibility with common monitoring equipment.
nn
Durability is a critical factor, especially when operating in harsh outdoor environments. The antenna is built to withstand extreme conditions, with an ingress protection rating of IP 65, ensuring resistance against dust and water jets. The storage temperature range spans from -40 °C to +85 °C, while the operating temperature covers -40 °C to +65 °C. Relative humidity tolerance reaches 95% for 240 hours at +30 °C, and salt resistance is tested through 2 cycles of 24 hours salt spray followed by drying at +35 °C. The radome is finished in olive green, providing low visibility in field operations, while the primary construction material is aluminum for a balance of strength and lightweight handling.
nn
Why Choose This Omni Directional Antenna?
nn
The overall design philosophy behind this omni directional antenna focuses on maximizing sensitivity and directivity within each designated frequency segment. Each channel antenna is meticulously tailored to ensure that the dipole elements deliver exceptional cross-polarization rejection and consistent performance. The result is a system that not only meets but exceeds typical bearing accuracy standards, with minimal ripple in the azimuth pattern across wide frequency spans. This high gain antenna configuration ensures that even weak signals can be captured and analyzed with confidence.
nn
In conclusion, whether you are monitoring the VHF/UHF spectrum for communications intelligence, conducting electronic warfare testing, or managing radio frequency spectrum, this omni directional antenna provides a comprehensive solution. Its robust construction, high accuracy, and seamless integration of DF and monitoring functions make it a valuable tool for professionals who demand reliability in the field. With specifications that cover rigorous environmental conditions and precise bearing performance, you can trust this antenna to deliver consistent results across any mission.
