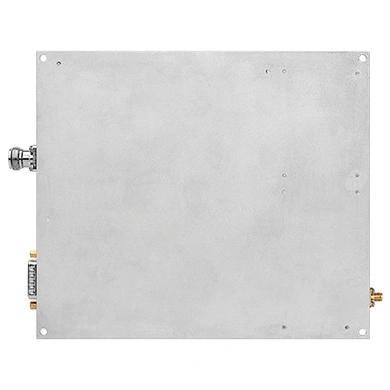

Unleashing Power and Precision: The 500W Wideband Power Amplifier Module
n
In the demanding world of professional communication and radar systems, signal integrity and reliable power delivery are non-negotiable. The 500W wideband power amplifier module represents a significant leap forward, combining cutting-edge GaN (Gallium Nitride) technology with robust engineering to meet the most rigorous operational standards. This module is designed not merely to amplify, but to do so with exceptional efficiency, stability, and control, even under the harshest environmental stresses. Whether deployed in advanced radar platforms or sophisticated communication networks, this amplifier sets a new benchmark for performance, seamlessly integrating into complex system architectures while simplifying thermal management and ensuring consistent, high-fidelity output from 150 MHz to 6 GHz.
nn
Core Specifications and Performance Metrics
n
To fully appreciate the capability of this 500W wideband power amplifier module, a detailed look at its technical specifications is essential. The following table outlines the key performance parameters that define its operational excellence.
nn
| Parameter | Value | Remarks |
|---|---|---|
| Working Frequency | 150-600 / 500-1000 / 1000-2000 / 1000-1300 / 1300-2000 / 2000-3000 / 3000-6000 MHz | Customizable sub-bands within this range |
| Input Power | 0 ~ 5 dBm | |
| Max Output Power | ≥57 dBm (500W) | Continuous wave |
| Operating Voltage | 28V | 28 ± 0.5V |
| Operating Current | ≤45A | |
| Work Efficiency | 45% | Power-added efficiency |
| Output VSWR | ≤1.5 | |
| Digital Attenuation | 0 ~ 31 dB | Attenuation step: 0.5 dB |
| Output Power Coupling Detection | 40 dB | Output Coupling Degree |
| Power Supply Requirement | ≥50A | For 500W continuous wave output |
| Power Supply Interface | YGD24B2804K21-A-01 | Withstands 60A |
| RF Output Connector | N-K | Customizable |
| RF Input & Power Detection Connector | SMA-K | |
| Physical Dimension | 250 x 250 x 30 mm | Does not include connector size |
| Mode of Communication | RS-485 Serial Communication | Pin 3: 485A, Pin 4: 485B |
| Enable Control | High on, low off | Default low level; Pin 1: EN |
| Enabling and Reporting Interface | J30J-9ZKP | Pin 1: EN, Pin 2: GND, Pin 3: 485A, Pin 4: 485B, Pins 5-9: NC |
nn
Advanced GaN Technology and Thermal Management
n
At the heart of this 500W wideband power amplifier module lies third-generation semiconductor GaN technology. This innovation is a game-changer, breaking through the inherent efficiency limits of traditional silicon-based devices. By achieving an impressive 45% power-added efficiency, the module generates significantly less waste heat. This directly translates into a reduced burden on thermal management systems—a critical advantage for modern radar system platforms where space and cooling capacity are at a premium. The low VSWR of ≤1.5 further complements this by minimizing reflected power, which not only protects the amplifier but also contributes to overall system stability and longevity.
nn
Gain Stability Across Extreme Conditions
n
Reliability in the field is paramount. This module is engineered to maintain a gain stability of ±1.0 dB across a wide operating temperature range of -25°C to +65°C. This ensures that performance remains predictable and dependable, whether the system is deployed in arctic cold or desert heat. The robust design, which also meets vehicle equipment vibration requirements, guarantees that the amplifier can withstand the physical rigors of mobile and airborne platforms without compromising signal integrity.
nn
Comprehensive Monitoring and Intelligent Control
n
Modern systems demand more than just raw power; they require intelligence. This 500W wideband power amplifier module integrates a sophisticated quad-protection monitoring system with automatic recovery. The system continuously reports on voltage, current, output power, output standing wave state, and temperature.
nn
Real-Time Diagnostics and Automatic Recovery
n
The embedded diagnostic functions provide real-time status, instantly identifying anomalies:n
- n
- Voltage: Reports abnormal if exceeding 28V ±4V.
- Current: Reports abnormal if ≥60A.
- Output Standing Wave: Reports abnormal if ≥3:1.
- Temperature: Reports abnormal if exceeding 75°C.
n
n
n
n
nWhen any abnormal state is detected, the amplifier automatically powers off. Once the condition is resolved, it safely and automatically restarts, ensuring minimal downtime. This self-healing capability is crucial for unmanned or remote installations.
nn
Precision Power Regulation and Signal Detection
n
Fine control over output is achieved through a 31 dB digital attenuator with 0.5 dB steps, enabling precise power regulation to suit varying operational requirements. The module is also paired with a 40 dB coupler for real-time, non-intrusive signal detection, supporting both continuous wave and reliable pulsed operation. Multi-segment wideband frequency optimization, with customizable sub-bands, further improves gain flatness across the entire 150–6000 MHz spectrum. The stable 28V power architecture simplifies system integration, making this 500W wideband power amplifier module an ideal, future-ready solution for the most demanding RF front-end applications.
nn
Conclusion: A New Benchmark in RF Amplification
n
The 500W wideband power amplifier module is more than just a component; it is a fully integrated, intelligent subsystem. By fusing leading-edge GaN efficiency with robust monitoring, precision control, and exceptional environmental resilience, it establishes a new standard for high-performance RF frontends in radar system equipment. This module empowers engineers to design next-generation systems that are more powerful, reliable, and efficient, ready to meet the challenges of advanced communication and sensing today and tomorrow. Its thoughtful design, from the customizable frequency bands to the automatic recovery features, ensures that it is a versatile and dependable cornerstone for any critical RF application.
