China Moneypro Wilkinson Power Divider 2/3/4/6 Way Microwave Splitter 800-2200MHz with TNC Female Connector

Precision Signal Distribution with the Wilkinson Power Divider 2/3/4/6 Way Microwave Splitter 800-2200MHz with TNC Female Connector

nn

In modern communication systems and microwave technology, accurate signal distribution is not just a luxury—it is a fundamental requirement. The Wilkinson power divider 2/3/4/6 way microwave splitter 800-2200MHz with TNC female connector stands out as a high-performance tool designed to meet the rigorous demands of professional applications. Whether you are optimizing base station signals, upgrading wireless networks, or conducting microwave experiments in a research lab, this device delivers the reliability and precision you need. Its wide frequency range, multiple branching options, and robust construction make it an indispensable asset for engineers and technicians alike. This article delves into the key features, specifications, and benefits of this versatile splitter, ensuring you understand why it is a top choice for signal distribution tasks.

nn

Understanding the Wilkinson Power Divider 2/3/4/6 Way Microwave Splitter 800-2200MHz with TNC Female Connector

nn

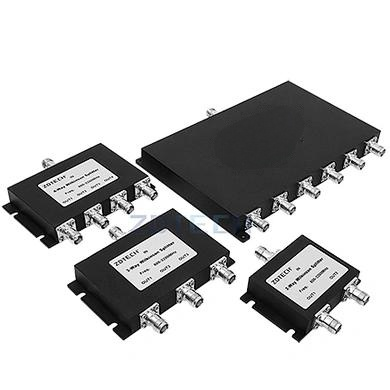

The Wilkinson power divider 2/3/4/6 way microwave splitter 800-2200MHz with TNC Female connector is engineered to divide microwave signals evenly across multiple outputs while maintaining signal integrity. Operating across a frequency range of 800 to 2200 MHz, it supports a broad spectrum of communication bands, from cellular networks to Wi-Fi and beyond. The device is available in 2-way, 3-way, 4-way, and 6-way configurations, allowing you to choose the exact branching structure for your specific needs. This flexibility is critical for applications like distributed antenna systems, test equipment, and signal monitoring setups.

nn

One of the standout features is its low voltage standing wave ratio (VSWR). For the 2-way model, the VSWR is ≤1.25:1, while the 3-way, 4-way, and 6-way variants maintain ≤1.3:1 or ≤1.4:1. These low values ensure minimal signal reflection, which translates to stable transmission and reduced loss. Additionally, the insertion loss is remarkably low—≤0.4 dB for the 2-way version—preserving signal strength across the network. With isolation ≥20 dB, the splitter minimizes interference between output ports, guaranteeing clean and pure signals for downstream equipment. The power capacity of 50W (split) and 1W to 2W (combined) further underscores its suitability for both high-power and sensitive applications.

nn

Technical Specifications at a Glance

nn

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

nn

Durable Construction and Environmental Adaptability

nn

The Wilkinson power divider 2/3/4/6 way microwave splitter 800-2200MHz with TNC female connector is built to last. Its RF connectors are TNC female, ensuring stable and secure connections with common RF cables. The internal material is copper with a plated ternary alloy, which enhances conductivity and durability. The housing is made of aluminum (ADC12 or 6061) and coated with black powder, offering excellent corrosion resistance and mechanical strength. This design not only protects the internal circuitry but also allows the device to operate in challenging conditions.

nn

Environmentally, the splitter is rated for an operating temperature range of -35°C to +65°C and a relative humidity of ≤95%. With an IP55 protection class, it is shielded against dust and water jets, making it suitable for indoor use in various environments. The mechanical dimensions vary by configuration: for example, the 2-way model measures 88x60x19.5 mm (excluding connectors) and weighs just 175g, while the 6-way version is larger at 151x218x23 mm and 1140g. These compact and lightweight designs facilitate easy integration into racks or custom setups.

nn

Mechanical and Packaging Specifications

nn

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

nn

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

nn

Applications and Benefits

nn

The Wilkinson power divider 2/3/4/6 way microwave splitter 800-2200MHz with TNC female connector excels in a variety of professional scenarios. In communication base stations, it optimizes signal distribution across multiple antennas, improving coverage and capacity. For wireless network expansion, its low loss and high isolation ensure that each branch receives a clean signal, reducing interference and enhancing data throughput. Research institutions and testing labs benefit from its precise power division and stable performance, making it ideal for microwave experiments and prototype development. The device also integrates seamlessly into distributed antenna systems and in-building coverage solutions.

nn

Moreover, its robust environmental specifications mean it can operate reliably in indoor settings with fluctuating temperatures and humidity. The IP55 rating adds an extra layer of protection, ensuring longevity even in dusty or damp environments. Whether you are a system integrator, a network engineer, or a scientist, this splitter simplifies signal management while maintaining high performance.

nn

Conclusion

nn

In conclusion, the Wilkinson power divider 2/3/4/6 way microwave splitter 800-2200MHz with TNC Female connector is a versatile and high-quality tool for microwave signal distribution. Its wide frequency range, multiple branching options, low VSWR, and high isolation make it a reliable choice for various applications. The durable construction with TNC connectors and aluminum housing ensures long-term performance, while its environmental ratings guarantee adaptability to different indoor conditions. Whether you are upgrading a telecommunications network or setting up a research lab, this splitter provides the precision and stability you need. Invest in the Wilkinson power divider 2/3/4/6 way microwave splitter 800-2200MHz with TNC female connector to enhance your signal distribution capabilities and build an efficient, robust microwave communication system.
