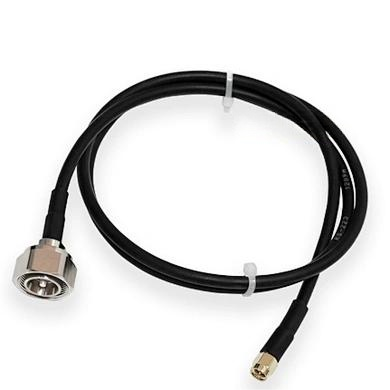

Introducing the 1-Meter RG223 Jumper Assembly: A High-Performance Connection Solution
In the fast-evolving world of communication equipment, finding a reliable and high-performance connection solution is paramount. Whether you’re a network engineer, a telecom technician, or a system integrator, the quality of your coaxial cable assembly can make or break signal integrity. Our 1-meter RG223 jumper assembly is designed to meet these demands with precision. As a professional-grade jumper cable, it bridges the gap between various RF components, offering unmatched durability and electrical stability. This male-to-male cable features a 4.3-10 male connector on one end and an SMA male connector on the other, making it a versatile choice for connecting antennas, base stations, test equipment, and more. But what truly sets this assembly apart is its robust construction and superior electrical performance. In this article, we’ll explore why this RG223 jumper assembly is the optimal choice for your communication infrastructure.
Why Choose This RG223 Jumper Assembly?
Uncompromising Build Quality and Materials
The backbone of this assembly is the RG223 coaxial cable, renowned for its high pull-off strength. This ensures a stable connection even in environments where cables are subject to frequent handling or tension. The connectors are crafted with precision: the pins are made from brass and gold-plated for excellent conductivity and corrosion resistance, while the body is brass nickel-plated for added durability. The inclusion of PTFE insulators and silicone rubber gaskets guarantees reliable insulation and sealing, preventing signal leakage and environmental damage.
Exceptional Electrical Performance
When it comes to signal transmission, every detail matters. This RG223 jumper assembly is engineered for efficiency and clarity. Key electrical specifications include an impedance of 50 ohms, a frequency range from DC to 2.5GHz, and a VSWR of no more than 1.25. These parameters ensure minimal signal reflection and loss, allowing for stable and efficient data flow. Additionally, the low and stable intermodulation characteristics keep the signal pure, free from interference that could degrade performance in demanding applications.
Robust Mechanical and Environmental Specifications
Durability is critical in communication systems, especially when installed outdoors or in harsh conditions. This assembly is built to last, with a minimum of 500 mating cycles, ensuring long-term reliability. Its IP68 protection rating means it is fully waterproof and dustproof, capable of withstanding submersion and particulate ingress. The operating temperature range of -40°C to +85°C makes it suitable for extreme climates, from freezing cold to scorching heat. Moreover, it is fully compliant with RoHS standards, aligning with global environmental regulations.
Technical Specifications at a Glance
To provide a clear overview of all critical parameters, here is a comprehensive table of specifications for the RG223 jumper assembly:
| Parameter | Specification |
|---|---|
| Model | MOP-JC-RG223-MM-SMAM |
| Cable Type | RG223 |
| Length | As per customized (standard 1 meter) |
| Connector A | 4.3-10 Male |
| Connector B | SMA Male |
| Pin Material | Brass / Au Plating |
| Body Material | Brass / Ni Plating |
| Insulator Material | PTFE |
| Gasket Material | Silicone Rubber |
| Impedance | 50 ohm |
| Frequency Range | DC – 2.5 GHz |
| VSWR | ≤ 1.25 |
| Dielectric Withstanding Voltage | ≥ 2500 V RMS, 50 Hz |
| Dielectric Resistance | ≥ 5000 MΩ |
| Mating Cycles | ≥ 500 |
| Watertightness | IP68 |
| RoHS Compliance | Fully Compliant |
| Temperature Range | -40°C ~ +85°C |
Applications and Versatility
This RG223 jumper assembly is ideal for a wide range of communication setups, including cellular base stations, wireless infrastructure, test labs, and industrial RF systems. Its male-to-male configuration allows for easy integration between devices with 4.3-10 and SMA ports. The combination of waterproofing and broad temperature tolerance makes it particularly valuable for outdoor antenna connections, where exposure to elements is unavoidable. Whether you are upgrading an existing network or building a new one, this assembly simplifies installation while ensuring long-term signal quality.
Conclusion: Invest in Reliability with the RG223 Jumper Assembly
When you choose our 1-meter RG223 jumper assembly, you are investing in a connection solution that prioritizes performance, durability, and ease of use. From its gold-plated pins and nickel-plated body to its IP68-rated sealing and low VSWR, every component is optimized for reliable communication. The comprehensive specifications—such as 50-ohm impedance, DC to 2.5GHz frequency support, and robust mechanical endurance—ensure that your equipment operates at peak efficiency. Don’t compromise on connectivity in critical environments. Build a stable and efficient bridge for your communication equipment with this RG223 jumper assembly, and experience the difference that professional-grade engineering makes.
