Introducing the Next Generation of Prison Signal Jamming Systems
n
As the demand for reliable communication control in correctional facilities continues to grow, signal shielding solutions for prisons have undergone significant transformation. In many existing prisons and detention centers, traditional wall-mounted analog jammers remain the standard. These older systems operate by transmitting sweeping signals through voltage-controlled oscillators (VCO) across the full frequency band, disrupting both uplink and downlink traffic to and from nearby base stations. However, this broad-spectrum approach often causes severe interference with legitimate communications in surrounding areas, undermining both security and operational efficiency. Recognizing these limitations, leading technology providers are now developing more intelligent and adaptive solutions.
n

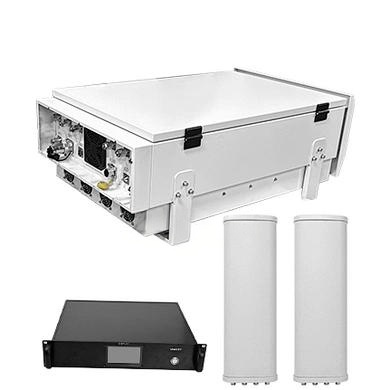

At MOP TECH, we are proud to announce our adjustable frequency 10-channel prison signal jamming system. This innovative platform delivers intelligent shielding of all-standard signals, real-time system monitoring, and precise regional and time management. The digital signaling-level intelligent shielding system integrates several sophisticated components, including outdoor signal acquisition antennas, shielding main equipment (comprising near-end and remote units), a passive indoor distribution system, and a comprehensive communication detection and control platform. By carefully analyzing the plane structure, area size, and wall barriers of each facility, and combining this with on-site operator network signal testing, we deploy telecom operator-level passive indoor distribution systems in critical zones such as prison cells, canteens, workshops, confinement rooms, and teaching rooms. Shielding points on each floor are determined according to design requirements and specific installation locations, ensuring optimal coverage without unnecessary spillover.
n
Key Features of an Advanced Prison Signal Jamming System
n
Our adjustable-frequency prison signal jamming system redefines precision shielding by combining operator-grade passive distribution, real-time monitoring, and adaptive signal suppression. This approach ensures strict compliance with security protocols while minimizing collateral interference that could disrupt emergency services or civilian communications. By addressing the inherent flaws of traditional analog jammers, we deliver a durable, future-proof solution tailored to the unique structural and operational demands of modern detention facilities.
n
Technical Specifications and Frequency Parameters
nn
| Channel | Frequency Band | Module Type | RF Power |
|---|---|---|---|
| CH1 | 750–866 MHz | Digital | 100W |
| CH2 | 855–900 MHz | Digital | 100W |
| CH3 | 940–980 MHz | Digital | 100W |
| CH4 | 1240–1300 MHz | Digital | 100W |
| CH5 | 1800–1995 MHz | Digital | 100W |
| CH6 | 2100–2170 MHz | Digital | 100W |
| CH7 | 2300–2480 MHz | Digital | 100W |
| CH8 | 2620–2700 MHz | Digital | 100W |
| CH9 | 3300–3600 MHz | Digital | 100W |
| CH10 | 5150–5725 MHz | Digital | 100W |
nn
Additional Operational Specifications
n
| Parameter | Specification |
|---|---|
| Antenna Type | 5-Bands Outdoor Directional Panel Antenna (2 pcs) |
| Power Supply | AC: 110V–240V / DC: 28V |
| Power Consumption (Full System) | 2000W |
| Operating Temperature & Humidity | -20°C to +50°C / ≤80% |
| System Response Time | ≤ 30 seconds (from boot to normal operation) |
nn
In conclusion, the evolution of the prison signal jamming system represents a critical leap forward in correctional security technology. By moving away from indiscriminate analog interference and embracing digital, adaptive, and monitored solutions, facilities can achieve precise control over unauthorized communications while preserving essential connectivity for authorized personnel and the surrounding community. MOP TECH’s adjustable frequency 10-channel system exemplifies this new standard, offering robust performance, flexible configuration, and seamless integration with existing infrastructure. Whether deployed in crowded cell blocks or sensitive administrative areas, our technology ensures that the signals that matter are managed—and those that threaten security are effectively neutralized.
