Unleashing the Power of the 3000-6000MHz RF Power Amplifier Module
nnIn the fast-paced world of modern communications and electronic equipment, the stability and strength of a signal can make all the difference. Whether you are managing complex industrial automation systems or conducting cutting-edge scientific research, a reliable amplifier is the backbone of seamless data transmission. Enter the 100W wideband power amplifier module—an exceptional 3000-6000MHz RF power amplifier designed to meet the most demanding signal amplification needs. This article delves into the technical prowess, application versatility, and robust design of this module, ensuring you have all the insights to make an informed choice.nn
Why the 3000-6000MHz RF Power Amplifier Stands Out
nnThe core of this module is its ability to deliver a powerful 100W wideband output power across the frequency range of 3000 to 6000MHz. This frequency band is vital for modern communication systems, including wireless infrastructure, satellite links, and radar applications. By boosting signal strength while maintaining clarity, it effectively extends coverage areas and enhances transmission reliability. Unlike standard amplifiers that struggle with bandwidth limitations, this module offers consistent performance across the entire spectrum, making it a versatile solution for diverse environments.nn
Technical Specifications: A Closer Look at Performance
nnTo understand the capabilities of this 3000-6000MHz RF power amplifier, let’s examine its technical parameters. The following table provides a comprehensive overview of the key specifications that define its operation.nn
| Parameter | Specification |
|---|---|
| Working Frequency | 3000–6000 MHz |
| Saturated Power Output | 49 ± 1 dBm |
| Gain | 49 ± 2 dB |
| In-Band Flatness | ± 1.5 dB |
| Working Current | ≤ 9 A |
| Input and Output VSWR | ≤ 1.5:1 |
| Out-of-Band Spurs (9 kHz–1 GHz) | ≤ -36 dBm/30 kHz |
| Out-of-Band Spurs (1 GHz–12.75 GHz) | ≤ -30 dBm/30 kHz |
| Maximum Lossless Input | +10 dBm |
| Operating Voltage | DC +32 V |
| Power Supply Interface | 2W2 |
| RF Port: RF In | SMA-KFD |
| RF Port: RF Out | N-F |
| Monitoring Interface | DB9: Pin 1 – TEMP, Pin 3 – VSWR |
| Amplifier Size | 186 × 94 × 26 mm |
| Operating Temperature | -10°C to +55°C |
| Relative Humidity | 5% to 95% (Non-condensing) |
| Storage Temperature | -25°C to +65°C |
nnThese specifications highlight the amplifier’s precision and durability. The high gain and low VSWR ensure minimal signal reflection and maximum power transfer, while the robust out-of-band spur suppression guarantees clean transmission in sensitive applications.nn
Design and Connectivity: Built for Reliability

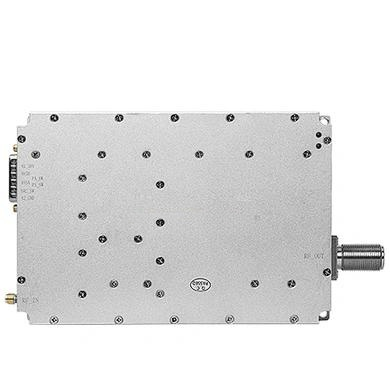

nnThe interface design of this 3000-6000MHz RF power amplifier is thoughtfully engineered for convenience and stability. The combination of an SMA-KFD RF input interface and an N-F RF output interface provides a secure and efficient connection. The SMA connector is ideal for high-frequency signals from sources like signal generators, while the N-type connector offers low loss and ruggedness for output to antennas or subsequent equipment. Whether you are integrating the module into a lab setup or a field-deployed system, these interfaces simplify cabling and reduce the risk of signal degradation.nn
Applications Across Industries
nnThe versatility of this module makes it suitable for a wide range of applications. In industrial automation, it amplifies control signals for robotic systems or sensor networks, ensuring reliable operation in noisy environments. In scientific research and testing, it serves as a key component for driving antennas in electromagnetic compatibility (EMC) tests or for boosting signals in material analysis. Its ability to function over a broad temperature and humidity range—from -10°C to +55°C and 5% to 95% relative humidity without condensation—means it can withstand challenging conditions, from humid factory floors to cold outdoor installations.nn
Environmental Adaptability and Long-Term Performance
nnThe module’s design prioritizes resilience. The storage temperature extends from -25°C to +65°C, allowing for safe transport and storage in extreme climates. The monitoring interface, featuring temperature and VSWR pins via a DB9 connector, enables real-time diagnostics. This proactive feature helps prevent overheating or mismatch failures, ensuring long-term reliability. Whether you are operating in a controlled lab or a harsh field environment, this amplifier delivers consistent power and signal integrity.nn
Conclusion: Elevate Your Signal with This 3000-6000MHz RF Power Amplifier
nnChoosing the right amplifier is critical for any project that demands robust signal amplification. The 100W wideband power amplifier module, as a premier 3000-6000MHz RF power amplifier, combines high power output, wide bandwidth, and rugged construction. Its technical specifications, detailed in the table above, reflect a commitment to performance and reliability. From seamless connectivity with SMA and N-type interfaces to its ability to perform in diverse environmental conditions, this module is engineered to exceed expectations. By selecting this solution, you invest in advanced technology and a proven track record of stability and efficiency. Embrace a signal amplification solution that not only meets but surpasses your requirements—choose this RF power amplifier for your next communication or testing endeavor.
