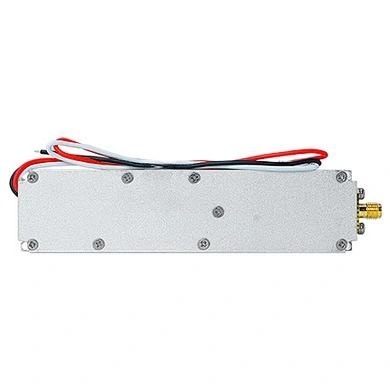

Unleashing Precision: Exploring the 10W RF Amplifier VCO Signal Generator 1560–1620MHz
nn
In the demanding world of RF engineering, precision and reliability are non-negotiable. The 10W RF Amplifier VCO Signal Generator 1560–1620MHz emerges as a standout solution for professionals seeking robust signal amplification within a critical frequency band. This device isn’t just another component; it represents a seamless integration of a voltage-controlled oscillator (VCO) and a high-power RF amplifier, delivering exceptional performance in a compact footprint. Whether your application involves telecommunications, test equipment, or advanced radar systems, this amplifier is engineered to meet stringent specifications without compromise. Let’s examine what makes this 10W RF Amplifier so effective, from its electrical parameters to its mechanical resilience.
nn
Understanding the Specifications of the 10W RF Amplifier
nn
At the heart of this device is a powerful RF chain that achieves saturated power output of 40dBm (10 Watts) with remarkable consistency. The unit’s 40dB gain ensures even weak input signals receive substantial amplification, while the VCO technology offers frequency agility within the 1560–1620MHz range. The result is a signal generator that provides both high output power and stable, tunable frequency generation. To fully appreciate its capabilities, review the detailed technical specifications below.
nn
| Parameter | Value |
|---|---|
| Working Frequency | 1560 – 1620 MHz |
| Saturated Power Output | 40 ± 1 dBm |
| Gain | 40 dB |
| In-Band Flatness | Not specified (customizable per application) |
| Operating Current | ≤ 1 A |
| Input & Output VSWR | ≤ 1.5 |
| Out-of-Band Spurs | 9 kHz – 1 GHz: ≤ -36 dBm / 30 kHz 1 GHz – 12.75 GHz: ≤ -30 dBm / 30 kHz |
| Maximum Lossless Input | +10 dBm |
| Operating Voltage | DC +28 V |
| Power Supply Interface | Feed-through capacitor |
| RF Port | SMA-KFD |
| Monitoring Interface | Feed-through capacitor |
| Feed-through capacitor with VCO | Yes |
| Amplifier Size | 112 × 38 × 18 mm |
| Operating Temperature | -30 to +65 °C |
| Relative Humidity | 5% – 95% (non-condensing) |
| Storage Temperature | -30 to +65 °C |
nn
Key Performance Features of the 10W RF Amplifier VCO Signal Generator
nn
The 10W RF Amplifier VCO Signal Generator 1560–1620MHz is more than a list of figures; it is a carefully engineered tool that ensures reliable performance across diverse environments. One of its standout features is the low input and output VSWR of ≤1.5, which minimizes signal reflections and maximizes power transfer. This is especially critical in high-frequency designs where impedance mismatches can degrade system efficiency. Furthermore, the compact amplifier size of 112×38×18mm allows it to fit into tight enclosures without sacrificing output power.
nn
Environmental Durability and Electrical Integrity
nn
Designed for real-world deployment, this product operates across a wide temperature range of -30°C to +65°C and handles relative humidity from 5% to 95% (non-condensing). Whether deployed in a laboratory or remote field installation, the unit maintains stability. The use of feed-through capacitors for both the power supply and monitoring interfaces reduces electromagnetic interference and ensures clean DC delivery. Additionally, the SMA-KFD RF port offers robust connectivity, while the spurious emission levels—≤ -36dBm/30kHz up to 1GHz and ≤ -30dBm/30kHz beyond—demonstrate excellent spectral purity.
nn
Integrating the 10W RF Amplifier into Your System
nn
When you choose this 10W RF Amplifier, you are selecting a solution that combines the tunability of a VCO with the power output of a dedicated amplifier. This integration simplifies circuit design by reducing the number of discrete components while enhancing reliability. The device’s maximum lossless input of +10dBm means it can handle strong precursor signals without damage, making it an ideal final-stage driver for antennas or test setups. The operating voltage of DC +28V aligns with standard industrial power supplies, simplifying integration into existing racks or portable units.
nn
Practical Applications and Considerations
nn
Given its frequency range and output power, this amplifier is well-suited for L-band transmitters, satellite uplinks, and wireless infrastructure testing. The integrated VCO allows for fine frequency adjustments, making it valuable in research and development settings where signal agility is essential. Remember to provide adequate heat sinking given the power dissipation levels, and always ensure that the input signal does not exceed the specified maximum to maintain the device’s performance longevity.
nn
Conclusion
nn
The 10W RF Amplifier VCO Signal Generator 1560–1620MHz delivers a compelling combination of power, precision, and practicality. With saturated output of 40dBm, 40dB gain, and a stable VCO core, it addresses the needs of engineers working within the 1560–1620MHz band. Its robust environmental specifications and low VSWR further enhance its utility in challenging conditions. For those requiring a compact, high-performance 10W RF Amplifier that can be relied upon across temperature extremes and demanding RF environments, this unit is a prime candidate. Carefully consider your system’s thermal management and power requirements to fully exploit the amplifier’s capabilities.
