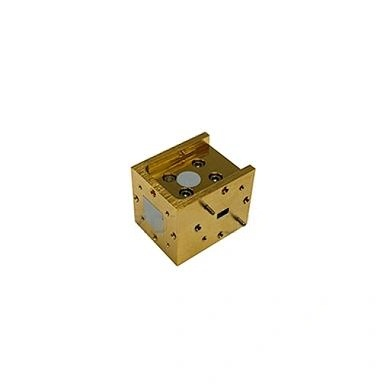

Exploring the W-Band 10W Solid-State Power Amplifier (SSPA)
nn
In today’s fast-paced world, communication technology acts as the vital bridge connecting people, devices, and entire systems across the globe. As we push the boundaries of connectivity, the demand for high-frequency, high-power components grows ever more critical. At the heart of many advanced communication and radar systems lies a pivotal piece of technology: the solid-state power amplifier (SSPA). This component is designed to amplify weak signals, ensuring that information is transmitted with exceptional clarity and over longer distances. Among the most advanced iterations of this technology is the W-band 10W solid-state power amplifier (SSPA), a high-performance millimeter wave amplifier tailored for the most demanding high-frequency applications.
nn
Operating within the 92-96 GHz frequency range, this solid-state power amplifier (SSPA) delivers a robust rated power output of +40 dBm, equivalent to 10 watts. This level of performance is not just about raw power—it’s about maintaining signal integrity in environments where precision and reliability are non-negotiable. Whether supporting military radar systems, enabling high-speed satellite communication, or bolstering electronic warfare capabilities, the W-band 10W SSPA ensures that signals remain strong and clear, even under challenging conditions. Its design focuses on amplifying high-frequency signals efficiently, which directly enhances detection ranges and overall system performance.
nn
The Role of the Solid-State Power Amplifier in Modern Systems
nn
The solid-state power amplifier (SSPA) has become an indispensable component in fields that demand exceptional performance at millimeter wave frequencies. Unlike traditional traveling wave tube amplifiers (TWTAs), solid-state amplifiers offer superior reliability, longer operational life, and improved efficiency. The W-band 10W SSPA exemplifies these benefits, providing a compact yet powerful solution for high-frequency applications. Its high gain of at least 15 dB ensures that even weak input signals are boosted to usable levels, making it ideal for scenarios where signal loss must be minimized.
nn
Key Applications of the W-Band 10W SSPA
nn
This solid-state power amplifier (SSPA) is widely deployed across several critical sectors. In military radar systems, it improves target detection and tracking capabilities by ensuring that transmitted pulses retain sufficient strength. Satellite communication systems benefit from its ability to maintain signal clarity over vast distances, reducing errors and enhancing data throughput. Electronic warfare systems rely on its consistent performance to jam or deceive adversary sensors effectively. Additionally, scientific research applications, such as atmospheric studies and radio astronomy, leverage its high frequency and power output to gather precise data. The adaptability of the W-band 10W SSPA makes it a cornerstone technology for pushing the limits of what is possible in high-frequency engineering.
nn
Why Choose a Solid-State Power Amplifier?
nn
The decision to use a solid-state power amplifier (SSPA) over other amplification technologies often comes down to reliability and performance. SSAs are built with semiconductor materials that offer greater resistance to shock and vibration, making them suitable for mobile and airborne platforms. The W-band 10W SSPA, in particular, is engineered to operate across a wide temperature range, from -40°C to +60°C, ensuring functionality in harsh environments. Its compact dimensions—70×60×30 mm—and lightweight design (1 kg) allow for easy integration into existing systems without adding unnecessary bulk. These attributes, combined with low power consumption relative to output, make it an efficient choice for modern high-frequency systems.
nn
Technical Specifications of the W-Band 10W SSPA
nn
To fully appreciate the capabilities of this W-band 10W solid-state power amplifier (SSPA), it is essential to review its technical specifications. Below is a comprehensive table detailing the electrical, mechanical, and environmental parameters that define its performance.
nn
| Parameter Category | Specification | Value |
|---|---|---|
| Electrical Specifications | Frequency Range | 92-96 GHz |
| Rated Power | +40 dBm / 10W | |
| Gain | ≥15 dB | |
| Power Supply | 24 VDC | |
| Power Consumption | 50W | |
| Mechanical Specifications | Dimension | 70 × 60 × 30 mm |
| Weight | 1 kg | |
| RF I/O Connectors | WR10 / BJ900 | |
| Environmental Specifications | Operating Temperature | -40°C to +60°C |
| Storage Temperature | -50°C to +70°C |
nn
Conclusion: Harnessing the Power of the Solid-State Power Amplifier
nn
In conclusion, the W-band 10W solid-state power amplifier (SSPA) stands as a testament to the progress in millimeter wave technology. Its ability to deliver reliable, high-power amplification in the 92-96 GHz band makes it an essential component for advancing radar, communication, and electronic warfare systems. By choosing this solid-state power amplifier (SSPA), engineers and system designers can ensure that their applications achieve the highest levels of performance, even in the most demanding environments. We welcome inquiries from professionals seeking to integrate this technology into their projects. If you are interested in our products, we would be delighted to collaborate and contribute to the continued development of high-frequency communication and sensing systems. Together, we can drive innovation forward, one amplified signal at a time.
