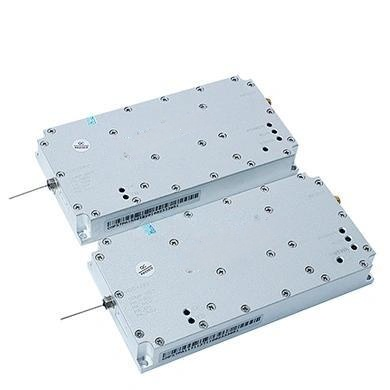

Unleashing the Power: The High-Performance 100W Power Amplifier with VCO Signal Source Module
nn
In the demanding world of RF engineering, precision and reliability are non-negotiable. The MOP-PA series, including the MOP-PA-1550/1620M-100W and MOP-PA-1171/1371M-100W, delivers a robust solution for high-power applications. These models combine a 100W power amplifier with a built-in VCO signal source, offering exceptional performance across critical frequency bands. Whether you are working in communications, testing, or electronic warfare, this module provides the stable, high-output power you need. Designed for professional use, it integrates advanced protection features and a high-speed noise modulation signal source, making it a versatile tool for any RF engineer. Let’s explore the specifications and capabilities that set this unit apart.
nn
Comprehensive Technical Specifications for Model MOP-PA-1550/1620M-100W
nn
The 1550-1620 MHz variant is engineered for specific bandwidth requirements. Below are the detailed technical parameters that define its performance.
nn
| Testing Item | Specs | Remark |
|---|---|---|
| Power Amplifier Freq (MHz) | 1550-1620 | |
| Bandwidth (MHz) | 70 | |
| Max. Output Power (dBm) | 50±1dBm | |
| Operating Voltage | DC+28V | |
| Operating Current | ≤8.5A @100W | |
| In-band Ripple (dB) | ±1dB | |
| Input/Output VSWR | ≤1.5 | |
| Power Stability | ±1dB @ –20～+55°C | |
| Output RF Connector | SMA-50KFD | |
| Operating Environmental Temperature | –20～+55°C | |
| Dimension | 1869426mm | |
| Protection | Temp warning, VSWR warning | |
| Switch (feedthrough capacitor) | 3.3V/5V: ON; 0V: OFF | |
| Input Signal Source | Built-in high-speed noise modulation signal source | |
| Power Supply Input (feedthrough capacitor) | 28V power input, GND |
nn
Comprehensive Technical Specifications for Model MOP-PA-1171/1371M-100W
nn
For applications requiring a wider bandwidth, the 1171-1371 MHz model offers a broader operational range while maintaining the same power output. The detailed parameters for this 100W power amplifier variant are provided below.
nn
| Testing Item | Specs | Remark |
|---|---|---|
| Power Amplifier Freq (MHz) | 1171-1371 | |
| Bandwidth (MHz) | 200 | |
| Max. Output Power (dBm) | 50±1dBm | |
| Operating Voltage | DC+28V | |
| Operating Current | ≤8.5A @100W | |
| In-band Ripple (dB) | ±1dB | |
| Input/Output VSWR | ≤1.5 | |
| Power Stability | ±1dB @ –20～+55°C | |
| Output RF Connector | SMA-50KFD | |
| Operating Environmental Temperature | –20～+55°C | |
| Dimension | 1869426mm | |
| Protection | Temp warning, VSWR warning | |
| Switch (feedthrough capacitor) | 3.3V/5V: ON; 0V: OFF | |
| Input Signal Source | Built-in high-speed noise modulation signal source | |
| Power Supply Input (feedthrough capacitor) | 28V power input, GND |
nn
Key Features and Applications of the 100W Power Amplifier Module
nn
Beyond the raw specifications, this 100W power amplifier module is designed for real-world performance. The integrated VCO signal source eliminates the need for external signal generators, simplifying system integration. The built-in high-speed noise modulation signal source is particularly useful for jammer and electronic countermeasure systems, where rapid signal modulation is critical. The compact dimension of 1869426mm allows for easy installation into existing racks or enclosures.
nn
Robust Protection and Control Features
nn
Reliability is ensured through multiple protection mechanisms. The unit includes temperature and VSWR warnings to prevent damage from overheating or antenna mismatch. The switch function, controlled via a feedthrough capacitor with 3.3V/5V for ON and 0V for OFF, enables remote operation. Operating across a temperature range of –20 to +55°C and requiring a steady DC+28V supply, this amplifier is built for harsh environments. The SMA-50KFD output connector ensures a secure and standard RF interface.
nn
Optimizing Performance with the 100W Power Amplifier
nn
To achieve the best results with this 100W power amplifier, consider the following best practices. First, ensure your power supply can deliver the required ≤8.5A at 28V without significant voltage drop. Second, maintain an input/output VSWR of ≤1.5 to maximize power transfer and stability. The unit’s power stability of ±1dB across the full temperature range ensures consistent performance, but proper heat sinking is recommended for continuous high-power operation. The VCO signal source flexibility allows for integration into various testing and communication systems, making this module a powerful asset for any RF engineer.
nn
In conclusion, the MOP-PA-1550/1620M-100W and MOP-PA-1171/1371M-100W models represent a significant advancement in integrated RF amplification. By combining a high-power amplifier with a built-in signal source, these modules offer unmatched convenience and reliability. Whether you need the narrow-band precision of the 1550-1620 MHz version or the wide-band flexibility of the 1171-1371 MHz variant, this 100W power amplifier delivers the performance and durability required for modern RF challenges. Its robust protection features ensure long-term operation, making it a worthy investment for professional applications.
