China Moneypro 20W High Gain Manufacturer Lightweight 47-51GHz RF SSPA Module for Radar

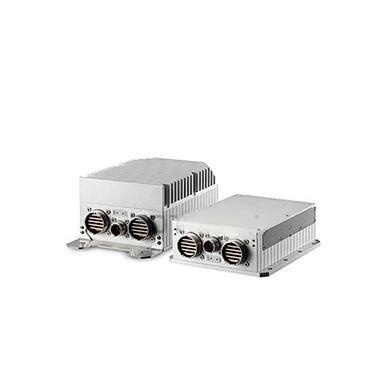

Unleashing the Power of V-Band Signal Processing: The 20W Solid-State Power Amplifier

n

In the demanding realms of wireless communications, radar detection, and high-end RF signal processing, the quality of a power amplifier can make or break an entire system. Engineers and researchers constantly seek components that deliver not just raw power, but also pristine signal integrity and unwavering reliability. Enter the V-band 20W solid-state power amplifier (SSPA), a sophisticated solution engineered to excel in these challenging environments. This amplifier has become a trusted ally for countless professional applications, bridging the gap between theoretical performance and real-world operational demands. Its robust design ensures that even in the most complex RF landscapes, signals are amplified with minimal distortion, paving the way for clear, high-speed data transmission and precise detection capabilities.

n

At its core, this V-band 20W solid-state power amplifier (SSPA) offers a remarkable blend of performance metrics that set it apart. Whether you are developing next-generation communication links, performing critical scientific research, or deploying industrial radar systems, this amplifier provides the foundation for success. By carefully balancing high output power with exceptional signal purity, it addresses the most stringent requirements of modern RF engineering.

nn

Exceptional Frequency Coverage and Rated Power

n

Broad and Accurate Frequency Adaptation

n

The amplifier operates across the critical V-band frequency range of 47-51 GHz. This precise coverage allows it to seamlessly integrate into a wide array of high-end RF systems, from point-to-point backhaul links to advanced radar platforms. The accuracy in frequency adaptation ensures that the amplifier can handle the specific demands of each application without requiring cumbersome external adjustments, thus simplifying system design and enhancing overall reliability.

n

Robust Power Output for Demanding Applications

n

With a rated power of an impressive +43dBm, or 20 Watts, this SSPA provides the necessary energy boost for signals traversing complex environments. This power level is particularly beneficial for short-distance high-speed communication links, where maintaining signal integrity over atmospheric challenges is paramount. The ample power reserve ensures that even in the presence of interference or path loss, the system can maintain a strong and stable connection.

nn

Precision Gain Control and Stability in the V-band 20W Solid-State Power Amplifier

n

Fine-Tuning for Optimal Performance

n

One of the standout features of this V-band 20W solid-state power amplifier (SSPA) is its sophisticated gain adjustment function. Users can fine-tune the gain in minute 0.1dB steps across a broad range of 0 to 23dB. This level of granularity is invaluable for systems that require precise calibration, allowing engineers to dial in the exact amplification needed for any given signal condition. Whether compensating for cable losses or optimizing for different data rates, this flexibility ensures the amplifier always operates at its peak efficiency.

n

Unwavering Consistency Over Time and Frequency

n

Long-term reliability is a hallmark of high-quality RF components. This amplifier delivers gain flatness of just 0.5dBp-p across its entire operating bandwidth, ensuring that all frequency components of a signal are amplified uniformly. Furthermore, its gain stability is ±0.5dB over 24 hours, a critical specification for continuous operation in mission-critical systems. This exceptional stability ensures that the signal quality remains consistent, eliminating the need for frequent recalibration and providing peace of mind for long-duration projects.

nn

Superior Signal Purity and Low Distortion

n

Minimizing Interference and Noise

n

In the world of RF, signal purity is everything. The SSPA excels in this domain with a spurious signal suppression better than -60dBc. This effectively curbs the influence of unwanted signals, keeping the transmission channel clean and reliable. Simultaneously, the noise power density is ≤ -135dBW/4kHz, drastically reducing the noise floor. Together, these specifications ensure that the amplified signal retains its high fidelity, which is crucial for sensitive receivers and high-order modulation schemes.

n

Key Metrics for High-Fidelity Amplification

n

Beyond basic noise and spurious performance, the amplifier’s linearity is exceptional. The third-order intermodulation (IM3) is -23dBc, while the AM/PM characteristic is ≤3°/dB, and the group delay is ≤0.5ns(p-p). These advanced metrics are the bedrock of high-quality signal processing. They ensure that complex modulated signals are amplified without introducing distortion, preserving the accuracy and stability of the information being transmitted. For applications like high-throughput satellite communications or advanced radar systems, these parameters are non-negotiable.

nn

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

nn

Practical Integration and Robust Design

n

The V-band 20W solid-state power amplifier (SSPA) is not just about raw performance; it is designed for seamless integration. It operates on a standard 220VAC (47-63Hz) power supply, making it easy to deploy in any lab or industrial setting. With a power consumption of only 160W, it is remarkably energy-efficient for its output class. Its compact dimensions of 260×190×110mm and moderate weight of 6.0Kg simplify installation into larger systems or test benches. The RF interface uses industry-standard connectors—a 1.85mm-F input and WR19/BJ500 output—ensuring excellent compatibility with existing equipment. Furthermore, the communication interface offers multiple options including LAN, RS485, RS422, and RS232, allowing for flexible remote control and real-time system monitoring.

nn

Conclusion: A Versatile Solution for Critical RF Systems

n

The V-band 20W solid-state power amplifier (SSPA) stands out as a premier choice for engineers and researchers who refuse to compromise on signal quality or system reliability. Its meticulous design covers every critical aspect of amplifier performance, from precise gain control and exceptional stability to outstanding signal purity and practical integration features. Whether applied in rigorous scientific research projects or demanding industrial applications, this amplifier provides a dependable and efficient amplification solution. By combining robust power with high-fidelity signal processing, it ensures that your RF system can operate at its fullest potential, delivering consistent, high-quality results in even the most challenging conditions. For those seeking a reliable partner in RF excellence, this SSPA is an investment in performance and peace of mind.
