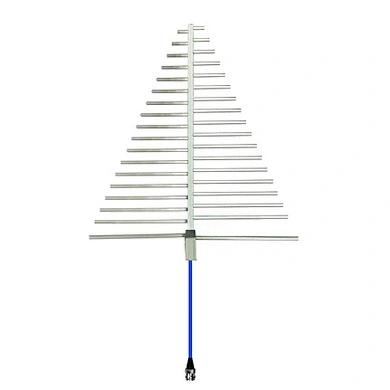

Exceptional Wideband Performance: The MOP-LPDA-300/1600M High Gain LPDA Antenna for Jamming
nnThe MOP-LPDA-300/1600M stands as a pinnacle of antenna engineering, designed to deliver robust, consistent performance across the demanding 300-1600 MHz spectrum. This high gain LPDA antenna for jamming is meticulously crafted for professionals who require unparalleled signal focus, reliability, and durability in both commercial and specialized defense applications. Its ultra-wide bandwidth eliminates the need for multiple narrowband antennas, offering a streamlined solution for complex RF environments.nnEngineered for precision, this wideband directional antenna provides a steady 9 dBi gain, coupled with a tightly controlled 65±5° horizontal beamwidth and an impressive 17 dB front-to-back ratio. This combination ensures optimal signal focus and exceptional rejection of unwanted interference, making it a superior choice for applications from 5G infrastructure to electronic countermeasures. The robust construction, featuring 6063T6 aluminum alloy elements and marine-grade stainless steel hardware, guarantees reliable operation in extreme conditions, from -30°C to +70°C and wind loads up to 200 km/h.nn
Technical Specifications and Construction of the High Gain LPDA Antenna for Jamming
nnThe architecture of this antenna supports high-efficiency energy transfer and long-term reliability. With a VSWR of 1:2.5 across the entire band, it ensures minimal power loss, while its 100W power handling capacity makes it compatible with high-power transmission systems. The N-female connector provides a secure, standard interface for various setups. Designed for versatility, it supports both vertical and horizontal polarization, adapting to diverse deployment scenarios.nnAll technical data and material specifications are consolidated in the table below for clear and immediate reference.nn
| Parameter | Specification |
|---|---|
| Model | MOP-LPDA-300/1600M |
| Frequency Range (MHz) | 300-1600 MHz |
| Gain (dBi) | 9 dBi |
| Bandwidth | Entire Band |
| Polarization | Vertical or Horizontal |
| Input Impedance | 50 Ohm |
| Radiation Pattern | Directional |
| Horizontal Beamwidth (Half Power Points) | 65 ± 5 Degrees |
| Front to Back Ratio | 17 +/- 1 dB |
| VSWR (better than) | 1:2.5 |
| RF Power Handling Capacity | 100W |
| Connector | N-Female |
| Lighting Protection | DC Ground |
| Support Booms & Radiating Elements Material | 6063T6 Aluminum Alloy |
| Mounting Hardware Material | Marine Grade Stainless Steel |
| Wind Rating | 200 Km/Hr |
| Overall Length | 1.2 M |
| Overall Width | 1 M |
| Support Boom Material | Aluminum – Square Tube |
| Elements Material | Aluminum – Round Rod |
| Mounting Clamps Position | At the back end of antenna |
| Operating Temperature | (-)30 to +70 Degrees Celsius |
| Storage Temperature | (-)40 to +80 Degrees Celsius |
| Humidity | 0 to 95% RH |
| Color | White or Black |
nn
Deployment Versatility: From 5G High Gain Antenna to Electronic Warfare
nnThe mechanical design of this wideband directional antenna is as sophisticated as its electrical performance. With a 1.2-meter length and 1-meter width, it strikes an ideal balance between a compact form factor and superior electromagnetic characteristics. The aluminum square tube boom and round rod elements are optimized for both durability and signal integrity. Rear-mounted clamps simplify tower or mast installation while ensuring long-term structural stability. For specialized applications, this high gain LPDA antenna for jamming provides exceptional spatial signal control. Its directional pattern enables focused energy delivery, minimizing collateral interference, while the 100W power handling capacity facilitates effective signal dominance in contested environments. The DC ground lightning protection safeguards sensitive equipment during adverse weather, and the white or black radome options offer aesthetic flexibility for urban or covert installations.nn
Superior Signal Control with the High Frequency Antenna Jammer Platform
nnWhen configured as a component in electronic countermeasure systems, the MOP-LPDA-300/1600M delivers reliable, wideband performance. The 17 dB front-to-back ratio significantly reduces rear lobe interference, a critical feature for achieving precise spatial signal control. As a high frequency antenna jammer, its ultra-wide 300-1600 MHz instantaneous bandwidth eliminates the need for frequency-switching setups, allowing for seamless operation across the spectrum. The consistent 9 dBi gain and phase center stability across frequencies ensure minimal signal degradation, even at the upper limits of its range. This makes it equally effective for radar, spectrum monitoring, or as a 5G high gain antenna for next-generation wireless networks. The aluminum alloy components provide excellent corrosion resistance for coastal or high-salinity deployments, and the marine-grade stainless steel hardware guarantees long-term reliability in fixed installations.nn
Conclusion: The Definitive High Gain LPDA Antenna for Jamming and Communications
nnIn summary, the MOP-LPDA-300/1600M redefines expectations for wideband performance. This high gain LPDA antenna for jamming combines robust construction, extreme weather resilience, and exceptional electrical characteristics into a single, versatile platform. Its 300-1600 MHz bandwidth, 9 dBi directional gain, and 17 dB front-to-back ratio provide the spatial signal control demanded by professionals in the most challenging RF scenarios. Whether deployed as a standalone wideband directional antenna or integrated into complex arrays for 5G or defense applications, this antenna delivers uncompromising performance, reliability, and signal fidelity.
