Unlocking Reliable Communication: Understanding the 300-500 MHz Omni Antenna
nnIn the world of wireless communication, the antenna is the unsung hero. Whether you’re deploying a private radio network, enhancing public safety communications, or supporting industrial telemetry, the antenna you choose directly impacts range, clarity, and reliability. The 300-500 MHz Omni Antenna stands out as a versatile workhorse, offering broad coverage across the UHF spectrum. Designed for environments where consistent, omnidirectional performance is non-negotiable, this antenna is engineered to deliver robust signal transmission and reception. Let’s dive into what makes this antenna a cornerstone for professional and demanding applications.nn
Electrical Specifications: The Core of Performance
nnThe backbone of any antenna is its electrical design. This model is finely tuned across the 300-500 MHz range, a critical band for two-way radios, SCADA systems, and cellular boosting. With a voltage standing wave ratio (VSWR) of 3.0 or less, it ensures efficient power transfer, minimizing signal loss and protecting your transmitter. The 2 dBi gain provides a balanced increase in signal strength, ideal for surrounding base stations or mobile units. Its omnidirectional horizontal pattern with a 360-degree beamwidth means no dead zones—every device in the circle receives equal attention. Vertical polarization aligns with most standard UHF systems, while the 50-ohm impedance matches common coaxial cables. Capable of handling up to 100 watts, it suits both low-power and moderate-power transmitters.nn
Key Electrical Parameters at a Glance
nn
| Parameter | Value |
|---|---|
| Frequency Range | 300-500 MHz |
| VSWR | ≤3.0 |
| Gain | 2 dBi |
| Horizontal 3dB Beamwidth | 360° |
| Polarization | Vertical |
| Impedance | 50 Ω |
| Max Power | 100 W |
nn
Mechanical Specifications: Built for the Elements

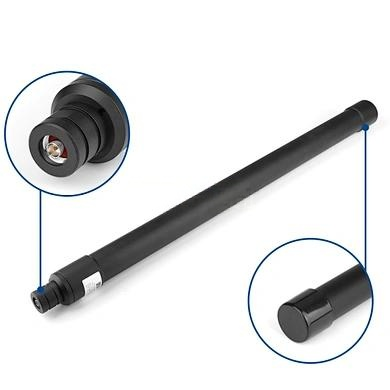

nnDurability is not an afterthought. The antenna features a robust N-male input connector, providing a secure, weather-resistant interface. With a net weight of just 1.5 kilograms (or less), it is light enough for simple mounting yet sturdy enough to withstand harsh conditions. The compact dimensions—650 mm in length by 45 mm in diameter—make it easy to integrate into tight spaces on towers, poles, or vehicles. The radome is crafted from high-quality fiberglass, offering excellent UV resistance, corrosion protection, and structural integrity. The antenna comes in two sections for convenient packaging, transport, and assembly. Its sleek black finish blends into urban or rural landscapes alike.nn
Mechanical and Physical Characteristics
nn
| Specification | Detail |
|---|---|
| Input Connector | N-male |
| Net Weight | ≤1.5 kg |
| Dimensions | 650 mm × 45 mm |
| Radome Material | Fiberglass |
| Composition | 2 Sections |
| Color | Black |
nn
Optimizing Your Communication with the 300-500 MHz Antenna
nnWhen you integrate this antenna into your system, you are choosing reliability and simplicity. Its broad frequency coverage means it can serve multiple applications—from emergency services to IoT gateways—without constant re-tuning. The 360-degree coverage eliminates the need for directional pointing, making installation straightforward on any mast. The fiberglass radome is not only lightweight but also reduces wind load, an important consideration for elevated installations. The two-section design allows for easy storage and quick setup, whether on a rooftop or a temporary tripod. For maximum performance, pair this antenna with low-loss, 50-ohm coaxial cable and ensure proper grounding. Regular visual inspections will keep it performing at peak efficiency for years.nn
Conclusion: A Trusted Choice for Critical Links
nnThe 300-500 MHz Omni Antenna is more than just a piece of hardware—it is a vital link in the communication chain. Its well-tuned electrical specs, rugged mechanical build, and user-friendly design make it a go-to solution for professionals who demand consistent, omnidirectional coverage. Whether you are upgrading an existing network or building a new one from scratch, this antenna offers the balance of performance and durability that keeps signals strong and connections clear. Choose reliability, choose the 300-500 MHz Omni Antenna for your next deployment.
