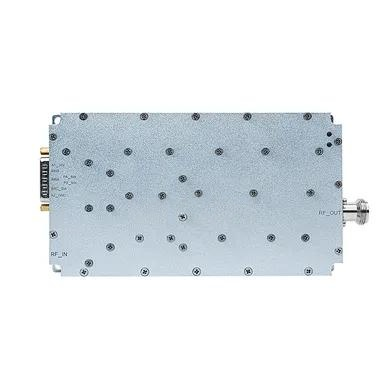

Power Your Communications with the 400-2700MHz 100W Wide Band RF Power Amplifier Module
n
In the fast-paced world of modern telecommunications, the quality of your signal chain is paramount. Whether you are deploying next-generation 5G infrastructure or enhancing industrial communication systems, finding a reliable source of signal amplification is critical. If you have been searching for a high-performance (100W RF amplifier supplier) that delivers on its promises, your search is over. We are excited to introduce the 400-2700MHz 100W Wide Band RF Power Amplifier Module, a robust solution designed to meet the rigorous demands of wideband applications. This module is truly the Best 100W RF Amplifier for Wideband needs, offering unmatched performance and reliability.
n
Unmatched Wideband Performance and Reliability
n
This amplifier module is engineered to excel across a vast frequency spectrum, from 400 MHz to 2700 MHz. This ultra-wideband coverage makes it exceptionally suitable for 5G base stations, military communications, and other advanced wireless technologies. The module handles complex and diverse signal transmission requirements with ease, ensuring your data is transmitted with stable, efficient power at all times.
n
Beyond its impressive bandwidth, the module features a robust protection suite. The built-in VSWR protection circuit (VSWR Protection RF PA Module) actively monitors the antenna load. This function prevents damage from mismatched loads, safeguarding the amplifier’s internal components. Such a reliable protection mechanism is essential for extending the system’s lifespan and minimizing downtime in demanding environments.
n
When you choose this RF power amplifier module, you are investing in quality, efficiency, and dependability. It provides the strong foundation needed for any critical communication system upgrade.
nn
Technical Specifications: The 100W Wide Band RF Power Amplifier Module
n
Below are the detailed technical parameters for the amplifier module. All critical performance metrics are presented for your review.
nn
| Test Item | Specification | Remark |
|---|---|---|
| Frequency Range | 400-2700 MHz | Ultra-wideband coverage |
| Operating Voltage | 32 V | |
| Maximum Output Power | 50 ± 2 dBm | Approximately 100W |
| Operating Current | ≤ 12 A | At full power |
| Controllable Output Power | 100 W | Power adjustable via control pin |
| Gain | 50 ± 1.0 dB | High linear gain |
| In-band Fluctuation | ± 2 dB peak | Across the full band |
| Maximum Allowable Input Power | ≥ +10 dBm | Duration of 1 minute without damage |
| Input Voltage VSWR | ≤ 1.50 | With +28V applied, standard network output at -10 dBm |
| Output Voltage VSWR | ≤ 1.50 | Without power, standard network output at -10 dBm; ≤ 1.50 when powered, tested via dual directional coupler |
| Working Environment Temperature | -10 to +55 °C | Low temperature startup and monitoring function normally |
| Gain Stability | ± 1.5 dB @ -10°C to +55°C | Over full temperature range |
| Power Stability | ± 1.5 dB @ -10°C to +55°C | Over full temperature range |
| Power Supply Requirement | ≥ 8A @ +30 Vdc | For continuous wave output of 100W |
nn
Power Supply, Control Interface, and Mechanical Details
n
The following table provides details on the control interface and physical dimensions of the module.
nn
| Item | Specification | Description |
|---|---|---|
| Power Supply, Control Interface | 7W2 Connector | Combined power and control |
| A1 | VCC +28V | Main power input |
| A2 | GND | Ground connection |
| Pin 1 (TEMP_AL) | Temperature Detection AD | Outputs voltage value proportional to temperature |
| Pin 2 (RUN) | Forward Power Detection AD | Outputs voltage value proportional to forward power |
| Pin 3 (VSWR_AL) | Standing Wave Alarm | High level alarm; low level clears alarm |
| Pin 4 (PA_EN) | Enable Switch | High level (3V~5V) turns ON; low level turns OFF |
| Pin 5 (PA_ADJ) | Power Regulation Input | 0-5V control voltage; 0V = max attenuation, 5V = no attenuation |
| RF Output Connector | N-Female | Standard RF connection |
| Module Dimension | 170 x 94 x 26 mm | Compact form factor |
| Module Protection | Temperature Compensation, Over-temperature Protection, Standing Wave Protection | Comprehensive safeguarding |
| LED Module Indicators | POWER (Green), RUN (Green), VSWR (Red) | Visual status monitoring |
nn
Why This is the Best 100W RF Amplifier for Wideband Applications
n
This module stands out because it combines cutting-edge performance with industrial-grade reliability. Its ultra-wide frequency range from 400 to 2700 MHz covers critical LTE, 5G, and ISM bands, making it a versatile asset for system integrators. The integrated VSWR protection and thermal management ensure consistent operation even under challenging load conditions.
n
For engineers seeking a (100W RF amplifier supplier) that understands the importance of robust specifications, this module delivers. The detailed control interface allows for precise power adjustment and monitoring, while the compact 170 x 94 x 26 mm package makes integration into existing systems straightforward. From the power regulation input (PA_ADJ) to the standing wave alarm (VSWR_AL), every aspect is designed for maximum control and safety.
n
In conclusion, the 400-2700MHz 100W Wide Band RF Power Amplifier Module represents a significant step forward in wideband amplification technology. Its exceptional bandwidth, reliable protection mechanisms, and user-friendly control interface make it the definitive Best 100W RF Amplifier for Wideband projects. Upgrade your communication system today and experience the difference that quality engineering makes. This is your trusted partner from a premier (100W RF amplifier supplier).
