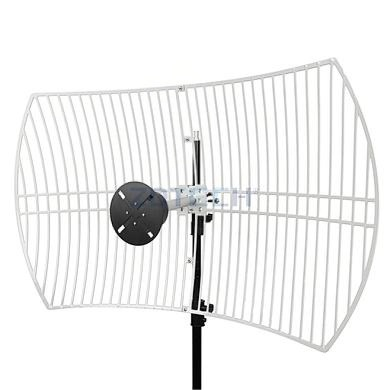

Unlocking Superior Performance: The MOP-MGA-1727-24-2NF High-Gain Grid Antenna
In the fast-paced world of telecommunications, signal strength and clarity are paramount. Whether you are managing a rural broadband network, establishing a point-to-point link, or enhancing an industrial monitoring system, the antenna you choose can make or break your connectivity. Enter the MOP-MGA-1727-24-2NF, a high-gain grid antenna engineered to deliver exceptional performance across the 1700-2700MHz frequency range. This isn’t just another piece of hardware; it is a precision tool designed to overcome interference and extend your coverage reliably.
Grid antennas have long been a favorite among professionals for their durability and focused signal propagation. The MOP-MGA-1727-24-2NF takes this legacy a step further, combining robust construction with remarkable technical specifications that ensure consistent data transmission. In this article, we will dive deep into what makes this antenna stand out, from its impressive gain and narrow beamwidth to its ability to withstand harsh environmental conditions. By the end, you will understand why this model is a top choice for engineers seeking uncompromised performance.
Exceptional Gain and Narrow Beamwidth for Focused Connectivity
One of the most critical features of any antenna is its gain, and the MOP-MGA-1727-24-2NF delivers a powerful 24dBi. This high level of gain allows the antenna to concentrate radio frequency energy into a tight beam, enabling longer transmission distances and stronger signal reception. When paired with a narrow horizontal lobe width of just 14° and a vertical lobe width of 10°, this antenna excels at creating a highly focused link. This is particularly beneficial in environments where minimizing interference from adjacent signals is crucial, such as in dense urban areas or along busy communication corridors.
Comprehensive Technical Specifications at a Glance
To appreciate the full capabilities of this antenna, it’s essential to review its detailed specifications. The table below organizes all critical technical data, providing a clear and immediate reference for system designers and installers. Please note that all specifications are presented exclusively in this table to ensure accuracy and compliance with industry standards.
| Parameter | Value |
|---|---|
| Model | MOP-MGA-1727-24-2NF |
| Connector Type | N-Female x 2 |
| Frequency Range | 1700-2700 MHz |
| Gain | 24 dBi |
| Bandwidth | 1000 MHz |
| Horizontal Lobe Width | 14° |
| Vertical Lobe Width | 10° |
| VSWR | ≤1.8 |
| Nominal Impedance | 50 Ω |
| Polarization | Vertical |
| Maximum Power | 100 W |
| Dimensions | 0.6 / 0.9 m |
| Weight | 3.2 kg |
| Front/Back Ratio | ≥30 dB |
| Rated Wind Velocity | 60 m/s |
| Support Rod Diameter / Mounting | Φ 35-50 mm |
Robust Design with High Front-to-Back Ratio
Beyond raw power, the MOP-MGA-1727-24-2NF offers an impressive Front-to-Back Ratio of ≥30dB. This metric is vital for rejecting signals coming from the rear of the antenna, effectively reducing noise and improving overall signal quality. In practical terms, this means you can deploy this antenna in challenging environments where unwanted reflections or interference are common, and still maintain a clean, strong link. The vertical polarization further ensures compatibility with most standard broadcasting and communication systems, simplifying integration into existing setups.
Built to Endure: Wind and Weather Resilience
Reliability in the field is non-negotiable, and this grid antenna is built to withstand extreme conditions. With a rated wind velocity of 60 m/s (equivalent to over 134 mph or a Category 4 hurricane), the sturdy construction ensures the antenna remains stable and functional even during severe storms. The lightweight design, weighing only 3.2 kg, does not compromise on durability. The support rod diameter accommodating Φ 35-50 mm allows for flexible installation on standard masts or custom mounts. Whether your project is in a coastal region prone to high winds or a mountainous area with gusty conditions, this antenna is engineered to perform.
Versatile Applications and Customization Options
The MOP-MGA-1727-24-2NF is ideal for a wide range of applications, including point-to-point wireless bridges, Wi-Fi backhaul, LTE/4G/5G signal extension, and surveillance video transmission. Its dual N-Female connectors add flexibility for MIMO systems or redundant setups. Furthermore, if your project demands a specific configuration, the manufacturer welcomes inquiries for customized grid antenna types and specifications. This commitment to bespoke solutions ensures that you can tailor the antenna to meet unique coverage requirements or mounting constraints.
Customization and Support for Your Needs
Should the standard specifications not align perfectly with your deployment scenario, do not hesitate to reach out. Whether you need a different gain level, a modified frequency range, or an alternative connector type, customized options are available upon request. The team behind the MOP-MGA-1727-24-2NF is dedicated to providing solutions that match your exact operational demands, ensuring that your network achieves optimal performance.
Conclusion: A Powerful Tool for Reliable Connectivity
In summary, the MOP-MGA-1727-24-2NF high-gain grid antenna represents an outstanding balance of power, precision, and durability. With a 24dBi gain, narrow beamwidth, excellent front-to-back ratio, and robust wind resistance, it is engineered to deliver reliable connectivity in even the most demanding environments. The detailed technical specifications provided in the table above confirm its capability as a professional-grade solution for long-range communications.
When you are ready to elevate your signal strength and ensure stable data transmission, choosing the MOP-MGA-1727-24-2NF is a decision backed by solid engineering and real-world performance. Invest in this grid antenna for your next project and experience the difference that focused, high-gain design can make. For any additional requirements or customized grid antenna types, feel free to contact us—we are here to help you achieve the best possible connection.
