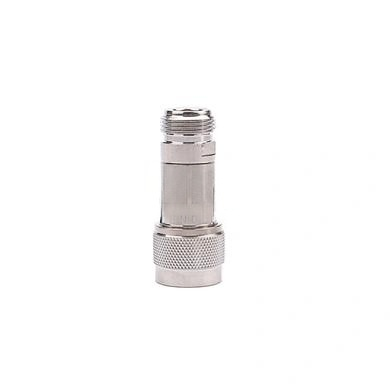

Mastering RF Signal Control: The 50Ohm N-JK 5W 1-40dB DC-6GHz RF Coaxial Attenuator with NM-NF Connector
nnIn the intricate world of radio frequency (RF) engineering, precise signal management is non-negotiable. Whether you are fine-tuning a communication base station, calibrating sensitive test equipment, or optimizing a wireless network, the ability to attenuate signals without introducing distortion is paramount. Enter the 50Ohm N-JK 5W 1-40dB DC-6GHz RF Coaxial Attenuator with NM-NF Connector, a robust and versatile tool designed to give you exacting control over your RF pathways. This attenuator is not just a component; it is a solution for ensuring signal integrity across a broad spectrum of applications.nn
What Makes This Attenuator an RF Signal Control Artifact?
nnThe term artifact often implies something rare or exceptionally crafted, and this attenuator lives up to that label. Engineered to reduce RF signal strength without altering frequency characteristics, it operates seamlessly across a DC to 6 GHz range. This wide frequency coverage makes it indispensable for modern RF systems, from legacy communication infrastructures to cutting-edge 5G deployments. Its 50-ohm impedance ensures compatibility with industry-standard cabling and connectors, minimizing signal reflections and power loss.nnThe core of its functionality lies in its precise attenuation capabilities. With values ranging from a minimal 1dB to a substantial 40dB, you can dial in the exact signal reduction required. Low in-band ripple ensures that the attenuation is consistent across the entire frequency band, preventing signal distortion that could degrade system performance. Whether you need to protect sensitive receivers from overload or balance signal levels in a multi-path setup, this attenuator delivers unwavering precision.nn
Critical Specifications: Why Data Demands a Table
nnTo truly appreciate the technical prowess of this device, we must examine its electrical and mechanical parameters. Presenting structured data in a clear, accessible format is essential for engineers and technicians. Below, you will find the detailed specifications for both standard and low passive intermodulation (PIM) attenuator variants, organized for quick reference and comparison.nn
Standard Attenuator Electrical Specifications
n
| Parameter | Specification / Value |
|---|---|
| Power Handling | 5W, 10W, 25W, 50W, 100W, 200W |
| Frequency Range | DC-3 GHz / DC-6 GHz |
| Attenuation Values | 3 dB, 6 dB, 10 dB, 15 dB, 20 dB, 30 dB |
| In-band Ripple | ≤ 0.3 dB / ≤ 0.5 dB / ≤ 0.7 dB / ≤ 0.8 dB / ≤ 1.0 dB / ≤ 1.2 dB |
| Impedance | 50 Ω |
| Voltage Standing Wave Ratio (VSWR) | ≤ 1.2:1 |
| PIM3 (Passive Intermodulation) | ≤ -120 dBc @ 2×33 dBm ≤ -105 dBc @ 2×43 dBm |
| PIM5 (Passive Intermodulation) | ≤ -145 dBc @ 2×33 dBm ≤ -120 dBc @ 2×43 dBm |
| Connector Type | N-Male, N-Female |
| Operating Temperature | -20°C to +55°C |
| Humidity | ≤ 95% |
nn
Low PIM Attenuator Electrical Specifications
n
| Parameter | Specification / Value |
|---|---|
| Power Handling | 5W, 25W, 50W, 100W, 200W |
| Frequency Range | DC-3 GHz / DC-6 GHz |
| Attenuation Values | 3 dB, 6 dB, 10 dB, 15 dB, 20 dB, 30 dB |
| In-band Ripple | ≤ 0.3 dB / ≤ 0.5 dB / ≤ 0.7 dB / ≤ 0.8 dB / ≤ 1.0 dB / ≤ 1.2 dB |
| Impedance | 50 Ω |
| VSWR | ≤ 1.2:1 |
| PIM3 (Passive Intermodulation) | ≤ -155 dBc @ 2×43 dBm |
| Connector Type | N-Male, N-Female |
| Operating Temperature | -30°C to +65°C |
| Humidity | ≤ 95% |
nn
Application Versatility and Environmental Resilience
nnThe 50Ohm N-JK 5W 1-40dB DC-6GHz RF Coaxial Attenuator with NM-NF Connector thrives in demanding environments. Its operating temperature range of -20°C to +55°C (or -30°C to +65°C for Low PIM models) and humidity tolerance up to 95% mean it can perform reliably in outdoor enclosures, data centers, or industrial test labs. The N-type connectors (male and female options) provide a secure, weatherproof connection with excellent electrical performance and mechanical stability, reducing the risk of signal degradation due to loose connections.nn
Integrating the 50Ohm N-JK 5W 1-40dB DC-6GHz RF Coaxial Attenuator with NM-NF Connector into Your System
nn
Optimizing Communication Systems
nIn cellular networks and distributed antenna systems (DAS), maintaining balanced signal levels is critical. This attenuator allows engineers to match transmitter output to antenna gain, preventing overdriving power amplifiers while ensuring adequate coverage area. Its low PIM variants, with PIM3 performance as low as -155 dBc, are especially valuable in multi-carrier systems where intermodulation distortion can cause interference.nn
Calibrating Test Equipment
nFor laboratory calibration and testing, the attenuator’s precise attenuation steps and low VSWR (±1.2:1) ensure that measurement results are accurate and repeatable. The wide bandwidth (DC-6 GHz) covers common test frequencies, from HF to microwave, making it a universal tool in any RF engineer’s kit.nn
Conclusion: Why This Artifact Deserves a Place in Your RF Toolkit
nnThe 50Ohm N-JK 5W 1-40dB DC-6GHz RF Coaxial Attenuator with NM-NF Connector is more than a simple accessory; it is a cornerstone for achieving precise RF signal control. With its wide frequency range, multiple attenuation options, robust build, and exceptional electrical performance, it empowers you to build efficient, stable, and interference-free RF systems. Whether you are optimizing a communication network, calibrating sensitive instruments, or reducing interference in a research setup, this attenuator offers the reliability and accuracy you need. Choose the standard or Low PIM variant based on your system’s demands, and experience the difference that a truly well-engineered RF component can make.
