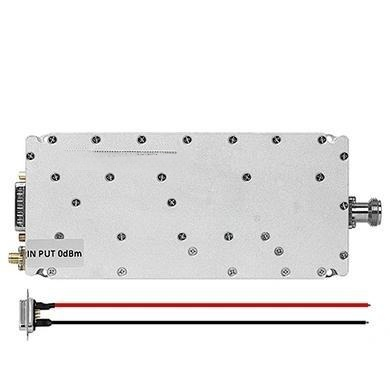

Redefining Wideband Amplification: The 50W/80W Customized GaN Power Amplifier Module (2500-6000MHz)
nnIn the rapidly evolving landscape of radio frequency (RF) technology, the demand for versatile, high-performance amplification has never been greater. The 50W/80W customized wide band 2500-6000MHz power amplifier module emerges as a true engineering marvel, specifically designed to meet the rigorous demands of general-purpose applications spanning telecommunications, radar, electronic warfare, and test equipment. By leveraging advanced Gallium Nitride (GaN) on Silicon Carbide (SiC) technology, this module not only delivers exceptional power but does so with remarkable efficiency and reliability across an extraordinarily broad frequency spectrum.nnAt the heart of this breakthrough lies the power amplifier module’s ability to operate seamlessly from 2500MHz to 6000MHz. This instantaneous wide bandwidth capability is not merely a specification; it is a transformative feature that eliminates the need for multiple amplifiers tuned to specific frequency ranges. Whether the application requires rapid frequency hopping for secure communications or stable, continuous wave operation for jamming systems, the module performs without degradation. Its 50 Ohm input and output impedance standardizes integration, ensuring that the high power amplifier can be effortlessly incorporated into existing RF chains without complex matching networks.nn
The Core Technology: GaN on SiC with Exquisite Thermal Management
nnThe true genius of this RF power amplifier is its construction. The module utilizes Class AB Gallium Nitride (GaN) technology, deposited on a Silicon Carbide (SiC) substrate. This combination is critical because GaN offers superior electron mobility and breakdown voltage, enabling high power density in a compact form factor. However, high power generates significant heat. The design ingeniously mounts the GaN-on-SiC die onto a copper subcarrier, utilizing patented thermal management technology to dissipate heat effectively. This ensures that the power amplifier module operates reliably even under maximum load, preventing thermal runaway and extending the device’s lifespan.nn
Understanding the Specifications: A Detailed Table of Parameters
nnTo fully appreciate the capabilities of this high power amplifier, it is essential to review its technical parameters. Below is a comprehensive breakdown of the module’s performance characteristics, structured for clarity and precision.nn
| Technical Parameter | Specification / Value |
|---|---|
| Working Frequency | 2500 – 6000 MHz |
| Saturated Power Output (Option 1) | 47 ± 1 dBm (≈50W) |
| Saturated Power Output (Option 2) | 49 ± 1 dBm (≈80W) |
| Gain (Option 1) | 47 ± 2 dB |
| Gain (Option 2) | 49 ± 2 dB |
| In-Band Flatness | Optimized for minimal ripple |
| Working Current | ≤ 10 Amperes |
| Input & Output VSWR | ≤ 1.5 |
| Out-of-Band Spurs (9kHz – 1GHz) | ≤ -36 dBm / 30 kHz |
| Out-of-Band Spurs (1GHz – 12.75GHz) | ≤ -30 dBm / 30 kHz |
| Operating Voltage | DC +28 Volts |
| Power Supply Interface | 2W2 |
| RF Port | SMA Female |
| Monitoring Interface | DB9 (Pin 1: TEMP, Pin 3: VSWR) |
| Operating Temperature | -10°C to +55°C |
| Relative Humidity | 5% to 95% (Non-Condensing) |
| Storage Temperature | -25°C to +65°C |
nnThis data underscores the power amplifier module’s exceptional ruggedness. The out-of-band spur suppression ensures clean spectral output, critical for sensitive receiver environments. The integrated DB9 monitoring interface provides real-time feedback on temperature (TEMP) and voltage standing wave ratio (VSWR), allowing for proactive system management and fault detection.nn
Practical Applications and Deployment Scenarios
nnThe high power amplifier’s unique combination of wide bandwidth, high linearity, and compact size makes it an ideal building block for a variety of demanding systems. In telecommunications, it boosts signal coverage for 4G/LTE and 5G infrastructure, particularly in band 30/40/n40 ranges. For radar and electronic warfare, its instantaneous bandwidth allows it to serve as a jamming module, effectively disrupting hostile signals across a broad spectrum. Additionally, its robust construction makes it suitable for industrial, scientific, and medical (ISM) applications where reliable RF power is required at 2450 MHz or 5800 MHz.nn
Conclusion: The Ultimate Power Amplifier Module for Demanding Environments
nnIn conclusion, the 50W/80W customized wide band 2500-6000MHz power amplifier module stands as a testament to modern RF engineering. Its use of GaN-on-SiC technology, combined with intelligent thermal management via a copper subcarrier, delivers a product that is both powerful and reliable. The power amplifier module is not just a component; it is a solution for engineers who require flexibility without sacrificing performance. With its straightforward 28V DC operation, standard SMA interface, and built-in monitoring, it simplifies system design while providing the power and efficiency needed for the most critical missions. Whether deployed in a lab, on a vehicle, or within a stationary communication tower, this high power amplifier ensures consistent, rugged performance across the entire 2500-6000MHz spectrum.
