Unleashing Wideband Performance: The 1500-2500MHz GaN Amplifier Revolution
The demand for high-performance, wideband amplification has never been greater in today’s RF landscape. Engineers and system integrators constantly seek solutions that balance power, efficiency, and signal purity across vast frequency ranges. Enter the advanced GaN amplifier, a 50W powerhouse designed to operate across the critical 1500-2500MHz spectrum. This article explores how this gallium nitride (GaN) device sets new benchmarks for broadband power amplification, offering unmatched flexibility and ruggedness for next-generation wireless systems, from advanced radar to modern communication protocols.
At the heart of this innovation is its ability to deliver consistent, laboratory-grade performance in a field-ready package. By leveraging the superior properties of gallium nitride, this RF power module achieves exceptional efficiency and linearity, surpassing traditional silicon-based amplifiers. Whether you are developing pulsed radar systems or handling complex modulated waveforms, this GaN amplifier provides the reliability and precision required for mission-critical applications. Its wide instantaneous bandwidth eliminates the need for multiple narrowband amplifiers, simplifying system design and reducing overall footprint.

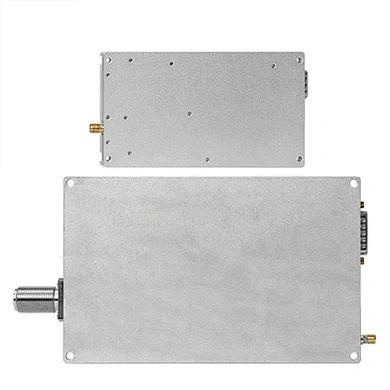

Technical Specifications of the GaN Amplifier
Understanding the detailed performance metrics is crucial for integration. Below is a comprehensive table of the key parameters defining this 50W GaN amplifier, ensuring you have all necessary data for seamless system design.
| Parameter | Unit | Min | Typ | Max | Symbol |
|---|---|---|---|---|---|
| Operating Frequency | MHz | 1500 | – | 2500 | Fo |
| Operating Bandwidth | MHz | – | 1000 | – | BW |
| Peak Output Power @CW Signal | W | – | 50 | – | PSAT |
| Input Power | dBm | – | -2±3 | – | PIN |
| Maximum Input Power @Without Damage | dBm | – | – | 5 | PIN, MAX |
| Power Gain @Input Power 0dBm | dB | – | 48±3 | – | GP |
| Gain Flatness @Input Power 0dBm | dB | – | – | ±3 | ∆GP |
| Efficiency | % | – | 25 | – | EFF |
| Harmonics 1 to N @Output Power 40W | dBc | 10 | – | – | HN |
| Spurious Level | dBc | 60 | – | – | Spur |
| Input VSWR | dB | – | – | 2:1 | VSWR |
| Output VSWR | dB | – | – | 2:1 | VSWR |
| Operating Voltage | V | 28 | – | 30 | VDC |
| Current Consumption @Output Power 40W | A | – | 6.5 | – | IDC |
Exceptional Signal Purity and Linear Performance
This GaN amplifier excels in maintaining signal integrity across its entire 1000MHz instantaneous bandwidth. Harmonic distortion is kept below -10dBc at 40W output, while spurious emissions are suppressed to an impressive -60dBc. Such purity is vital for applications like test equipment, where precision is non-negotiable. The stable 48±3dB gain profile, complemented by ±3dB flatness, ensures consistent amplification of everything from simple CW signals to advanced modulated waveforms. This combination of wide bandwidth and high linearity distinguishes this 50W amplifier from conventional options, minimizing impedance matching challenges with a ≤2:1 VSWR at both ports.
Rugged Design and Thermal Stability
Engineered for demanding environments, this RF power module operates reliably even at elevated 50°C baseplate temperatures, thanks to an innovative thermal design. The robust construction includes multiple protection features, allowing safe operation with input signals up to 5dBm without damage risk. Drawing just 6.5A at 40W output from a 28-30V DC supply, it offers a compact, energy-efficient solution that does not compromise on reliability. For system integrators, this means fewer components, reduced heat management challenges, and a longer operational lifespan.
Applications and Integration Advantages of the GaN Amplifier
The capabilities of this GaN amplifier open doors to a wide array of specialized applications. Its gallium nitride core enables faster switching speeds and superior thermal conductivity, making it ideal for pulsed radar systems and advanced communication protocols like 5G infrastructure. By eliminating the need for multiple narrowband amplifiers, this broadband PA simplifies system architecture while delivering superior spectral purity. Whether deployed in field-deployed radar units or laboratory test setups, it provides consistent, high-fidelity amplification across the 1500-2500MHz spectrum.
In conclusion, this advanced GaN amplifier represents a significant leap in broadband power amplification technology. Its unmatched combination of 50W peak power, 1000MHz instantaneous bandwidth, 25% efficiency, and exceptional linearity makes it an invaluable asset for next-generation wireless systems. For engineers seeking to push the boundaries of performance, this RF power module offers a reliable, flexible, and powerful solution that meets the most stringent demands of modern RF design.
