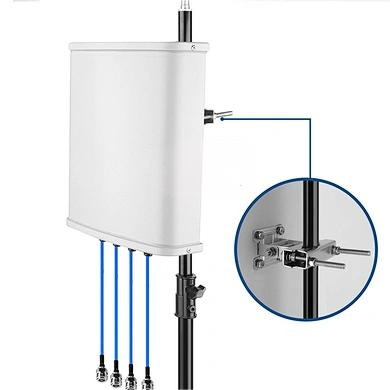

Unlocking Next-Generation Connectivity: The 5G 698-4000MHz 4×4 MIMO High Gain Sector Antenna
nnIn the rapidly evolving landscape of 5G communications, reliable signal quality and expansive coverage are non-negotiable. The 5G 698-4000MHz 4×4 MIMO Indoor Outdoor High Gain Patch Panel Sector Antenna 4 Ports with N 4.3-10 Din Connector stands as your ideal communication partner, engineered to meet the demanding requirements of modern wireless networks. As a cutting-edge mimo antenna, it harnesses a robust 4×4 Multiple Input Multiple Output architecture, which dramatically boosts data transmission rates and signal stability. Whether deployed in complex indoor environments like office buildings and shopping centers or in wide outdoor areas such as campuses and public venues, this antenna ensures consistent, high-performance signal delivery. Its broad frequency range of 698 to 4000MHz seamlessly supports both 4G and 5G bands, making it an outstanding representative of the 4G 5G mimo sector antenna category.nn
Key Features of the 4G 5G MIMO Sector Antenna
nnThe high gain characteristics of this device elevate it to the status of a premier high gain mimo panel antenna, effectively amplifying signal strength while extending coverage area. Its carefully engineered horizontal and vertical beamwidths guarantee precise signal radiation, minimizing interference and maximizing efficiency. Designed as a rugged outdoor panel antenna, it boasts exceptional durability. The ABS antenna cover and compact dimensions allow it to withstand extreme operating temperatures from -55°C to +60°C and relative humidity levels ranging from 5% to 95%. Furthermore, the antenna supports customization of frequency ranges, enabling it to adapt to diverse deployment scenarios and specific network requirements.nn
Ideal Applications and Use Cases
nnThis 4×4 MIMO sector panel antenna is purpose-built for signal coverage in airports, schools, large buildings, and similar environments. It is a critical component for In-Building Solutions (IBS) and Distributed Antenna System (DAS) projects, significantly enhancing 2G, 3G, 4G, and 5G mobile signals. By choosing this antenna, you secure the signal high ground in the 5G wave, delivering a qualitative leap in communication experience for end-users.nn
Product Specifications and Technical Data
nn
| Parameter | Value |
|---|---|
| Frequency Range (MHz) | 698–960 / 1710–2700 / 3300–4000 |
| Gain (dBi) | 6.0±1 / 7.5±1 / 7.5±1 |
| Polarization | 2x±45° |
| Beamwidth – Horizontal (deg) | 75 / 70 / 68 |
| Beamwidth – Vertical (deg) | 70 / 70 / 60 |
| VSWR | ≤1.8 |
| Isolation (dB) | >15 / >20 / >23 |
| PIM, 3rd Order, 2 x 20 W (dBc) | ≤-153 |
| Input Power per Port (max, watts) | 50 |
| Dimensions (HxWxD, mm) | 350 x 285 x 90 |
| Weight (without mounting kit, kg) | 2.8 |
| Radome Material and Color | ABS, White, RAL9003 |
| Mounting Kit | On-wall |
| Connector Type and Location | N-Female × 4 |
| Operational Temperature (°C) | -55 to +60 |
| Operational Humidity (%) | 95 |
nn
Conclusion
nnThe 5G 698-4000MHz 4×4 MIMO High Gain Sector Antenna is more than just a component; it is a strategic investment in superior network performance. By integrating this versatile mimo antenna into your infrastructure, you gain the reliability and bandwidth necessary to thrive in the 5G era. Its combination of high gain, wide frequency coverage, and rugged design makes it the ideal choice for any 4G 5G mimo sector antenna deployment. Seize the signal advantage today and transform your communication experience with this exceptional, high gain mimo panel antenna.
