Introducing the Advanced 3dB Hybrid Coupler for Modern RF Systems
nn

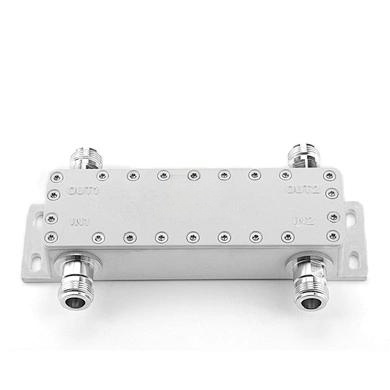

This robust hybrid coupler is engineered to deliver exceptional signal integrity and power handling across a broad frequency spectrum, making it an ideal solution for modern RF combiner applications in 5G, LTE, and other wireless communication systems. Operating seamlessly from 698 MHz to 960 MHz and 1427 MHz to 4000 MHz, this versatile component ensures minimal signal degradation with an insertion loss of ≤3.9 dB, aligning perfectly with the performance expectations of a high-efficiency 3dB hybrid coupler. Its ability to split or combine signals with precise 90° phase differentiation makes it indispensable for beamforming and MIMO configurations, where phase coherence is critical.
nn
Designed to meet the rigorous demands of outdoor and industrial environments, this signal coupler boasts an impressive IP65 rating, ensuring reliable performance even under extreme temperatures ranging from -40°C to +75°C. The device’s low VSWR ≤1.25 and high isolation ≥20 dB minimize reflections and crosstalk, while its exceptional passive intermodulation (PIM) performance of 140 dBc at 43 dBm × 2 guarantees clean signal transmission in high-power scenarios. These attributes position it as a superior choice for RF combiner deployments in macro base stations, small cells, and distributed antenna systems.
nn
Technical Specifications of the Hybrid Coupler
nn
| Parameter | Specification |
|---|---|
| Frequency Range (MHz) | 698~960, 1427~4000 |
| Insertion Loss (dB) | ≤3.9 |
| VSWR | ≤1.25 |
| Isolation (dB) | ≥20 |
| Passive Intermodulation (3rd order) | 140 dBc @ 43 dBm × 2 |
| Impedance (Ω) | 50 |
| Power Handling (W) | 300 Avg, 1000 Peak |
| Operating Temperature (°C) | -40 to +75 |
| Relative Humidity | 5% – 95% |
| Ingress Protection | IP65 |
| Connector Type | N, Female |
| Mounting | Through Hole |
| Dimensions (mm) | 154.5 × 47 × 47.5 (excluding connectors) |
nn
Unmatched Performance in a Signal Coupler Design
nn
The hybrid coupler features standard N-type female connectors, facilitating easy integration into existing RF infrastructures. Its compact dimensions 154.5 × 47 × 47.5 mm and through-hole mounting design further enhance its adaptability in space-constrained installations. With an average power handling capability of 300W and a peak tolerance of 1000W, this component excels in high-load environments, ensuring uninterrupted operation in mission-critical applications. Beyond traditional signal coupler functionalities, this device also bridges the gap between mux-like frequency aggregation and phase-sensitive signal routing.
nn
Versatility Beyond a Standard Mux
nn
Its dual-band compatibility allows it to function as a quasi-mux in scenarios requiring multi-frequency consolidation without the complexity of dedicated multiplexers. Whether deployed in radar systems, satellite communications, or advanced IoT networks, this 3dB hybrid coupler stands out for its blend of precision, durability, and versatility. The low VSWR and high isolation characteristics ensure that signal integrity remains uncompromised, even in densely packed RF environments where multiple components are operating simultaneously.
nn
Why This RF Combiner Excels in Demanding Environments
nn
This RF combiner is not just another passive component; it represents a leap forward in wideband capability and environmental resilience. The IP65 rating means it can withstand rain, dust, and temperature extremes, making it suitable for outdoor installations that experience harsh weather conditions. The wide operating temperature range of -40°C to +75°C ensures that the hybrid coupler performs consistently, whether in freezing climates or scorching heat.
nn
In high-power scenarios, the passive intermodulation performance of 140 dBc at 43 dBm × 2 is a critical advantage. This low PIM characteristic prevents signal distortion and ensures that the 3dB hybrid coupler maintains clarity in transmission, even when handling multiple high-power signals simultaneously. This is particularly important in modern wireless systems where spectral efficiency is paramount.
nn
Conclusion: The Future-Proof 3dB Hybrid Coupler
nn
In summary, this hybrid coupler redefines the benchmarks for RF combiner technology, offering a unique combination of wideband operation, high power resilience, and environmental robustness. Its ability to serve as both a signal coupler and a phase-coherent splitter makes it a cornerstone in next-generation wireless architectures, where efficiency and reliability are non-negotiable. For engineers seeking a future-proof solution that transcends conventional mux and combiner limitations, this 3dB hybrid coupler represents the pinnacle of RF innovation. Whether you are designing a 5G network, upgrading an LTE system, or building a custom RF solution, this hybrid coupler delivers the performance and durability required to succeed in today’s demanding telecommunications landscape.
