Unlocking Reliable Connectivity: MOP-JC-AISG-8M-8F-5M AISG Cable Overview
In the demanding world of telecommunications and base station infrastructure, the integrity of every connection matters. The MOP-JC-AISG-8M-8F-5M is a precision-engineered extension cable designed to maintain signal fidelity and power delivery between Antenna Interface Standards Group (AISG) compliant devices. Whether you are retrofitting an existing tower or deploying a new 5G network, understanding the robust specifications of this cable ensures you can plan for reliability under extreme conditions. From its dual gender interfaces to its rugged environmental performance, this component is built to support uninterrupted communication links.
Core Mechanical & Connector Design

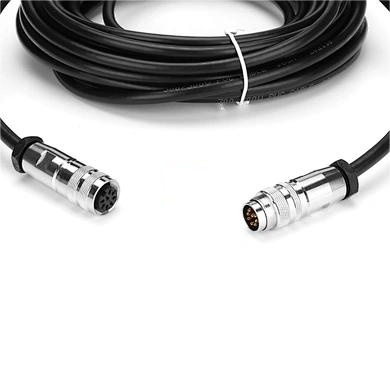

The cable’s construction addresses the common pain points of field installation: durability, fit, and secure mating. It features a 5-meter length, accurate to within ±0.2 meters, offering sufficient reach for typical cabinet-to-antenna runs without excessive slack that can cause snagging or signal loss. The interface configuration is purposeful: an 8-pin male connector on one end and an 8-pin female connector on the other. This gender pairing allows for seamless daisy-chaining or extension of existing AISG control cables. Both connectors are rated for a minimum of 500 mating cycles, a critical specification for sites where cables may be disconnected during maintenance or upgrades.
Electrical Performance & Power Handling
Electrical stability is the backbone of any AISG system, controlling Remote Electrical Tilt (RET) units and Tower Mounted Amplifiers (TMAs). This cable meets stringent parameters to ensure safe, consistent power and data transmission.
Voltage Withstand & Insulation Integrity
The cable is designed to handle both continuous and transient electrical stresses. It can withstand 300V continuously without breakdown, with a pulse withstand rating of 1000V to protect against voltage spikes common in outdoor installations. The test voltage is set at 670V AC. All of this is supported by a high insulation resistance of ≥500MΩ, which prevents leakage currents that could compromise system logic or cause intermittent faults. Contact resistance is minimized to ≤5MΩ, ensuring efficient power transfer and reducing heat generation at connection points.
| Parameter | Specification | Condition |
|---|---|---|
| Continuous Withstand Voltage | 300V | AC |
| Pulse Withstand Voltage | 1000V | Pulse |
| Test Voltage | 670V | AC |
| Rated Current | 5 A at 40°C | Continuous |
| Insulation Resistance | ≥500 MΩ | At 500V |
| Contact Resistance | ≤5 mΩ | Initial |
Cable Construction & Current Capacity
The internal wire gauge is tailored for the dual demands of power and data. For power delivery, the cable uses conductors of at least 0.75mm² (approximately 18 AWG) to safely carry the rated current of 5 Amperes at 40°C ambient temperature. This current rating is sufficient to power multiple RET units or a TMA through a single control cable. For data integrity, the twisted pair data cores are at least 0.24mm², which helps maintain signal quality over the 5-meter length by reducing electromagnetic interference (EMI) and crosstalk. The twisted pair geometry is essential for reliable AISG communication protocols operating at 9600 baud and higher.
Environmental Endurance & AISG Cable Reliability
Outdoor network equipment faces a harsh life cycle: temperature extremes, UV radiation, moisture, and mechanical vibration. This cable is constructed to survive and perform through all of that.
Operating Temperature Range & Mechanical Durability
The cable’s materials are selected for an operational temperature range from -40°C to +80°C. This covers virtually all climates, from arctic installations to desert rooftop sites. The connector bodies are built for repeated use, with a durability rating of ≥500 mating cycles. This ensures that even after years of installation and occasional disconnection, the connector remains tight and corrosion-free.
Ingress Protection & Sealing Performance
Perhaps the most critical environmental specification for an AISG cable is its sealing against moisture and particulate ingress. When mated, the pair achieves IP67 protection per IEC 60529. This certification means the connection is dust-tight and can withstand temporary immersion in water (up to 1 meter for 30 minutes). This is vital for tower-top installations where connectors are directly exposed to rain, snow, and wind-driven debris.
Conclusion: Why the MOP-JC-AISG-8M-8F-5M Is the Right AISG Cable for Your Network
Selecting the correct AISG cable is a decision that impacts both immediate installation ease and long-term network uptime. The MOP-JC-AISG-8M-8F-5M balances precise electrical specifications—like its 300V continuous rating and 5 Amp current capacity—with rugged mechanical and environmental resilience, including a wide temperature range and IP67 sealing. By integrating high-grade 0.75mm² power cores and 0.24mm² twisted pair data cores, it supports both power delivery and reliable communication for modern antenna systems. Whether you are upgrading to 5G or maintaining a legacy 4G setup, this cable’s combination of connector durability, voltage handling, and environmental protection makes it a dependable link in your signal chain. Invest in this AISG cable to ensure your critical connections remain intact, rain or shine.
