Unveiling the Future of Wireless Communication with Advanced Microwave Frequency Band Technology
nnThe relentless advancement of wireless communication and RF technology has been punctuated by pivotal milestones, none more significant than the development of the microwave frequency band. This spectrum, typically ranging from 1 GHz to 30 GHz, serves as the backbone for high-speed data transmission, radar systems, and satellite links. At the heart of these systems lies a critical component: the RF module. As the essential carrier for signal transmission and processing, the RF module holds a paramount position in modern wireless infrastructure. Its performance directly dictates the efficiency, reliability, and reach of communication networks. Recognizing this, we have engineered a high-performance RF amplifier module specifically designed to operate across the ultra-wide microwave frequency band of 6 to 18 GHz. This innovative product meets the rigorous demands of diverse application scenarios, delivering exceptional efficiency and unwavering reliability in even the most challenging environments.nn

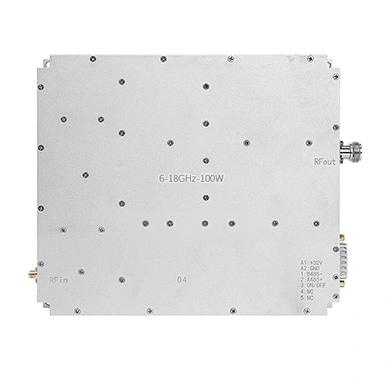

The Broadband RF Module: Performance and Precision in the Microwave Frequency Band
nnOur broadband RF module excels in delivering high gain and a low standing wave ratio (VSWR), ensuring that signal transmission remains both efficient and stable. By minimizing reflections and maximizing power transfer, this module guarantees consistent performance across the entire 6–18 GHz range. Harmonic and spurious suppression capabilities are integral to its design, maintaining signal purity and reducing interference from unwanted frequencies. This makes it ideal for sensitive applications where clarity is non-negotiable, such as in advanced radar and communication systems.nnFurthermore, the module incorporates a flexible pulse test function, enabling it to accommodate the testing requirements of numerous radar and communication systems. Whether handling narrow pulses or continuous wave operations, the module adapts seamlessly. Its efficient power management architecture not only supports robust output but also minimizes power consumption, balancing high performance with energy savings and environmental responsibility.nn
Key Features for the Microwave Frequency Band
nnThis module distinguishes itself through several critical features designed to optimize operation within the microwave frequency band:nn
| Parameter | Value |
|---|---|
| Frequency Range | 6–18 GHz |
| Psat | 100W minimum |
| Pin | 10 dBm maximum |
| VSWR | 2:1 max |
| Gain | 50 dB typ |
| Gain Flatness@P1dB | ±2 dB typ |
| Harmonics | -10 dBc typ |
| Spurious | -60 dBc max |
| Impedance | Input: 50 ohms, Output: 50 ohms nominal |
| Pulse Test | Pulse Width: 3 nS~CW, Pulse Repetition: 1 µS~CW |
| Power Supply | 28 VDC |
| Power Consumption | 1300W max |
nn
Mechanical and Environmental Specifications for the Microwave Frequency Band
nnThe module’s robust design ensures durability and compatibility in demanding field conditions:nn
| Parameter | Value |
|---|---|
| Dimensions | 260 x 220 x 120 mm |
| Weight | ≤ 6 kg |
| RF Connectors | Input: SMA-F, Output: N-F |
| Operating Temp. | -40°C to +60°C |
| Storage Temp. | -55°C to +85°C |
nn
Applications and Customization in the Microwave Frequency Band
nnThe high-efficiency output and inherent broadband characteristics of this module position it as the premier choice for radar systems, satellite communications, wireless infrastructure, and scientific research. In radar, it powers high-resolution detection, while in satellite communications, it enables robust data links. For scientific research, its versatility supports experimental setups requiring precise microwave frequency band generation.nnAt the same time, we recognize that every application presents unique challenges. That’s why we offer comprehensive customization services, tailoring the module to meet diverse needs—from specialized connectors and gain profiles to pulse test parameters. Our team is committed to delivering technical support that ensures seamless integration and optimal performance.nn
Conclusion: Driving Innovation in the Microwave Frequency Band
nnIn conclusion, the microwave frequency band remains a cornerstone of modern wireless technology, and our RF amplifier module is engineered to maximize its potential. By combining high gain, low VSWR, excellent spurious suppression, and flexible pulse testing, this product stands as a reliable solution for mission-critical applications. Whether you are advancing radar systems, enhancing satellite communications, or pioneering new technologies, we invite you to connect with us. Contact us today for more information, technical support, or to explore customization options. Together, we can drive the evolution of wireless communication and shape the future of the microwave frequency band.
