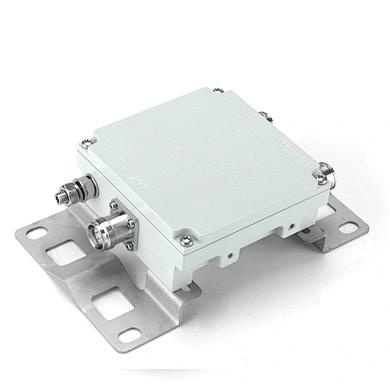

Maximize Network Performance with the 698-2700/3300-3800MHz Dual Band Combiner with N-Female
In the fast-evolving world of telecommunications, efficient signal integration and seamless transmission are non-negotiable. Whether you are expanding a 4G LTE network, deploying 5G infrastructure, or managing complex multi-band communication systems, the 698-2700/3300-3800MHz dual band combiner with N-female stands out as a robust, high-performance solution. This device is engineered to merge two distinct frequency bands into a single output with minimal loss, ensuring your network delivers consistent, high-quality connectivity. Its versatility makes it indispensable for indoor and outdoor applications, from dense urban base stations to large-scale venue coverage.
Why Choose the 698-2700/3300-3800MHz Dual Band Combiner with N-Female?
This combiner is purpose-built to address the demands of modern communication systems. By covering the 698-2700MHz and 3300-3800MHz ranges, it supports a wide array of technologies, including GSM, UMTS, LTE, and 5G NR. The device simplifies complex cabling and reduces equipment footprint, allowing network engineers to optimize space and resources without compromising on performance. Its rugged design and comprehensive feature set ensure long-term reliability in challenging environments.
Key Specifications of the 698-2700/3300-3800MHz Dual Band Combiner with N-Female
The following technical parameters illustrate why this combiner excels in signal integrity and durability. All performance metrics are critical for maintaining high signal-to-noise ratios and minimizing interference.
| Parameter | Port 1 (Low Band) | Port 2 (High Band) |
| :— | :— | :— |
| Frequency Range | 698 – 2700 MHz | 3300 – 3800 MHz |
| Insertion Loss | < 0.3 dB | < 0.3 dB |
| Return Loss | < -20 dB | 50 dB | > 50 dB |
| Impedance | 50 Ohms | 50 Ohms |
| Average Input Power | < 250 W | < 250 W |
| Peak Input Power | 1 kW | 1 kW |
| Passive Intermodulation (PIM) IM3 | < -155 dBc @ 2×43 dBm | < -155 dBc @ 2×43 dBm |
| Connectors | 3 pcs N-Female | 3 pcs N-Female |
| DC/AISG Bypass | Max 3000 mA | Max 3000 mA |
| Lightning Protection | 10 kA (10/350 μs pulse) | 10 kA (10/350 μs pulse) |
| Operating Temperature | -20°C to +65°C | -20°C to +65°C |
| Storage Temperature | -40°C to +85°C | -40°C to +85°C |
| Relative Humidity | 5% to 95% | 5% to 95% |
| Ingress Protection Rating | IP67 | IP67 |
| Dimensions (without connectors) | 110 x 110 x 44 mm | 110 x 110 x 44 mm |
Superior Electrical Performance for Reliable Operation
The 698-2700/3300-3800MHz dual band combiner with N-female is designed to deliver exceptionally low insertion loss, typically under 0.3 dB. This ensures that signal strength is preserved during combining, directly improving coverage area and data throughput. With return loss less than -20 dB and a VSWR of 1.22, reflections are minimized, maintaining signal purity. The high isolation of greater than 50 dB between ports prevents cross-band interference, a critical factor when running multiple technologies simultaneously.
Robust Build and Environmental Durability
One of the standout features of this combiner is its IP67 protection rating, which guarantees complete protection against dust and temporary immersion in water. It operates reliably across a wide temperature range (-20°C to +65°C) and can be stored in extreme conditions from -40°C to +85°C. The 10 kA lightning protection (10/350 μs pulse) provides an essential safeguard for outdoor installations, reducing the risk of damage from electrical surges. Additionally, the integrated DC/AISG bypass (up to 3000 mA) supports remote electrical tilt (RET) and tower-mounted amplifier (TMA) control without additional cabling.
Versatile Applications for the 698-2700/3300-3800MHz Dual Band Combiner with N-Female
This combiner is an ideal choice for a variety of challenging scenarios:
– Communication Base Stations: Simplify multi-band antenna feeds and reduce tower loading.
– Indoor DAS (Distributed Antenna Systems): Ensure seamless coverage in airports, shopping malls, and hospitals.
– Large Venue Coverage: Provide stable signal for stadiums, convention centers, and exhibition halls.
– Outdoor Small Cells and Macrocells: Withstand harsh weather while maintaining peak performance.
Conclusion: A Trustworthy Choice for Modern Networks
In summary, the 698-2700/3300-3800MHz dual band combiner with N-female combines high-frequency flexibility, exceptional electrical efficiency, and rugged physical design. Its low insertion loss, high isolation, and extensive environmental tolerance make it a dependable component for any communication system. Whether upgrading existing infrastructure or building next-generation networks, this combiner delivers the performance and durability required for uninterrupted connectivity. For engineers and network planners seeking a reliable, future-proof solution, the 698-2700/3300-3800MHz dual band combiner with N-female is undoubtedly a wise investment.
