MOPTECH High-Performance N-Type RF Coaxial Connectors: Precision for Professional Applications
nn
In the demanding world of RF engineering, connectivity is everything. MOPTECH presents a comprehensive line of high-performance N-type RF coaxial connectors, designed to meet the rigorous standards of modern telecommunication and defense systems. These connectors fully cover a broad spectrum of needs for n rf connectors, including standard rf n connectors and specialized n rf coaxial connectors specifications. Built around a 50Ω standard impedance, they offer seamless compatibility with N 4.3-10 DIN female interfaces, ensuring low VSWR, exceptional reliability, and superior signal integrity.
nn
These connectors are engineered for a wide array of demanding environments. From RF splitters and base stations to advanced anti-drone systems, they deliver consistent performance for both indoor and outdoor use. Whether you are deploying a 5G network, enhancing a military communication system, or building a critical infrastructure link, MOPTECH connectors provide the robust connection you need.
nn

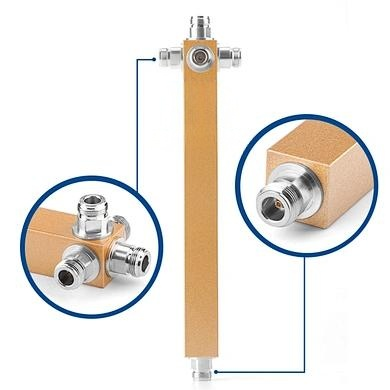

The product line is centered on the MOP-PS series, which offers multiple split-way configurations and power handling options. Each connector is precision-machined to maintain low insertion loss and high third-order intermodulation (IMD) performance, critical for minimizing signal distortion in high-power, multi-carrier systems. The following table details the key specifications for the MOP-PS-727 and MOP-PS-740 models, showcasing their versatility.
nn
| Parameter | MOP-PS-727-200(300/500)-XXNF(MF/DF) | MOP-PS-740-200(300/500)-XXNF(MF/DF) |
|---|---|---|
| Frequency Range | 698-2700 MHz | 698-3800 MHz |
| Split Way (2/3/4) | 2, 3, 4 | 2, 3, 4 |
| VSWR | ≤1.25:1 | ≤1.25:1 |
| Insertion Loss (dB) – 2 Way | ≤3.3 | ≤3.5 |
| Insertion Loss (dB) – 3 Way | ≤5.2 | ≤5.5 |
| Insertion Loss (dB) – 4 Way | ≤6.4 | ≤7 |
| Average Power (W) | 200 / 300 / 500 | 200 / 300 / 500 |
| 3rd Order IMD (dBc) | ≤ -155 @ 2×43 dBm | ≤ -150 @ 2×43 dBm |
| Impedance (Ω) | 50 | 50 |
| Connector Type | N 4.3-10 DIN-Female | N 4.3-10 DIN-Female |
| Operating Temperature (°C) | -20 ~ +55 | -25 ~ +65 |
| Application | Indoor or Outdoor | Indoor or Outdoor |
nn
Understanding the n rf coaxial connectors specifications
nn
When selecting RF connectors, the devil is in the details. The n rf coaxial connectors specifications for the MOPTECH PS series go beyond standard parameters to ensure optimal performance in challenging RF environments. The 50Ω impedance is industry-standard for most RF applications, guaranteeing compatibility with a vast array of cables and equipment. The low VSWR of ≤1.25:1 minimizes signal reflection, which is especially critical in high-power systems where reflected power can damage transmitters or degrade signal quality.
nn
Furthermore, the insertion loss values are tightly controlled across all split-way configurations. For instance, the 2-way splitter in the MOP-PS-727 model boasts an insertion loss of ≤3.3 dB, while the 4-way version remains at ≤6.4 dB. This ensures that signal strength is preserved even when splitting RF power across multiple paths. The robust IMD performance, reaching as low as -155 dBc for the 727 series, is a testament to the high-quality materials and precision manufacturing used in these connectors.
nn
Compatibility and Versatility of N-Type Connectors
nn
The N-type interface is a cornerstone of professional RF connectivity, and MOPTECH connectors fully embrace this standard. By offering compatibility with the N 4.3-10 DIN female interface, these connectors provide a secure, weatherproof connection suitable for outdoor installations. The N-type design is known for its durability and ability to handle higher power levels compared to smaller connectors like SMA or BNC. This makes the n rf connectors from MOPTECH an ideal choice for base stations, where reliability and performance are non-negotiable.
nn
Whether you are upgrading an existing network or building a new system from scratch, these connectors integrate seamlessly. Their wide operating temperature ranges, from -25°C to +65°C for the 740 series, ensure stable performance in extreme climates. The robust construction also makes them resistant to vibration and environmental stress, common in both indoor enclosures and outdoor pole-mounted installations.
nn
Conclusion: Elevate Your RF System with MOPTECH
nn
In conclusion, MOPTECH’s high-performance N-type RF coaxial connectors deliver on every critical metric: low VSWR, excellent insertion loss, high power handling, and superior IMD performance. By fully covering the spectrum of n rf connectors and rf n connectors requirements, and by adhering to stringent n rf coaxial connectors specifications, these products ensure that your RF system operates at its peak. Whether for RF splitters, base stations, or anti-drone systems, choose MOPTECH for reliability, precision, and professional-grade connectivity. With a standard 50Ω impedance and versatile split-way options, these connectors are the foundation of a robust, high-performance RF infrastructure. Invest in the connection that makes the difference. Choose MOPTECH.
