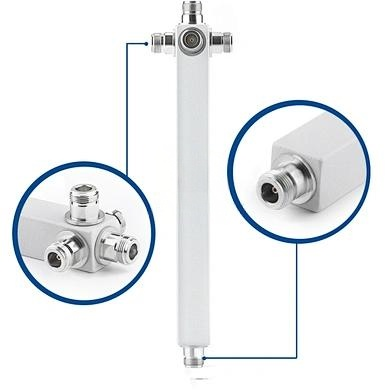

Elevate Your Network with the 4 Way Cavity Power Splitter
nnIn the fast-paced world of telecommunications, signal distribution must be both precise and robust. The 4 way cavity power splitter, a powerhouse engineered for 5G and 4G mobile communication, DAS (Distributed Antenna Systems), and indoor/outdoor signal coverage, stands as a cornerstone of reliable network infrastructure. This device is more than a simple divider; it is a sophisticated tool designed to minimize signal degradation while maximizing performance in demanding environments. Whether you are building a multi-antenna system or expanding a base station’s reach, understanding the technical edge of this component is essential for achieving seamless connectivity.nn
Unmatched RF Performance and Low Loss
nnThe core strength of this 4 way cavity power splitter lies in its exceptional RF characteristics. By adopting a high-reliability cavity structure, it delivers a Voltage Standing Wave Ratio (VSWR) of ≤1.25:1, ensuring minimal signal reflection and optimal power transfer. With a 4-way insertion loss of ≤7dB and low loss across the board, the device directly addresses one of the most critical challenges in signal distribution: maintaining signal integrity over long distances and through complex paths. This translates to stronger, clearer signals for end users, reducing the need for repeaters or amplifiers. Furthermore, the high isolation performance actively suppresses signal interference between ports, a vital feature when multiple signals must coexist without cross-talk, directly safeguarding communication quality in high-density deployments.nn
Robust Built for High-Power Environments
nnDesigned to endure the most demanding conditions, this 4 way cavity power splitter supports substantial power handling capabilities. It is available in average power options of 200W, 300W, and 500W, making it an ideal choice for high-power base stations and signal repeaters that operate under continuous heavy load. Such resilience ensures long-term reliability even in harsh working conditions, from crowded urban centers to remote outdoor installations. The robust construction not only handles thermal stress but also extends the lifespan of the overall system, reducing maintenance costs and downtime.nn
Versatile Connectivity and Deployment
nnFlexibility is another hallmark of this 4 way cavity power splitter. It features a standard 50Ω impedance, ensuring compatibility with most modern communication systems. Connector options include N-type and 4.3-10 DIN female interfaces, allowing for straightforward integration with existing cabling and equipment. The operating temperature range of -25°C to +65°C supports full indoor and outdoor deployment, empowering engineers to implement solutions without worrying about environmental constraints. This strong anti-environment interference capability makes the splitter a versatile workhorse for network expansion projects.nn
Technical Specifications at a Glance
nnTo help you select the right model for your application, all critical specifications are organized below. Note the differences between the two model series, particularly in frequency ranges and insertion loss values.nn
| Parameter | Model: MOP-PS-727-200(300/500)-XXNF(MF/DF) | Model: MOP-PS-740-200(300/500)-XXNF(MF/DF) |
|---|---|---|
| Frequency Range | 698-2700 MHz | 698-3800 MHz |
| Split Way | 2, 3, 4 | 2, 3, 4 |
| VSWR | ≤1.25:1 | ≤1.25:1 |
| Insertion Loss (dB) – 2-way | ≤3.3 | ≤3.5 |
| Insertion Loss (dB) – 3-way | ≤5.2 | ≤5.5 |
| Insertion Loss (dB) – 4-way | ≤6.4 | ≤7.0 |
| Average Power (W) | 200 / 300 / 500 | 200 / 300 / 500 |
| 3rd Order IMD (dBc) | ≤-155 @ 2x43dBm | ≤-150 @ 2x43dBm |
| Impedance (Ω) | 50 | 50 |
| Connectors Type | N, 4.3-10 DIN-Female | N, 4.3-10 DIN-Female |
| Operation Temp. (°C) | -20 to +55 | -25 to +65 |
| Application | Indoor or Outdoor | Indoor or Outdoor |
nn
Optimized for Complex Communication Systems
nnFor engineers and network designers, the 4 way cavity power splitter offers a streamlined approach to base station signal distribution. Its ability to handle high-power levels while maintaining low intermodulation distortion (IMD) ensures that even in the densest signal environments, such as those with multiple carriers or high data throughput, the quality of communication remains uncompromised. As a professional RF power splitter, it is the core component for building or expanding communication networks efficiently. By providing a stable and efficient signal distribution solution, it empowers operators and integrators to deliver consistent performance across diverse applications, from public safety networks to commercial 5G deployments.nn
Conclusion: A Foundation for Reliable Connectivity
nnIn summary, the 4 way cavity power splitter is not merely a passive component; it is a strategic asset for any modern communication system. Its combination of high RF performance, low loss, high-power handling, and broad environmental tolerance makes it the ideal choice for base station signal distribution, multi-antenna system construction, and network expansion. For professionals seeking to maximize signal integrity and system reliability, this 4 way cavity power splitter delivers proven results, ensuring your network remains a step ahead in an ever-evolving landscape. Choose this solution to build a stronger, clearer, and more resilient communication infrastructure.
