Optimizing Indoor Connectivity: The 698-4000MHz SISO Ceiling Antenna
n
In the relentless pursuit of flawless indoor communication, a reliable antenna is the unsung hero. The 698-4000MHz SISO ceiling antenna emerges as a champion solution, specifically engineered to conquer the challenges of indoor signal propagation. Whether you are equipping a bustling office, a sprawling shopping mall, or a modern home, this antenna delivers the consistent, high-quality coverage that modern mobile networks demand. By seamlessly blending into its environment while providing powerful performance, it ensures that dropped calls and buffering streams become a thing of the past. This article explores the technical excellence and practical applications of this vital component for any indoor network infrastructure.
nn
Design and Installation for Modern Interiors
n

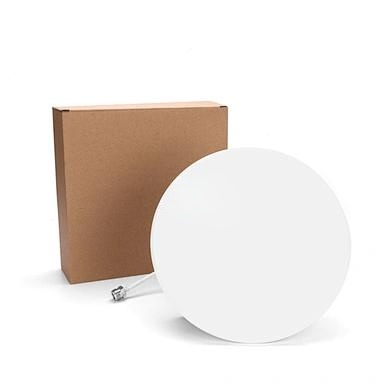

The 698-4000MHz SISO ceiling antenna is designed with the aesthetics and practicality of indoor spaces in mind. Its low-profile, white radome made from durable ABS material allows it to mount flush on the ceiling, remaining virtually invisible to occupants. This discreet installation does not compromise on performance; it is strategically placed to broadcast signals downward and outward for maximum coverage. The installation process itself is straightforward, requiring only the fastening of screws and nuts onto a mounting pole, making it a viable option for both professional installers and DIY enthusiasts.
nn
Broad Frequency Versatility
n
A standout feature of the 698-4000MHz SISO ceiling antenna is its exceptionally wide frequency range, covering 698 to 4000 MHz. This broad spectrum allows it to support a multitude of wireless standards, including 4G LTE and 5G NR bands, as well as various Wi-Fi and private wireless network applications. This future-proof design ensures that as network technologies evolve, the antenna remains a valuable asset, eliminating the need for frequent hardware upgrades.
nn
Electrical Performance and Technical Specifications
n
The real strength of the 698-4000MHz SISO ceiling antenna lies in its robust electrical engineering. It provides a gain of 2-5 dBi, delivering sufficient signal boost for typical indoor environments. Its omnidirectional coverage pattern is a key advantage, with a horizontal half-power beamwidth of 360°, ensuring a uniform signal in all directions. The vertical beamwidth is configurable at either 90°, 60°, or 55°, allowing for fine-tuning the coverage area based on ceiling height. Low voltage standing wave ratios (VSWR) of ≤1.8 (vertical) and ≤1.5 (horizontal) minimize signal reflection, maximizing power transfer efficiency. Furthermore, a third-order intercept point better than -107 dBm and port isolation exceeding 25 dB ensure strong performance with minimal interference, preserving signal clarity even in dense network environments.
nn
Detailed Technical Parameters Table
n
| Parameter | Value (Vertical Interface) | Value (Horizontal Interface) |
|---|---|---|
| Frequency Range | 698-4000 MHz | 698-4000 MHz |
| Gain | 2-5 dBi | 2-5 dBi |
| Half-power Beamwidth (°) | H:360 / V:90 or 60 | H:360 / V:55 |
| V.S.W.R. | ≤1.8 | ≤1.5 |
| Third-order Intercept Point | -107 dBm | -107 dBm |
| Isolation between Ports | ≥25 dB | ≥25 dB |
| Cross-polar Ratio | ≥15 dB @ 0° | ≥10 dB @ ±60° |
| Input Impedance | 50 Ω | 50 Ω |
| Polarization | Vertical & Horizontal | Vertical & Horizontal |
| Maximum Input Power | 50 W | 50 W |
| Lightning Protection | DC Ground | DC Ground |
| Input Connector Type | 4.3-10-Female | 4.3-10-Female |
nn
Mechanical and Environmental Durability
n
Beyond its electrical prowess, the 698-4000MHz SISO ceiling antenna is built to last. Its dimensions are compact at Φ195*102 mm, and it weighs only 0.45 kg, making it easy to handle and support. The ABS radome material is chosen for its durability and resistance to environmental wear. With a wide operating temperature range of -40°C to 60°C, the antenna performs reliably in diverse indoor climates, from cold storage facilities to sunlit atriums. The inclusion of DC grounding provides integrated lightning protection, adding a critical layer of safety to the installation.
nn
Conclusion: The Ultimate Solution for Reliable Indoor Coverage
n
The 698-4000MHz SISO ceiling antenna is more than just a piece of hardware; it is a comprehensive solution for optimizing indoor wireless networks. From its discreet, easy-to-install design to its wide frequency support and low-interference performance, every aspect is engineered to deliver outstanding results. For businesses and homeowners alike seeking to eradicate dead zones and enhance signal strength, this antenna represents an intelligent, cost-effective investment. By integrating the 698-4000MHz SISO ceiling antenna into your infrastructure, you are making a definitive choice for reliable, high-speed, and uninterrupted wireless connectivity, proving that great things indeed come in small, ceiling-mounted packages.
