Maximizing Signal Integrity with the Professional Dual Band Combiner
nn

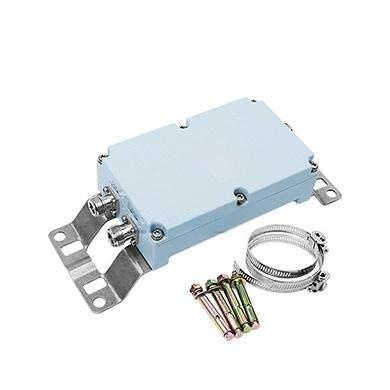

In the demanding world of mobile communications and distributed antenna systems (DAS), signal purity and efficiency are non-negotiable. The innovative 698-960/1710-2170MHz dual band combiner emerges as a pivotal solution, seamlessly integrating the roles of an RF combiner and a duplexer combiner into a single, high-performance unit. This professional-grade component, outfitted with N-female connectors, is engineered to meet the rigorous requirements of modern base stations and complex DAS networks. Combining dual-band signals with exceptional clarity, this device ensures stable, interference-free transmission that operators can depend on.
nn
At its core, this dual band combiner is more than just a connector; it is a guardian of signal quality. It boasts ultra-low insertion loss, preserving signal strength as it merges frequencies, and offers impressive isolation between ports that exceeds 50dB. This level of isolation is critical for preventing crosstalk and interference, effectively acting as a precision filter. Whether deployed in a new build or an upgrade, this component streamlines infrastructure by offering a 2-in-1 solution, reducing the need for multiple devices and simplifying cabling.
nn
Understanding the Dual Band Combiner Architecture
nn
The design of this combiner is a masterclass in RF engineering. It splits the frequency spectrum into two distinct paths, each tailored for optimum performance. The first port handles the lower band of 698-960MHz, while the second port manages the higher band of 1710-2170MHz. By combining these channels, the device effectively maximizes the use of existing antenna lines, allowing for increased network capacity without additional hardware. This makes it an essential tool for operators looking to deploy 4G LTE or 5G NR overlays on legacy infrastructure.
nn
Technical Performance Specifications
nn
The operational parameters of this unit are designed for robustness and reliability. Below are the detailed specifications that showcase its professional capabilities:
nn
| Parameter | Port 1 (Low Band) | Port 2 (High Band) |
|---|---|---|
| Frequency Range (MHz) | 698 – 960 | 1710 – 2170 |
| Insertion Loss | <0.3dB | <0.3dB |
| Return Loss / VSWR | >18dB / ≤1.30 | >18dB / ≤1.30 |
| Isolation | >50dB (between ports) | |
| Impedance | 50 Ohms | |
| Input Power (Average) | 250 Watts | |
| Input Power (Peak) | 1 kW (for 10% duty cycle) | |
| Passive Intermodulation (PIM) | <-150 dBc (IM3 typical) | |
| DC/AISG By-pass | Up to 3000 mA | |
| Lightning Protection | 10 kA; 10/350 µs pulse | |
| Operating Temperature | -20°C to +65°C | |
| Storage Temperature | -40°C to +85°C | |
| Environment Humidity | 5% to 95% | |
| Application | Indoor or Outdoor, IP 67 rated | |
| Connectors | N-Female (50 Ohms) | |
| Dimensions (WxHxD) | 180 x 110 x 44 mm | |
nn
Engineering for Real-World Durability
nn
Beyond its electrical performance, the physical design of this dual band combiner is built to withstand harsh environments. With an IP 67 rating, it is completely protected against dust and can withstand temporary immersion in water, making it suitable for installations in rooftop cabinets, basements, or outdoor towers. The N-female connectors are industry standard for high-power applications, ensuring consistent and reliable connections. Furthermore, the inclusion of DC/AISG bypass capabilities (up to 3000 mA) allows for seamless integration with tower-mounted amplifiers and remote electrical tilt antennas, simplifying remote management.
nn
Conclusion: The Optimal Dual Band Combiner for Modern Networks
nn
As networks evolve to handle increasing data loads, the need for efficient, low-loss components becomes paramount. This 698-960/1710-2170MHz dual band combiner stands out as a comprehensive solution, combining the functions of an RF combiner and a duplexer combiner within a single, ruggedized housing. With its ultra-low insertion loss, high port isolation, and robust IP 67 enclosure, it ensures that your dual-band signals remain pure, powerful, and protected. For network operators and system integrators seeking to maximize antenna port efficiency while maintaining signal integrity, this professional dual band combiner is an investment in reliability and future-proof performance.
