Unleashing the Performance of the Dual Polarization Antenna for Modern Wireless Networks
nn

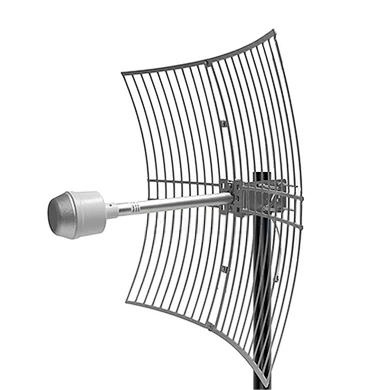

In the demanding world of outdoor wireless communication, the choice of antenna can make or break a network’s reliability. Enter the grid antenna—a specialized parabolic dish designed not just for strength, but for superior signal management in the harshest environments. Unlike solid dishes, its open-grid reflector offers a unique blend of high-gain, directional performance and exceptional resilience against wind. This makes the 5GHz outdoor antenna an indispensable tool for network engineers building long-distance point-to-point links, from rural broadband bridges to critical 5G backhaul.
nn
What truly sets this design apart is its implementation as a dual polarization antenna. This feature allows the antenna to transmit and receive on two polarizations—vertical and horizontal—simultaneously. The result is a dramatic increase in spectral efficiency, effectively doubling the data capacity of a single frequency channel without the need for additional spectrum licensing. For operators facing congested RF environments, this capability is a game-changer, enabling them to maximize throughput on existing infrastructure.
nn
Robust Engineering for Extreme Outdoor Conditions
nn
The physical design of this wireless network antenna is as impressive as its electrical performance. The grid structure is meticulously calculated to reflect radio waves with the precision of a solid dish, yet it presents a fraction of the wind load. This is a critical advantage for installations on towers, rooftops, or poles in areas prone to storms or high winds. The antenna’s aluminum construction is both durable and lightweight, and an anti-UV coating ensures it will not degrade under years of direct sunlight.
nn
From the Sahara’s blistering heat to the Andes’ freezing altitudes, this antenna is built to operate flawlessly. Its DC-grounded design provides inherent lightning protection, a vital safety feature for exposed outdoor equipment. The N-type female connector is a standard industry choice, known for its low signal loss and robust mechanical connection. All of this is housed in a compact form factor that is visually less obtrusive than solid dishes, a significant benefit for installations where aesthetic approval is required.
nn
Technical Specifications of the Dual Polarization Antenna
nn
To fully understand the capabilities of this wireless network antenna, it is essential to review its technical parameters. The following table details the specifications that define its performance and application versatility.
nn
| Parameter | Specification |
|---|---|
| Type | Rectangular Grid Antenna |
| Frequency (MHz) | 4400 – 5000 |
| Polarization | Dual Linear (Vertical & Horizontal) |
| Impedance (Ohm) | 50 |
| VSWR (:1) | 1.5 |
| Power Handling (CW) | 50 W |
| Gain (dBi) | 25 (min.) |
| Lightning Protection | DC Grounded |
| Operating Temp (°C) | –40 to +70 |
| Storage Temp (°C) | –40 to +90 |
| Forward Sidelobes Ratio (dB) | 0° to 90°: >15 90° to 180°: >20 |
| Connector | N Type Female |
| Weight (Kg) | 2 |
| Size (cm) | 60(W) x 60(H) x 41(D) max. |
| Finish | Anti-UV Coating |
| Mounting Type | Pole Mount |
| Material | Aluminum |
| Mounting Mast Diameter | 35-50 mm |
| Windload (N @ 150 km/h) | Front: 350 Side: 80 |
nn
Strategic Deployment in Professional Networks
nn
The 5GHz outdoor antenna is not a one-size-fits-all device; it is a precision instrument for specific, high-stakes applications. Its excellent front-to-back ratio and sidelobe suppression mean that it focuses energy exactly where it is needed, minimizing interference with other radio systems on the same tower or in the vicinity. This makes it ideal for crowded spectrum environments where signal discipline is paramount.
nn
For internet service providers (ISPs) delivering rural broadband, the dual polarization antenna allows for link architectures that are both high-capacity and cost-effective. In defense and public safety networks, its ruggedness, reliability, and spectral efficiency are non-negotiable. The antenna’s ability to withstand winds up to 150 km/h ensures that critical communication links remain operational during extreme weather events when they are most needed.
nn
Conclusion: The Future-Proof Choice for 5GHz Connectivity
nn
When the task is to create a reliable, high-performance wireless bridge over long distances, the grid antenna emerges as a clear leader. Its combination of high gain, wind resistance, and dual polarization antenna technology provides a unique solution for modern network challenges. Whether you are expanding a 5G network, bridging a digital divide, or securing a military communication link, this 5GHz outdoor antenna delivers the performance and durability required for mission-critical operations. It is a testament to intelligent engineering, proving that the best solutions are often those that elegantly balance multiple demands—performance, durability, and operational flexibility—into a single, cohesive design. This wireless network antenna is not just a component; it is the backbone of a robust and future-ready connectivity strategy.
