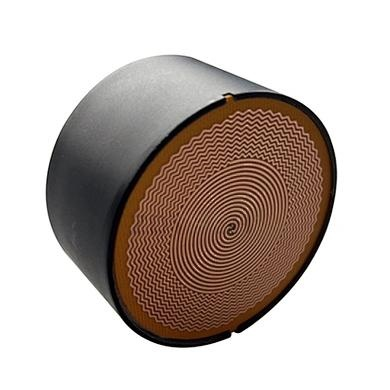

Introduction: Why the 1GHz~18GHz Planar Helical Antenna Is a Game-Changer
nnThe relentless evolution of modern wireless communication demands components that can handle an ever-expanding range of frequencies without sacrificing stability or reliability. Enter the 1GHz~18GHz Planar Helical Antenna, a powerhouse of versatility that bridges the gap between ultra-wide frequency coverage and consistent performance. As communication systems grow more complex—supporting everything from IoT networks to high-precision testing—the need for an antenna that adapts seamlessly to multiple scenarios becomes critical. This compact, robust solution stands out by offering exceptional gain, minimal signal loss, and a flexible design that fits both indoor and outdoor deployments. Whether you’re tackling multi-band signal congestion or aiming for interference-free transmission, this antenna has the tools to deliver. In this article, we’ll explore how its innovative features, including its role as a Multi-Band Gain Antenna and a Right-Handed Circular Polarization Antenna, make it a top choice for professionals.nn
Broadening Horizons with Multi-Band Gain Antenna Capabilities
nn
Unmatched Frequency Adaptability Across the Spectrum
nnAt the core of the 1GHz~18GHz Planar Helical Antenna lies its brilliance as a Multi-Band Gain Antenna. Unlike standard antennas that excel in narrow ranges, this design ensures reliable performance across three critical bands: from 1GHz to 18GHz. In the lower 1GHz~2GHz range, gain spans from -20dBi to -6dBi, providing a solid foundation for long-range, lower-frequency signals. Moving up to the 2GHz~6GHz band, gain improves to -6dBi to 2dBi, optimizing mid-range communication for applications like wireless networking and radar. At the high end—6GHz to 18GHz—the antenna achieves a sweeping 2dBi to 7dBi, perfect for data-intensive tasks like satellite links or high-speed IoT data streams. This multi-band versatility eliminates the need for multiple antennas, simplifying system architecture and reducing costs.nn
Precision Gain for Real-World Challenges
nnWhat truly sets this Multi-Band Gain Antenna apart is its ability to adapt gain to specific scenarios. In communication equipment R&D and testing, engineers require precise signal simulation across frequencies—this antenna delivers without recalibration. For industrial IoT systems, where high-frequency data must be transmitted with clarity, the gain structure combats band congestion and optimizes bandwidth use. The low VSWR of ≤2.5 further minimizes signal reflection, ensuring that power loss is negligible even in complex electromagnetic environments. In essence, the Multi-Band Gain Antenna characteristics transform the 1GHz~18GHz Planar Helical Antenna into a Swiss Army knife for modern wireless demands.nn
The Right-Handed Circular Polarization Antenna Advantage
nn
Cutting Through Interference with Circular Polarization
nnMultipath interference is a persistent enemy in high-frequency communication, often degrading signal quality in dense urban or industrial settings. The adoption of a Right-Handed Circular Polarization Antenna design directly addresses this issue. Unlike linear polarization, which can suffer from signal fading due to reflections, circular polarization waves maintain integrity regardless of orientation. This drastically reduces errors in data transmission, making the antenna ideal for precision applications like satellite communications or drone telemetry. In environments where clutter—metal surfaces, moving objects, or weather—threatens connectivity, the Right-Handed Circular Polarization Antenna ensures robust, stable links.nn
Enhancing Reliability in Harsh Conditions
nnThe Right-Handed Circular Polarization Antenna approach doesn’t just combat interference; it elevates overall system performance. In scenarios like outdoor long-range coverage or laboratory testing, where signal integrity is non-negotiable, this design keeps transmission quality high. Combined with a wide operating temperature range (-20°C to +55°C) and storage resilience (-20°C to +70°C), the antenna excels under stress. It’s a solution that professionals can trust, whether deployed in a dusty factory floor or a research facility with fluctuating climates.nn
Technical Specifications at a Glance
nnTo fully appreciate the 1GHz~18GHz Planar Helical Antenna’s engineering, here are its core parameters presented in a clean, readable format:nn| Parameter | Value |n|———–|——-|n| Frequency Range | 1GHz~18GHz |n| Standing Wave Ratio (VSWR) | ≤2.5 (typical) |n| Connector Type | SMA-50K |n| Gain (1GHz~2GHz) | -20dBi~-6dBi |n| Gain (2GHz~6GHz) | -6dBi~2dBi |n| Gain (6GHz~18GHz) | 2dBi~7dBi |n| Polarization Method | Right-handed Circular Polarization |n| Reference Dimensions | ≤100mm × 80mm × 35mm |n| Weight | ≤180g |n| Finish | Black (matte) |n| Antenna Cavity Material | Aluminum |n| Operating Temperature | -20°C~+55°C |n| Storage Temperature | -20°C~+70°C |nn
Practical Applications and Installation Flexibility
nnThe 1GHz~18GHz Planar Helical Antenna shines in real-world use, thanks to its compact form factor and thoughtful design. Measuring just 100mm×80mm×35mm and weighing only 180g, it’s unobtrusive enough for covert installations yet robust enough for industrial duty. The matte black finish blends into any environment, preserving aesthetics while delivering top-tier performance. Installation is a breeze: walls, brackets, or equipment surfaces all work without complex tools. The aluminum cavity material ensures longevity, resisting corrosion and physical wear over years of use. Whether it’s powering a multi-band signal simulation lab, enabling precise data transfer in IoT networks, or supporting long-range industrial monitoring, this antenna fills coverage gaps and boosts efficiency. It’s not just a component—it’s a strategic asset for tackling modern wireless communication hurdles.nn
Conclusion: A Versatile Solution for Tomorrow’s Networks
nnIn a world of increasing connectivity demands, the 1GHz~18GHz Planar Helical Antenna emerges as a standout performer. Its triple role as a Multi-Band Gain Antenna and a Right-Handed Circular Polarization Antenna provides unmatched adaptability, from low-frequency reliability to high-frequency precision. The technical specs confirm its prowess: wide bandwidth, low VSWR, and rugged temperature tolerance make it a dependable choice for professionals in testing, IoT, and industrial sectors. By combining these strengths with a compact, easy-to-mount design, this antenna doesn’t just meet current needs—it anticipates future challenges. For anyone seeking to optimize wireless communication, particularly in demanding environments, this antenna offers a high-quality, future-proof path forward.
