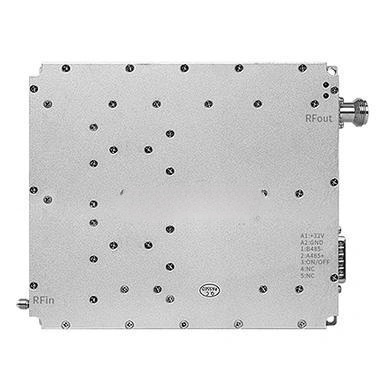

MOPTECH GaN 100W Module Power Amplifier: Redefining High-Performance Wireless Communication
nn
In the rapidly evolving landscape of wireless communications, the demand for robust, efficient, and adaptable signal amplification has never been greater. MOPTECH’s advanced GaN 100W module power amplifier rises to meet this challenge, offering a compelling blend of raw power, exceptional bandwidth, and intelligent design. This cutting-edge module is engineered to deliver outstanding performance across a vast frequency range, making it a versatile solution for applications from anti-drone systems to military communications and commercial infrastructure.
nn
At the heart of the MOPTECH amplifier lies its remarkable output capability. With a minimum saturated power of 49.0 dBm and a typical value reaching an impressive 50 dBm, the signal anti drone rf power amplifier module 100w ensures robust signal penetration and effective coverage, even in challenging environments. This level of power is critical for overcoming obstacles and maintaining clear, reliable links in congested or interference-prone settings. The module’s ultra-wideband operation from 2000 to 6000 MHz provides the flexibility needed to support multiple communication standards and frequencies without requiring hardware changes.
nn
Engineered for Durability and Environmental Resilience
nn
MOPTECH understands that real-world applications demand equipment that can withstand harsh conditions. The wide band 2-6g power amplifier module is designed to operate stably across a broad temperature range of -10°C to +55°C. This thermal resilience ensures consistent performance whether deployed in freezing climates or hot, arid environments. A key differentiator is the integrated temperature standing wave alarm function, which provides an essential safety net. When internal temperatures reach critical levels, the system automatically disconnects, safeguarding the 100w module power amplifier from thermal damage and significantly extending its operational lifespan. This proactive protection feature is vital for mission-critical applications where failure is not an option.
nn
Key Product Specifications
nn
| Item | Target | Remark |
|---|---|---|
| Frequency | 2000-6000 MHz | Ultra-wideband operation |
| Working Voltage | 28-32V, DC | Standard input range |
| Max Output Power | 50±1 dBm | Typical value |
| Working Current | ≤10A | @100W typical case |
| Controllable Output Power | 100W | ALC power regulation range ≥3dB |
| Gain | 50±1.0 dB | High linear gain |
| Intraband Fluctuation | ±2 dB | Peak to peak |
| Max Allowable Input | ≥+10 dBm | Lasts 1 minute without damage |
| Input VSWR | ≤1.50 | Low reflection |
| Working Environment Temperature | -10°C to +55°C | Low temperature start, monitoring normal |
| RF Input Connector | SMA-F | Compact and widely compatible |
| RF Output Connector | N-F | Robust and low-loss |
| DC Supply Connector | 7W2 | Secure power connection |
| Module Protection | Over temperature protection, VSWR protection | Automatic safety shutdown |
nn
Seamless Integration and Customization
nn
Simplifying system design is a priority for MOPTECH. The RF input uses a standard SMA female connector, while the output employs a durable N-type female connector. This connector combination streamlines integration into existing setups and improves compatibility with a wide array of antennas and transmission lines. Beyond standard specifications, the signal anti drone rf power amplifier module 100w can be tailored to meet specific bandwidth requirements. Whether for unique military frequency bands, specialized commercial protocols, or advanced research platforms, MOPTECH collaborates with customers to develop custom product and technical specifications. This commitment to personalization ensures that each module is optimized for its intended application, delivering maximum performance and value.
nn
Why Choose MOPTECH for Your Power Amplification Needs?
nn
The versatility of the wide band 2-6g power amplifier module makes it an exceptional choice across multiple sectors. In military settings, its high power and wide bandwidth support reliable communications and electronic warfare systems. For commercial applications, it enhances signal coverage for cellular networks, Wi-Fi, and IoT infrastructures. In scientific research, it provides the necessary amplification for experiments requiring precise signal control. MOPTECH stands behind its products with a comprehensive promise of after-sales support, including technical assistance, maintenance services, and product training. This dedication ensures that customers not only receive a high-quality module but also the ongoing support required for successful deployment and operation.
nn
Conclusion: Unmatched Performance and Reliability
nn
The MOPTECH GaN 100W module power amplifier represents a significant advancement in solid-state power amplification. Its combination of 100W output power, ultra-wideband frequency coverage, smart thermal protection, and robust construction makes it a premier choice for demanding communication systems. The signal anti drone rf power amplifier module 100w delivers the reliability and performance professionals need, backed by a team dedicated to customization and comprehensive service. If your project requires this level of capability or you have specific requirements not found in standard offerings, contact MOPTECH to explore how this powerful module can be adapted to your unique challenges. With top-tier specifications and a focus on customer success, MOPTECH is your partner for cutting-edge wireless solutions.
