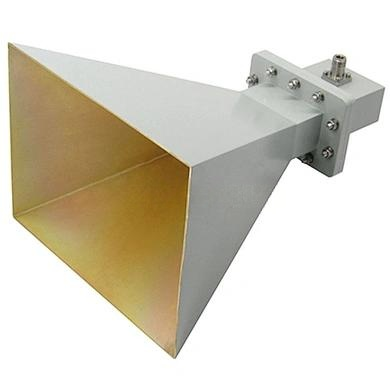

Unleashing Long-Range Communication: The MOPTECH Broadband Horn Antenna MOP-HA-1/2G-N
nnIn the demanding world of wireless communications, achieving clarity, reach, and reliability often hinges on the antenna. The MOPTECH MOP-HA-1/2G-N broadband horn antenna emerges as a powerhouse, engineered to bridge distances and overcome signal challenges. This isn’t just another antenna; it’s a solution crafted for professionals who require unwavering performance in frequencies from 1 to 2 GHz. From EMI testing to directional communication, its robust design and precision engineering make it an invaluable asset for advancing network capabilities.nn
Exceptional Gain and Pristine Signal Transmission
nnAt the core of this horn long range antenna lies a compelling blend of high gain and low signal loss. With a typical gain of 10dBi, the antenna actively boosts signal strength, allowing data to travel further without degradation. This characteristic is particularly critical for applications like reconnaissance and directional communication, where every decibel matters in maintaining a stable link over extended distances. The antenna’s low standing wave ratio (≤1.5:1 typical) further refines its performance by minimizing reflected energy. This reduction in signal reflection translates to more power being delivered to the intended target, enhancing overall transmission quality and system efficiency. By employing linear polarization, the MOP-HA-1/2G-N excels in environments requiring clear directionality, effectively suppressing interference from non-aligned sources.nn
Built for Demanding Environments: Power and Durability
nnReliability in harsh conditions is non-negotiable for critical communications. This broadband horn antenna is built to withstand extreme operational demands. It comfortably supports up to 300W of continuous wave power and can handle impressive peaks of 3000W, ensuring stable performance even under high-power application stress. To complement its electrical robustness, the antenna is constructed from lightweight, corrosion-resistant aluminum. This material choice ensures excellent resistance to weather and corrosion, making the unit suitable for both indoor and outdoor installations. Whether facing intense sun, rain, or freezing temperatures, this antenna maintains its integrity, significantly reducing long-term maintenance costs while ensuring trouble-free operation for operators across various climates.nn
Technical Specifications at a Glance
nnThe MOP-HA-1/2G-N is defined by a set of technical parameters that guarantee reliable operation across its intended frequency range. Below is the complete specification breakdown for this high-performance antenna.nn
| Parameter | Value |
|---|---|
| Module No. | MOP-HA-1/2G-N |
| Frequency Range | 1-2 GHz |
| Max. VSWR | ≤1.5 (typical) |
| Gain | 10 dB (typical) |
| Polarization | Linear |
| 3dB Beamwidth E Plane, Min | 29 degrees |
| 3dB Beamwidth E Plane, Max | 63 degrees |
| 3dB Beamwidth H Plane, Min | 29 degrees |
| 3dB Beamwidth H Plane, Max | 65 degrees |
| Cross-Polarization Isolation (Typical) | 35 dB |
| Impedance | 50 Ω |
| Connector | N-50K |
| Output Type | Coaxial |
| Random Color | Sea Grey |
| Basic Material | Aluminum |
| Net Weight | ≤5 kg |
| Operating Temperature | -50°C to +70°C |
| Storage Temperature | -55°C to +70°C |
| Single Gross Weight | ≤7.00 kg |
| Outer Dimensions (Diameter x Height) | Approx. 350 x 330 x 420 mm |
nn
Versatile Applications and Customization Potential
nnThe utility of this horn antenna in china extends across a diverse range of fields. Engineers and technicians rely on it for EMI detection, where its precise pattern and wide bandwidth are essential. It is a favorite in antenna gain and pattern measurement labs due to its stable and predictable performance. Moreover, its role in directional communication, reconnaissance, and monitoring makes it a cornerstone for secure and targeted data transmission. Acknowledging that regional operational needs vary, MOPTECH offers powerful customization services. Operators can collaborate closely with the manufacturer to tailor the horn antenna microwave solutions to their specific frequency requirements, ensuring optimal compatibility with local communication systems. This flexibility transforms a standard high-performance product into a perfect-fit solution for any project.nn
Conclusion: A Benchmark for the Communications Industry
nnThe MOPTECH broadband horn antenna MOP-HA-1/2G-N stands out as an ideal choice for the communications industry, merging exceptional electrical characteristics with rugged, durable construction. Its powerful gain, low VSWR, and high-power handling capability ensure robust performance across varied scenarios, from complex measurement tasks to long-range directional links. By combining this reliable hardware with the option for bespoke customization, MOPTECH empowers professionals to achieve superior signal integrity and operational longevity. For those seeking a proven, high-performing solution in the 1-2 GHz range, this horn long range antenna delivers the quality and consistency that modern communications demand.
