Unlocking New Potential in Wireless Communication with the Customized RF Duplexer
nnIn the intricate world of wireless communication, where every decibel and frequency matters, signal integrity is paramount. Whether managing a professional network or building a robust amateur radio station, the quality of your signal path can make or break your communication experience. This is where high-precision filtering components become essential. The Customized wireless telecommunication RF duplexer is engineered to meet these exacting demands, offering a tailored solution that brings clarity, stability, and reliability to your wireless operations.nn

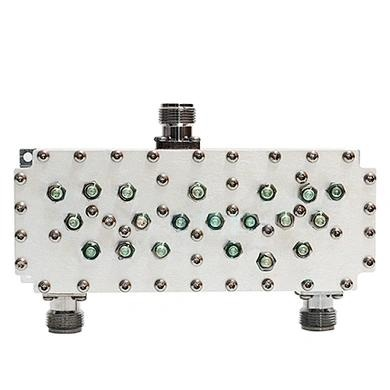

The Core Innovation: A Customized Wireless Telecommunication RF Duplexer
nnThis dedicated duplexer operates specifically within the 1200MHz frequency band, providing a critical separation between transmit and receive paths. With a transmit frequency of 1242.025MHz and a receive frequency of 1270.025MHz, it ensures that your signals are processed with surgical precision. Designed for seamless integration, this device is more than just a filter—it is a cornerstone for achieving optimal performance in both professional and hobbyist settings.nn
Exceptional Performance Metrics for Reliable Communication
nnThe engineering behind this component focuses on minimizing loss while maximizing isolation. The insertion loss is remarkably low at ≤1.0dB, meaning your transmitted power is used efficiently without wasteful signal degradation. Equally impressive is the isolation rating of ≥75dB, which effectively prevents the powerful transmission signal from bleeding into the sensitive receiver section. This high isolation is crucial for full-duplex communication, allowing you to transmit and receive simultaneously without interference or desensitization.nn
Technical Specifications in Detail
nnThe following table outlines the key parameters for the Customized wireless telecommunication RF duplexer, providing a clear and comprehensive view of its capabilities:nn| Parameter | Value |n| — | — |n| Frequency Range (MHz) – TX | 1242.025 |n| Frequency Range (MHz) – RX | 1270.025 |n| Insertion Loss (dB) | ≤1.0 |n| Isolation (dB) | ≥75 |n| Return Loss / VSWR | ≤-18dB / 1.3 |n| Impedance (Ω) | 50 |n| Maximum Input Power (W) | ≤50 (avg.) |n| Operation Temperature | -20°C to +50°C |n| Storage Temperature | -40°C to +85°C |n| Relative Humidity | 5% – 95% |n| Application | Indoor |n| Connectors | N-F (Female) |n| Dimensions (WxHxD, mm) | 140 x 55 x 35.5 |n| Weight | TBD |nn
Robust Environmental Tolerance
nnDesigned for reliability, this duplexer operates effectively across a broad temperature range of -20℃ to +50℃, making it suitable for controlled indoor environments like server rooms, radio shacks, or communication shelters. Its storage capability extends from -40℃ to +85℃, ensuring long-term durability even when not in active use. This resilience makes the Customized wireless telecommunication RF duplexer a dependable long-term investment.nn
Ease of Integration and Physical Design
nnThe unit features a standard 50Ω impedance design with N-Female connectors, which are widely recognized for their robustness and reliability in RF applications. This ensures a secure and low-loss connection to cables, antennas, or other equipment. The compact dimensions of 140x55x35.5mm allow for easy installation within existing equipment racks or enclosures, proving that powerful performance can come in a small package. Its lightweight and straightforward mounting design simplify field upgrades or new system builds.nn
Versatile Applications in Modern Communication
nnWhile its precise filtering is ideal for high-end professional networks like cellular repeaters or trunked radio systems, the Customized wireless telecommunication RF duplexer also excels in the amateur radio world. Hams (radio amateurs) experimenting with the 23cm band (1200MHz) will find this component invaluable for building efficient and interference-free repeaters or base stations. Its high isolation and low loss directly translate to better signal reports and a more enjoyable operating experience.nn
Conclusion: Elevate Your Wireless System Today
nnIn a field where precision is everything, having a component that delivers consistent, high-quality signal separation is non-negotiable. The Customized wireless telecommunication RF duplexer stands out as a prime choice for anyone serious about their wireless communication. With its blend of professional-grade performance, robust environmental specifications, and user-friendly design, it ensures that your transmissions are clear and your reception is pure. Whether you are a professional installer or an avid amateur radio operator, this duplexer is ready to become a trusted partner in your quest for flawless wireless connectivity.
