Upgrade Your Network with a High-Performance Base Station Antenna
nn
In the rapidly evolving landscape of telecommunications, ensuring robust and reliable wireless signal transmission is paramount. A high-performance base station antenna serves as the cornerstone of modern 4G networks and next-generation communication systems. This professional panel antenna is engineered to revolutionize signal coverage, delivering exceptional performance in both dense urban environments and sprawling suburban areas.
nn
Supporting a comprehensive frequency range of 700–2700MHz, this advanced base station antenna utilizes precise beamforming technology to achieve stable wireless signal distribution. This makes it an ideal solution for 4G network sector deployment, where consistent coverage and minimal interference are critical. With a sophisticated 4+6 port configuration and electrical tilt adjustment, the antenna delivers high gain up to 18±1 dB, low VSWR ≤1.5, and ±45° polarization. These features collectively improve 4G signal quality while significantly reducing interference, ensuring seamless connectivity even in high-traffic zones.
nn
Engineering Excellence in a Base Station Antenna
nn

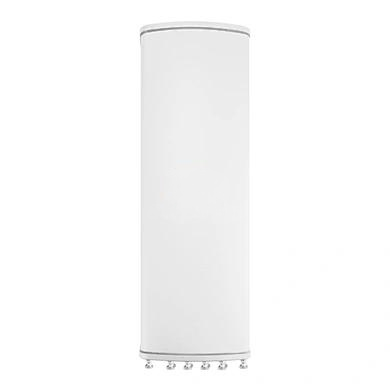

Designed for maximum durability, this panel antenna boasts a robust fiberglass radome that enables reliable outdoor operation under extreme temperatures and strong winds. Its high power handling capacity and low PIM performance guarantee consistent wireless signal stability, even during peak usage hours. The compact structure and standard connectors facilitate easy integration, allowing telecom operators to expand 4G coverage and upgrade modern wireless infrastructure efficiently. Whether deployed in a busy urban corridor or a suburban neighborhood, this base station antenna delivers unmatched reliability and performance.
nn
Key Performance Parameters of the Base Station Antenna
nn
| Parameter | 791–862 MHz | 880–960 MHz | 1710–1880 MHz | 1920–2170 MHz | 2500–2690 MHz |
|---|---|---|---|---|---|
| Gain (dBi) | 15±1 | 15±1 | 18±1 | 18±1 | 18±1 |
| Horizontal Beamwidth (°) | 67±5 | 63±5 | 68±5 | 65±5 | 60±5 |
| Vertical Beamwidth (°) | 12±1 | 10±1 | 5.5±0.5 | 4.7±0.5 | 3.5±0.5 |
| Electrical Downtilt (°) | 0–14 | 2–12 | |||
| VSWR | ≤1.5 | ||||
| Isolation (dB) | 26 | ||||
| Port Isolation (dB) | ≥25 | ||||
| Cross Polarization Ratio (dB) | ≥20 | ||||
| Upper Sidelobe Suppression (dB) | ≤-15 | ||||
| Front to Back Ratio (dB) | ≥25 | ||||
| Polarization | ±45° | ||||
| Average Power Capacity (W) | ≥250 | ≥250 | |||
| PIM (dBc) | ≥150 | ||||
| Second Order Reflection Intermodulation (dBm) | / | ||||
| Impedance (Ω) | 50 | ||||
| Connector | 10 × 7/16DIN Female | ||||
nn
Mechanical Specifications of the High-Performance Antenna
nn
| Parameter | Value |
|---|---|
| Size (mm) | ≤1800 × 450 × 150 |
| Package (mm) | ≤1900 × 490 × 200 |
| Antenna Weight (kg) | ≤30 |
| Mounting Bracket Weight (kg) | 5.6 |
| Mechanical Tilt Range (°) | 0–14 |
| Operating Temperature Range (°C) | -40 to +60 |
| Max Wind Speed (m/s) | 55 |
| Windward Area (m²) | ≤0.63 |
| Radome Material | Fiber Glass (FRP) |
| Installation Pole Diameter (mm) | Φ50–Φ110 |
nn
Conclusion: The Ultimate Base Station Antenna for Modern Deployments
nn
This high-performance base station antenna is engineered to meet the demands of today’s wireless networks. Its combination of advanced electrical specifications, durable mechanical design, and ease of integration makes it a top choice for telecom operators. Whether upgrading existing 4G networks or preparing for next-generation technologies, this base station antenna ensures consistent wireless signal stability, reduced interference, and expanded coverage. By selecting this base station antenna, you invest in a solution that delivers reliability, performance, and future-proof scalability—essential qualities for any modern communication infrastructure.
