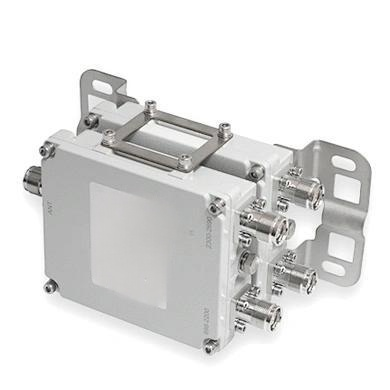

China Moneypro Double Unit Dual Band 698-2200 and 2300-2390MHz Combiner Diplexer with 4.3-10 female connector

Maximizing Signal Integrity with the Twin Dual Band High Band Diplexer

nnIn the rapidly evolving landscape of modern telecommunications, efficient signal management is not just a luxury—it’s a necessity. The Twin Dual Band High Band Diplexer emerges as a cornerstone component for engineers and system integrators who demand uncompromising performance in multi-band environments. This high-performance 2 way combiner and dual band combiner is meticulously engineered to handle two distinct frequency ranges—698-2200MHz and 2300-2690MHz—with exceptional precision and reliability. As an advanced RF combiner, it ensures that LTE networks, cellular infrastructure, and distributed antenna systems operate at peak efficiency, seamlessly integrating multiple signals without degradation.nnThe core challenge in any multi-band communication system is preventing signal interference while maintaining low loss. This frequency combiner addresses that challenge head-on with innovative engineering that balances performance with durability. Whether deployed in dense urban environments or remote outdoor installations, this dual band combiner delivers consistent, high-power signal combining or splitting with minimal compromise. Telecom operators and system integrators will find its robust specifications particularly valuable when designing networks that must support a wide array of services, from voice to high-speed data. Its ability to reduce intermodulation distortion to ≤-150dBc at 2×43dBm guarantees clean signal transmission, even under demanding high-power conditions, making it an indispensable tool for next-generation wireless systems.nn

Key Specifications and Performance Metrics

nnUnderstanding the technical capabilities of any RF component is critical for proper system design. The following table outlines the precise parameters that define the Twin Dual Band High Band Diplexer’s exceptional performance:nn

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

nn

Low Insertion Loss and Superior Isolation

nnOne of the most compelling features of this dual band combiner is its remarkably low insertion loss—≤0.5dB for the low band and ≤0.3dB for the high band. These figures directly translate into more efficient signal transmission, reducing the need for additional amplification and lowering overall system power consumption. Simultaneously, the isolation >50dB ensures that signals from different frequency bands do not interfere with each other, a critical requirement in dense spectrum environments. This combination of low loss and high isolation makes the Twin Dual Band High Band Diplexer an ideal RF combiner for base stations, repeaters, and wireless backhaul systems where every decibel counts.nn

Robust Environmental and Electrical Protection

nnDeployment in outdoor or harsh environments demands components that can withstand the elements. This 2 way combiner is rated with IP67 ingress protection, meaning it is completely protected against dust and can be submerged in water up to one meter for 30 minutes. Furthermore, the inclusion of 3kA lightning protection with a 10/350µs pulse waveform provides an additional layer of security against power surges, a common threat in tower-mounted installations. With a wide operating temperature range from -25°C to +65°C and relative humidity tolerance of 5% to 95%, this frequency combiner is engineered for long-term reliability in virtually any climate.nn

Engineering for Versatility and Durability

nnThe physical design of the Twin Dual Band High Band Diplexer reflects its purpose-built nature for modern telecom infrastructure. The rugged 4.3-10 female connectors offer low passive intermodulation (PIM) performance and secure mating, ensuring stable connections even under vibration or thermal stress. At just 2.5kg and with compact dimensions of 110×140×100mm, this dual band combiner is remarkably easy to integrate into existing racks or enclosures without burdening the physical framework. The DC/bypass pass-through functionality adds a layer of flexibility, allowing the device to be used in hybrid RF systems where power needs to be fed remotely.nnThe intermodulation performance of ≤-150dBc at 2×43dBm is particularly noteworthy. This low level of distortion means that even when handling high-power signals, the RF combiner maintains spectral purity, reducing the risk of interference with adjacent channels or services. For system integrators working on complex multi-operator networks, this level of performance is not just desirable—it is essential for compliance with regulatory standards and for delivering consistent quality of service to end users.nn

Conclusion: A Premier Choice for Multi-Band Management

nnIn conclusion, the Twin Dual Band High Band Diplexer represents a synthesis of advanced RF engineering and practical durability that meets the demanding requirements of contemporary wireless networks. As a high-performance dual band combiner and 2 way combiner, it excels in combining or splitting signals across two critical frequency bands with minimal loss and exceptional isolation. Its robust construction, comprehensive environmental protection, and flexible design make this RF combiner a trustworthy component for both new installations and system upgrades. Whether you are optimizing a cellular network, enhancing a DAS deployment, or building out wireless backhaul infrastructure, this frequency combiner delivers the reliability, performance, and longevity that telecom operators and system integrators demand. By choosing this diplexer, you are investing in a solution that ensures clean, efficient, and resilient signal management for years to come.
