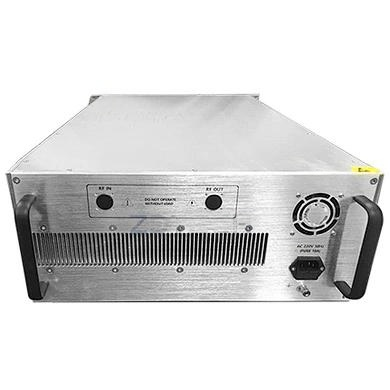

Unleashing Power and Precision: The 500W 100-500MHz Power Amplifier
nn
In the demanding world of RF engineering, reliability and performance are non-negotiable. The 500W 100-500MHz power amplifier emerges as a cornerstone for professionals requiring robust signal amplification across critical frequency bands. Whether you are designing for industrial, commercial, or military applications, this amplifier module delivers exceptional output power and sophisticated protection features to ensure consistent operation under the harshest conditions. This article dives deep into the technical specifications, customizable options, and safety systems that make this RF power amplifier module a versatile and dependable solution.
nn
Exceptional Performance Across Broad Frequencies
nn
This 500W 100-500MHz power amplifier is engineered to excel across a wide spectrum, supporting fundamental frequency ranges of 100-500 MHz, 500-2500 MHz, and 2500-6000 MHz. The device provides a saturated output power of 500W with a gain of at least 56 dB, enabling it to handle high-demand scenarios like electromagnetic compatibility (EMC) testing, communication jamming, or radar system boosting. The maximum input signal is limited to +5 dBm, ensuring safe operation while still delivering full gain. With in-band gain flatness maintained at ≤3±1 dB, the amplifier offers stable performance without signal distortion, a crucial factor in precision applications.
nn
Technical Specifications and Customization
nn
Customers are able to customize the 500W 100-500MHz power amplifier to fit specific scenario needs, optimizing performance for unique environments. Working frequency options can be tailored, and the module can be configured as a stand-alone power amplifier (PA) or integrated into a customer’s advanced system design. The modular building blocks from MOPTECH provide flexible and efficient solutions, supporting broadband and band-specific variants up to 6 GHz. All technical parameters are structured below in a clear, HTML table for easy reference:
nn
| Parameter | Value |
|---|---|
| Working Frequency | 100-500 / 500-2500 / 2500-6000 MHz |
| Gain | ≥56 dB |
| Maximum Input | ≤+5 dBm |
| Saturated Power Output | 500 W |
| In-Band Gain Flatness | ≤3±1 dB |
| Input Power | ≤2±2 W |
| Temperature Protection | ≥80°C protection, open circuit protection (LED light on front panel) |
| Input VSWR | ≤1.8 |
| Clutter Suppression | ≥65 dBc |
| Harmonic Suppression | ≤-11 dBc |
| Front Panel RF Input/Output | N-K type connector |
| Amplifier PTT Switch Port | Amplifier off by default, press button to turn on |
| Operating Voltage | ~220 V |
| Power Consumption | ≤1200 W (with air cooling) |
| Dimensions | ≤600×482×180 mm (without connector) |
| Operating Temperature | -25°C to +55°C |
nn
Advanced Protection and Control Features of the 500W 100-500MHz Power Amplifier
nn
Reliability in RF equipment goes beyond raw power, and the 500W 100-500MHz power amplifier integrates a comprehensive suite of protective mechanisms. The temperature protection system is activated when internal temperatures reach 80°C or higher, automatically disconnecting power and illuminating an LED indicator on the front panel. This prevents thermal damage and extends the lifespan of the module. Additionally, the voltage standing wave ratio (VSWR) is maintained below 1.8, minimizing reflections and protecting the amplifier from mismatched loads. Both input and output ports use durable N-type connectors (N-K), enhancing the rf power amplifier module’s reliability and ease of connection. A control switch (PTT port) allows the user to toggle the amplifier on and off, providing precise control over power output and safeguarding the unit during idle periods.
nn
Cooling and Environmental Resilience
nn
Operating at 220V, the power amplifier signal block module is equipped with an efficient air cooling system that keeps dissipation below 1200W. This thermal management solution ensures stable performance even during extended high-power sessions. The working temperature range of -25°C to +55°C guarantees the RF portable amplifier module can operate effectively in extreme environments, from arctic conditions to desert heat. The compact dimensions (600×482×180 mm) make it versatile for integration into rack-mounted systems or standalone enclosures.
nn
Versatile Applications and Custom Solutions
nn
This 500W 100-500MHz power amplifier is designed to meet the rigorous demands of industrial, commercial, and military sectors. Its modular design, combined with advanced protection and customizable options, makes it an ideal choice for applications such as EMC testing, communication platforms, and radar systems. MOPTECH’s module-level building blocks are fully self-contained, offering full-gain performance with easy RF and mechanical integration. Customers can customize the board modules according to their specific needs, and MOPTECH provides full support for personalized requirements. If you have any questions or require further information, please feel free to contact us for tailored solutions.
nn
Conclusion
nn
The 500W 100-500MHz power amplifier stands as a testament to engineering excellence, combining high output power, broad frequency coverage, and robust safety systems. With its customizable nature and comprehensive protection features, this RF power amplifier module delivers reliable performance in the most challenging environments. From its precise gain flatness to its durable N-type connectors and air cooling, every aspect is optimized for longevity and efficiency. Whether as a stand-alone unit or part of a larger system, the 500W 100-500MHz power amplifier is the trusted choice for professionals seeking uncompromised quality and flexibility in their RF solutions.
