Next-Generation LoRa Connectivity: Introducing the GaN 100W Digital LoRa Module
nn
The landscape of IoT and wireless communication is evolving rapidly, demanding solutions that offer both exceptional range and robust reliability. Enter the GaN 100W Digitalanti FPV 250-350MHz LoRa modules, a quantum leap in long-distance data transmission. This advanced LoRa module Digital is engineered to meet the most stringent requirements of modern industrial applications, providing a powerful combination of high-efficiency amplification and intelligent connectivity.
nn

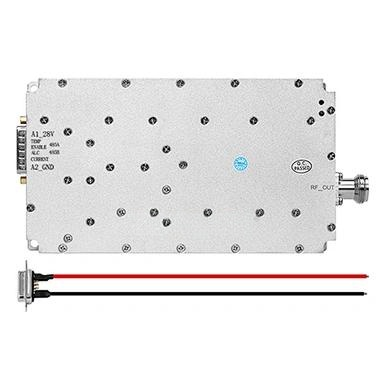

At the heart of this system lies a state-of-the-art Gallium Nitride (GaN) power amplifier, capable of delivering a staggering 100W of output power. This ensures that signals are not just transmitted, but driven with authority across challenging terrains and over vast distances. Operating within the versatile 250-350 MHz mid-band frequency spectrum, the GaN amplifier strikes an optimal balance between signal range and material penetration. This makes it an exceptional choice for applications where reliable, non-line-of-sight communication is critical.
nn
Technical Specifications of the RF High Power Amplifier
nn
To truly appreciate the capabilities of this LoRa module Digital, one must examine its core specifications. The table below details the key parameters that define its performance and reliability for professional deployments.
nn
| Parameter | Value / Specification |
|---|---|
| Model Number | MOP-PAL-250/350M-100W |
| Working Frequency | 250-350 MHz (Customizable) |
| Saturated Output Power | 50 ± 1 dBm |
| Gain | 50 ± 1 dBm |
| In-Band Fluctuation | ≤ 2.0 dB |
| Input VSWR | ≤ 1.5 |
| Gain Temperature Stability | ≤ ± 1.5 dB |
| Working Voltage | DC +28V |
| Working Current | ≤ 10A (at 50 dBm) |
| Out-of-Band Spurs (9kHz-1GHz) | ≤ -36 dBm / 30 kHz |
| Out-of-Band Spurs (1GHz-12.75GHz) | ≤ -30 dBm / 30 kHz |
| Output RF Port | N-Type Connector |
| Operating Temperature | -10 to +55 °C |
| Storage Temperature | -25 to +65 °C |
| Operating Humidity | 5 to 95% (Non-condensing) |
nn
Enhanced Geolocation and Sensing Capabilities
nn
This is not just a high-power radio; it is a sophisticated, multi-sensor platform. The LoRa module Digital integrates a low-power, high-sensitivity LoRa/(G)FSK half-duplex RF transceiver alongside the powerful GaN amplifier. This architecture allows for efficient, long-range data links while enabling advanced features. For geolocation and asset tracking, the module supports multi-constellation GNSS scanning. Furthermore, it is capable of passive Wi-Fi AP MAC address scanning, dramatically improving its ability to pinpoint and track assets in complex indoor and urban environments.
nn
Why Choose a GaN-Based LoRa GAN Module?
nn
The decision to use a LoRa GAN module over traditional solutions is driven by the need for performance, efficiency, and reliability. The GaN technology provides significant advantages:
n
- n
- High Efficiency: The module achieves high output power with a working current of ≤10A at 50dBm, making it an energy-efficient choice for remote, battery-backed systems.
- Superior Signal Quality: With a VSWR of ≤1.5 and excellent temperature stability, the module ensures consistent performance and minimal signal reflection, protecting the amplifier and maximizing data throughput.
- Robust Construction: The inclusion of N-type connectors provides a secure, weather-resistant antenna interface, which is crucial for permanent outdoor installations.
n
n
n
nn
Transformative Applications for IoT and Asset Management
nn
The unique combination of power and frequency makes this LoRa module Digital ideal for a wide range of professional applications. In supply chain management and logistics, its ability to penetrate warehouses, shipping containers, and urban infrastructure ensures that inventory and assets are never out of reach. For asset location and traceability, the long-range capability dramatically reduces the number of gateway devices needed, lowering overall infrastructure costs. Whether it is for tracking containers in a busy port, monitoring equipment in a sprawling mining operation, or managing inventory in a vast distribution center, this module provides the foundational communication link for a reliable IoT ecosystem.
nn
Conclusion: The Future of Long-Range IoT Communication
nn
In summary, the GaN-based LoRa GAN module operating in the 250-350 MHz frequency range represents a pinnacle of design for professional IoT and wireless communication systems. It successfully marries the raw power of a 100W GaN amplifier with the intelligence of a modern digital transceiver and advanced geolocation sensors. The result is a flexible, high-performance, and dependable solution that is perfectly suited for the most demanding tracking and telemetry applications. By choosing this module, system integrators and IoT developers are investing in a future-proof technology that delivers unmatched coverage, reliability, and efficiency.
