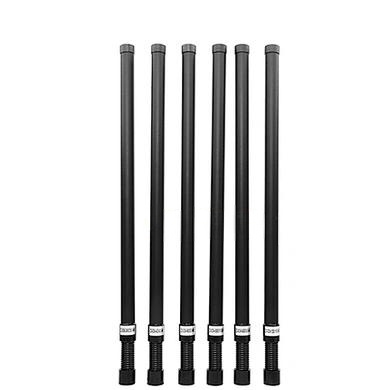

Unlocking Reliable Connectivity with the Spring Omnidirectional Antenna
In the ever-evolving landscape of wireless communication, the need for a resilient and high-performing antenna has never been greater. The spring omnidirectional antenna emerges as a sophisticated solution, engineered to deliver precise and reliable signal enhancement across a vast spectrum of frequencies. Whether you are deploying telecommunications infrastructure, maintaining surveillance networks, or supporting complex wireless systems, this antenna is designed to meet the rigorous demands of modern connectivity.
At its core, the 5g omnidirectional antenna is a marvel of engineering, offering both omnidirectional and directional capabilities to ensure optimal performance in a variety of applications. Its versatility is one of its strongest assets, providing consistent signal coverage without the need for constant realignment. This makes it an ideal choice for environments where devices are in motion or where signal sources are unpredictable.
Key Features of the High Gain Omnidirectional Spring Antenna
The high gain omnidirectional antenna with spring construction is built for durability and efficiency. Its robust design is not just about signal performance; it’s about longevity and reliability under pressure. The antenna maintains a low Voltage Standing Wave Ratio (VSWR) of ≤2.0, which is crucial for minimizing signal loss and ensuring efficient power transmission. This low VSWR translates directly to better performance, reducing the risk of interference and signal degradation.
Additionally, with a standard impedance of 50 ohms, this antenna integrates seamlessly with a wide range of systems, from base stations to repeaters. The high gain of 7±1dBi, combined with vertical polarization, significantly enhances signal strength and coverage area, allowing for stronger connections over longer distances. Support for a maximum power input of 100 watts ensures that the antenna can handle demanding transmission environments without compromising performance.
Robust Construction for Harsh Environments
The 5g omnidirectional antenna is designed to withstand the elements, operating effectively within a temperature range of -30°C to 80°C and a humidity range of 5% to 95%. This resilience makes it suitable for outdoor installations, from arid deserts to humid coastal regions. The spring design itself adds a layer of flexibility, allowing the antenna to absorb physical stress and return to its original shape, thereby extending its operational life.
Integrated lightning protection measures further enhance safety by providing a direct path for electrical surges to ground, protecting sensitive equipment from damage. The antenna is equipped with a standard N-type male connector and a nut mounting system, facilitating easy and secure installation. Its lightweight construction, weighing only 0.5kg, ensures that handling and mounting are straightforward, even in challenging locations.
The Versatility of the Omnidirectional Antenna with Spring Design
The omnidirectional antenna with spring is not just a component; it is a system enabler. Its ability to operate across multiple frequency bands—including 400-500MHz, 500-600MHz, 600-700MHz, 700-850MHz, 850-1000MHz, 1000-1150MHz, 1150-1300MHz, 2400-2500MHz, 5150-5350MHz, and 5700-5900MHz—makes it a truly universal solution. Whether you are scaling up a 5G network or reinforcing an existing Wi-Fi infrastructure, this antenna adapts to your needs.
Technical Specifications
Below are the detailed specifications for the spring omnidirectional antenna, presented in a clear and structured format for easy reference.
| Parameter | Value |
|---|---|
| Frequency Range | 400-500 / 500-600 / 600-700 / 700-850 / 850-1000 / 1000-1150 / 1150-1300 / 2400-2500 / 5150-5350 / 5700-5900 MHz |
| Impedance | 50 Ohm |
| VSWR | ≤2.0 |
| Gain | 7±1 dBi |
| Polarization | Vertical |
| Maximum Power Input | 100 W |
| Lightning Protection | DC Ground |
| Connector | N-Male |
| Weight | 0.5 kg |
| Length | 65 cm |
| Color | Black |
| Material | Fiberglass |
| Operational Temperature | -30°C to 80°C |
| Storage Temperature | -30°C to 80°C |
| Operational Humidity | 5% to 95% |
Enhancing Signal Protection and Installation Ease
The black broadband spring omnidirectional antenna is designed with the end-user in mind. Integrated lightning protection not only meets safety standards but also adds a layer of security to your entire network. The N-type male connector is a industry-standard choice, known for its reliability and ruggedness, ensuring that your connections remain stable even in high-vibration environments.
The nut installation process is straightforward, requiring minimal tools and time. This ease of installation, combined with the antenna’s lightweight fiberglass construction, reduces labor costs and speeds up deployment. Whether mounted on a mast, pole, or building structure, the antenna’s spring mechanism provides the necessary flexibility to withstand wind and physical impacts.
Conclusion: A Reliable Solution for Modern Networks
In today’s connected world, the demand for a dependable spring omnidirectional antenna is more critical than ever. This 5g omnidirectional antenna stands out as a high-performance solution, offering wide frequency coverage, robust construction, and ease of installation. Its low VSWR, high gain, and comprehensive lightning protection ensure that your network remains efficient, safe, and resilient.
Whether you are supporting telecommunications, enhancing surveillance systems, or building cutting-edge wireless communication networks, this antenna delivers the consistent, reliable signal enhancement you need. Invest in the future of connectivity with the spring omnidirectional antenna—a smart, durable, and versatile choice for every application.
