Unleashing the Power of Wireless: The RF Power Amplifier Module 200W
nnIn today’s digital age, wireless communications are the backbone of modern connectivity, and at the heart of every efficient system lies an exceptional RF module. MOPTECH addresses the growing demand for high-performance solutions with its latest innovation: the RF power amplifier module 200W. Engineered for the 5725 to 5850 MHz frequency range, this module delivers a robust 200 watts of output power, ensuring superior signal integrity across demanding environments. More than just raw power, the RF power amplifier module 200W offers precise control at every frequency point, optimizing transmission quality and minimizing signal attenuation. This level of accuracy transforms wireless performance, making communications more stable, reliable, and efficient than ever before. Whether deployed in urban infrastructure or industrial automation, this module sets a new standard for high-power amplification.nn
Precision and Control: The Core of the RF Power Amplifier Module 200W
nnThe standout feature of this RF power amplifier module 200W is its intelligent power management. Utilizing advanced Automatic Level Control (ALC) technology, the module begins regulating power at 10dB input, maintaining output fluctuations within a tight 2dB envelope around the maximum power level. With an ALC control range exceeding 20dB, this system adapts seamlessly to varying loads and environmental conditions. This ensures stable signal transmission in complex scenarios, such as dense urban high-rises or fluctuating industrial sites. The result is a high power amplifier module that doesn’t just boost signals—it optimizes them in real time, reducing interference and enhancing overall network reliability.nn
Intelligent Monitoring and Seamless Integration

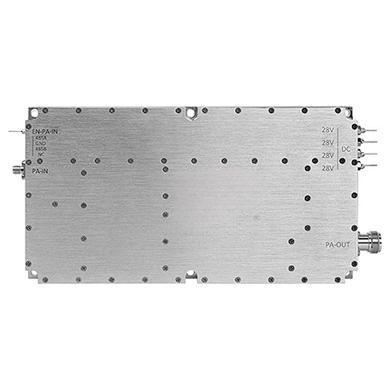

nnBeyond raw performance, the RF power amplifier module 200W excels in usability and maintainability. It supports comprehensive monitoring and operation functions, allowing users to query and configure parameters effortlessly. Real-time device status updates simplify troubleshooting and reduce operational costs. The module’s design incorporates industry-standard SMA input and N-type output interfaces, enabling smooth integration with existing RF systems. Its compact dimensions (22 x 11.8 x 2.5 cm without connectors) and lightweight build (1.2 kg net weight) make installation flexible, whether in tight equipment racks or remote field deployments. This blend of intelligence and practicality ensures the RF power amplifier module 200W is as easy to manage as it is powerful.nn
Technical Specifications of the RF Power Amplifier Module 200W
nnAll critical specifications for this module are detailed below in an organized table for quick reference:nn| Parameter | Value | Remark |n|————|——-|——–|n| Frequency range | 5725–5850 MHz | Full operational band |n| Output power | 200W | Maximum continuous power |n| Maximum output power (dBm) | 53 ± 1.5 | 5725 MHz @ 51.2 dBm; 5800 MHz @ 51 dBm; 5850 MHz @ 50.4 dBm |n| Automatic Level Control (ALC) | Starts at 10 dB input; output kept within 2 dB of maximum | Ensures stability under variable conditions |n| ALC control range (dB) | ≥ 20 | Wide dynamic control |n| Maximum gain (dB) | 57 ± 3 | High amplification efficiency |n| Maximum input power (dBm) | +10 | Safe operating limit |n| VSWR | ≤ 1.5 | Low reflection |n| Monitoring operation | Query and configuration functions | Real-time device management |n| Working voltage (V) | 28–32 | Standard DC input |n| Working current (A) | ≤ 20 (single tone full power) | 16.1 A @ 5725 MHz @ 51.2 dBm; 14.1 A @ 5800 MHz @ 51 dBm; 13.4 A @ 5850 MHz @ 50.4 dBm |n| Working environment temperature (°C) | –20 to +55 | Wide thermal tolerance |n| RF input connector | SMA | Industry standard |n| RF output connector | N type | Durable and reliable |n| Dimensions (without connector) | 22 x 11.8 x 2.5 cm | Compact footprint |n| Packing size | 27.5 x 17 x 2.5 cm | Easy shipping and handling |n| Net weight | 1.2 kg | Lightweight for deployment |nn
Conclusion: Elevate Your Wireless Systems with the RF Power Amplifier Module 200W
nnThe MOPTECH RF power amplifier module 200W represents a leap forward in high-power wireless solutions. With its precise ALC control, broad frequency coverage from 5725 to 5850 MHz, and comprehensive monitoring capabilities, it delivers unmatched reliability and efficiency. The module’s robust construction, low VSWR, and flexible integration options make it ideal for urban communications, industrial automation, and beyond. For engineers and system integrators seeking a high power amplifier module that balances performance with practicality, this is the definitive choice. Embrace superior signal quality and operational simplicity—choose the RF power amplifier module 200W for your next critical project.
