Mastering RF Interference: The 100W 5725-5850MHz RF Power Amplifier
n
In the dynamic field of modern RF signal management and electromagnetic environment control, achieving effective signal suppression and precise spectrum regulation depends on a robust and high-performance amplifier. The 100W 5725-5850MHz RF power amplifier emerges as a critical component, engineered for high-power, stable signal amplification. Whether deployed in RF interference systems or spectrum management networks, this compact module offers the reliability and efficiency demanded by complex applications. Combining a lightweight design with formidable output, it ensures consistent performance in challenging electromagnetic scenarios, making it an ideal solution for both fixed and portable systems.
n
This advanced amplifier operates across the 5725-5850MHz frequency band, delivering a saturated output power of 50±1dBm (100W) with a high gain of 50±2dB. Its technical specifications are carefully balanced to minimize signal distortion while maximizing efficiency. For instance, the in-band ripple is maintained at ≤2.0dB, and out-of-band spurious emissions are kept exceptionally low, ensuring clean amplification without unwanted interference. Input VSWR is ≤1.5, and gain temperature stability is rated at ≤±1.5dB, guaranteeing reliable continuous operation even in harsh environmental conditions. This level of precision is crucial for maintaining signal integrity in mission-critical applications.
nn
Detailed Technical Specifications of the RF Power Amplifier
n
| Parameter | Value |
|---|---|
| Working Frequency | 5725 – 5850 MHz |
| Saturated Output Power | 50 ± 1 dBm (100W) |
| Gain | 50 ± 2 dB |
| In-band Fluctuation (Ripple) | ≤ 2.0 dB |
| Out-of-band Spurious | 9kHz – 1GHz: ≤ -36 dBm/30kHz 1GHz – 12.75GHz: ≤ -30 dBm/30kHz |
| Input VSWR | ≤ 1.5 |
| Gain Temperature Stability | ≤ ± 1.5 dB |
| Working Voltage | DC +32V |
| Working Current | ≤ 8 A |
| Dimensions (L × W × H) | 170 × 94 × 26.5 mm |
| Output RF Port | N-F |
| Working Temperature | -10°C to +55°C |
nn
Robust Design and Monitoring of the RF Power Amplifier
n

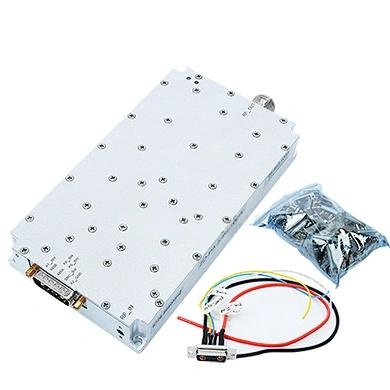

The physical design of this 100W RF power amplifier reflects its purpose. With dimensions of only 170×94×26.5mm, it offers exceptional integrability for space-constrained systems. The compact footprint does not compromise its ruggedness; the unit is built to handle the demands of continuous high-power operation. A standard DC+32V supply and a maximum operating current of ≤8A simplify power integration. The amplifier also includes a comprehensive monitoring interface via a 7W2 power seat, providing real-time data on power status, temperature alarms, and VSWR levels. This ensures operators can maintain optimal performance and quickly address potential issues, such as antenna mismatch or thermal overload.
n
For those requiring a high-performance amplifier for RF interference systems, this module processes signals with minimal distortion. The low in-band ripple and tight control over out-of-band spurious emissions allow it to operate effectively within crowded spectrum environments. The gain temperature stability specification of ≤±1.5dB means that output performance remains consistent across varying ambient temperatures, from -10°C to +55°C. This reliability is a key differentiator, making the amplifier a trustworthy choice for both portable field units and permanent installation in base stations or test labs.
nn
Applications and Versatility of the RF Power Amplifier
n
The 100W 5725-5850MHz RF power amplifier is designed for versatility across multiple applications. Its primary role in signal suppression and spectrum regulation is supported by its high linearity and stable output. In addition to RF interference mitigation, it can be used in communication system testing, point-to-point links, and radar subsystem validation. The inclusion of an N-type RF port ensures compatibility with standard high-power cabling and antennas. The compact size allows it to be mounted directly into larger assemblies, reducing the need for extensive cabling and minimizing signal loss.
n
When selecting an amplifier for demanding electromagnetic environments, the combination of high output power, robust gain, and intelligent monitoring makes this model a superior choice. Its performance parameters, including the ≤1.5 input VSWR and comprehensive alarm system, protect both the amplifier and the downstream equipment. By integrating this module, engineers can achieve reliable, high-power signal amplification with confidence. The RF power amplifier not only meets but exceeds the requirements for modern RF interference systems, ensuring effective control and regulation of the electromagnetic spectrum.
