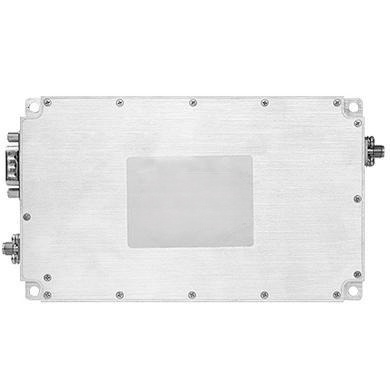

Redefining High-Power RF Amplification: Unleashing the 25W Pulsed Integrated Module
nnIn today’s demanding RF landscape, the need for compact, rugged, and intelligent amplification has never been greater. The 25W 4-8GHz device redefines what’s possible in a high power pulsed integrated module, delivering exceptional performance for systems that require seamless integration with digital RF modulators. This module stands as more than just an amplifier; it is a comprehensive, self-monitoring solution designed for the most challenging pulsed and CW applications. By merging high-efficiency power amplification with adaptive protection and digital communication, this module provides a new benchmark for reliability and signal integrity.nn
Key Performance Specifications: A Closer Look at the Module’s Capabilities
nnThe core of this high power pulsed integrated module lies in its outstanding electrical characteristics. It intelligently handles an input pulse width range from 50ns up to continuous wave (CW) operation, all while requiring a minimal RF input drive of 0-3dBm. This flexibility ensures compatibility with diverse signal formats from a digital RF modulator. When measuring high power performance, the module delivers a robust saturated output power of 44±1dBm (approximately 25W), with a flatness at Psat of ±2dB Max. This tight control ensures consistent power delivery across the entire 4-8GHz band. Signal purity is paramount, with second harmonics suppressed to >10dBc and non-harmonics spurious signals maintained at >60dBc. Furthermore, the input and output VSWR are both optimized, and the input/output impedance is a standard 50-ohm interface for seamless system integration.nn
Detailed Electrical Output and Signal Characteristics
nn
| Parameter | Value / Specification |
|---|---|
| Frequency Range | 4 – 8 GHz |
| Input Signal Type | CW & Pulsed |
| Input Pulse Width Range | 50 ns to CW |
| RF Input Drive | 0 – 3 dBm |
| Saturated Output Power | 44 ± 1 dBm |
| Flatness @ Psat | ±2 dB Max |
| Gain Flatness | ±2 dB Max |
| Second Harmonics @ Max. Power | >10 dBc |
| Non-Harmonics Spurious @ Max. Power | >60 dBc |
| Input VSWR | 1.5:1 Typ. |
| Output VSWR | 1.5:1 Typ. |
| Input/Output Impedances | 50 Ohm |
| Output Power ON/OFF Time | TTL 0 / 3.3V |
nn
Integrated Protections and Intelligent Monitoring
nnThis high power pulsed integrated module does not merely amplify; it actively safeguards itself and the overall system. Through a suite of comprehensive protection features, the module ensures operational longevity and reduces the risk of failure. The reverse polarity protection prevents damage from incorrect power connections. An over-temperature protection circuit monitors the internal temperature; when it exceeds 85°C, the amplifier power automatically shuts off, and it will only power back on once the temperature drops below 65°C. Similarly, an over/undervoltage protection disables the module if the voltage rises above 36V or falls below 24V, while an overcurrent protection circuit cuts power if the current exceeds 10A. This intelligent monitoring is further extended via RS485 communication, which allows for real-time tracking of temperature and current data.nn
Operational Requirements and Physical Specifications
nnTo achieve its performance, the module operates at a typical voltage of 28V and draws 3.2A. The power ON/OFF function is controlled externally via a TTL signal (0/3.3V), with the default state set to 3.3V (power on). The physical design is exceptionally rugged, with dimensions not exceeding 120±0.5mm x 80±0.5mm x 20±0.5mm and a weight of less than 1kg. Its operational temperature range extends from -40°C to +60°C, making it suitable for use in extreme environments. The RS485 communication model further enables system-level integration and remote diagnostics.nn
Environmental and Mechanical Profile
nn
| Parameter | Value |
|---|---|
| Operating Voltage | 28V / 3.2A |
| Dimensions (Max.) | 120±0.5mm × 80±0.5mm × 20±0.5mm |
| Weight | ≤ 1 kg |
| Operating Temperature | -40°C to +60°C |
| Communication Model | RS485 serial communication |
nn
Conclusion: The Ultimate Solution for Modern Pulsed Systems
nnIn conclusion, the high power pulsed integrated module represents a significant advancement in solid-state power amplification. By combining a wide frequency range, robust power delivery, and meticulous signal purity with an integrated suite of intelligent protections and digital monitoring, it is the ideal choice for developers and engineers working with digital RF modulators. This device simplifies system design, improves reliability, and ensures consistent high performance under demanding conditions. Whether for radar, communications, or testing applications, this module provides the power, control, and resilience required for today’s cutting-edge RF systems.
